HJA261001 - Square D PowerPact H 100A 2-Pole 600VAC/250VDC I-Line Molded Case Circuit Breaker, 25kAIC, Thermal Magnetic Trip, UL/CSA/CE

HJA261001

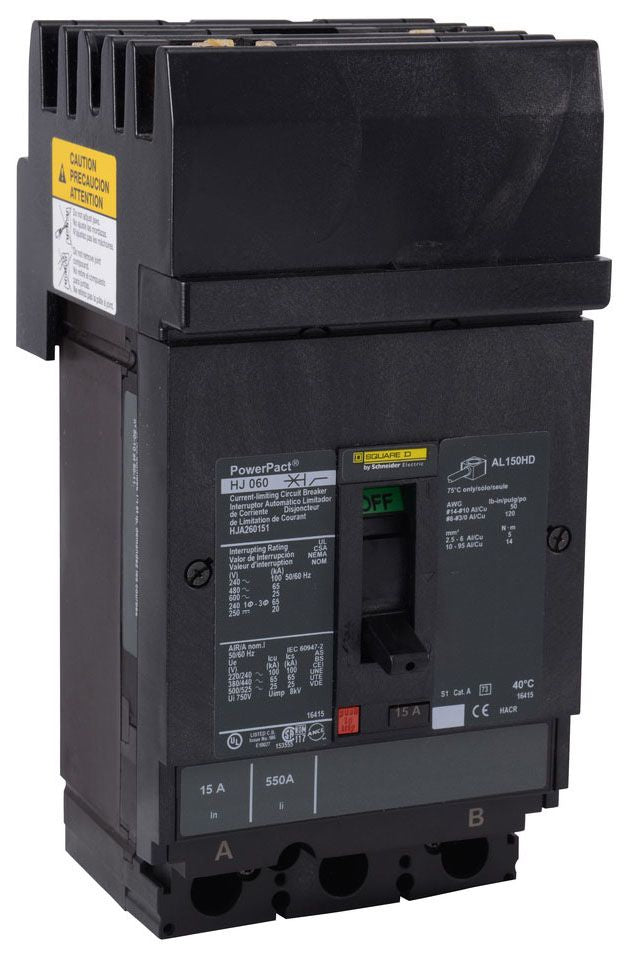

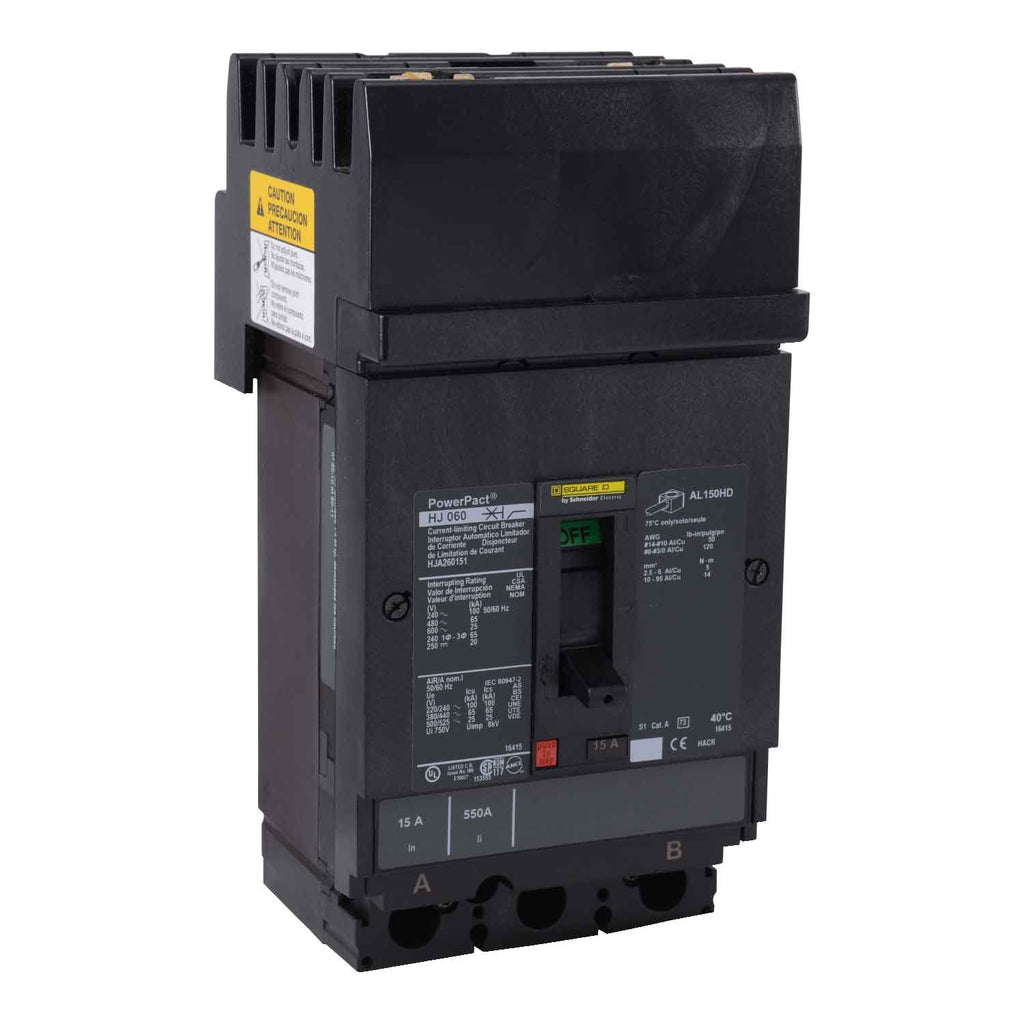

HJA261001 is a Square D PowerPact H series, 2-pole, 100A molded case circuit breaker designed for robust electrical protection in commercial and industrial applications.

This thermal magnetic trip circuit breaker features an I-Line plug-in mounting style, 600VAC/250VDC voltage rating, and a high interrupting capacity of 25kA at 600VAC. It is mercury-free, PVC-free, and suitable for use with both copper and aluminum conductors (AWG 14 to 3/0). The HJA261001 is ideal for panelboard and switchboard installations requiring reliable overload and short circuit protection.

Key Specifications
• Amperage: 100A
• Voltage: 600VAC, 250VDC
• Poles: 2
• Mounting Type: I-Line bracket, panel
• Interrupt Rating: 25kA at 600VAC, 65kA at 480VAC, 100kA at 240VAC, 20kA at 250VDC
• Series/Frame: PowerPact H, HJA frame
• Trip Unit: Thermal magnetic (long time and instantaneous)
• Certifications: UL, CSA, CE, NEMA, NOM, IEC, NMX, CCC, RoHS, REACh, HACR
• Connection: I-Line style plug-in, load side lug
• Wire Range: AWG 14 to 3/0 Cu/Al
• Temperature Rating: -25 to 70 °C
• Actuator: Toggle

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HJA261001
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJA
• Voltage : 600
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : AB

Product Data

• UPC : 785901430582
• GTIN : 00785901430582
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.999
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
