Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HHLXD63B450

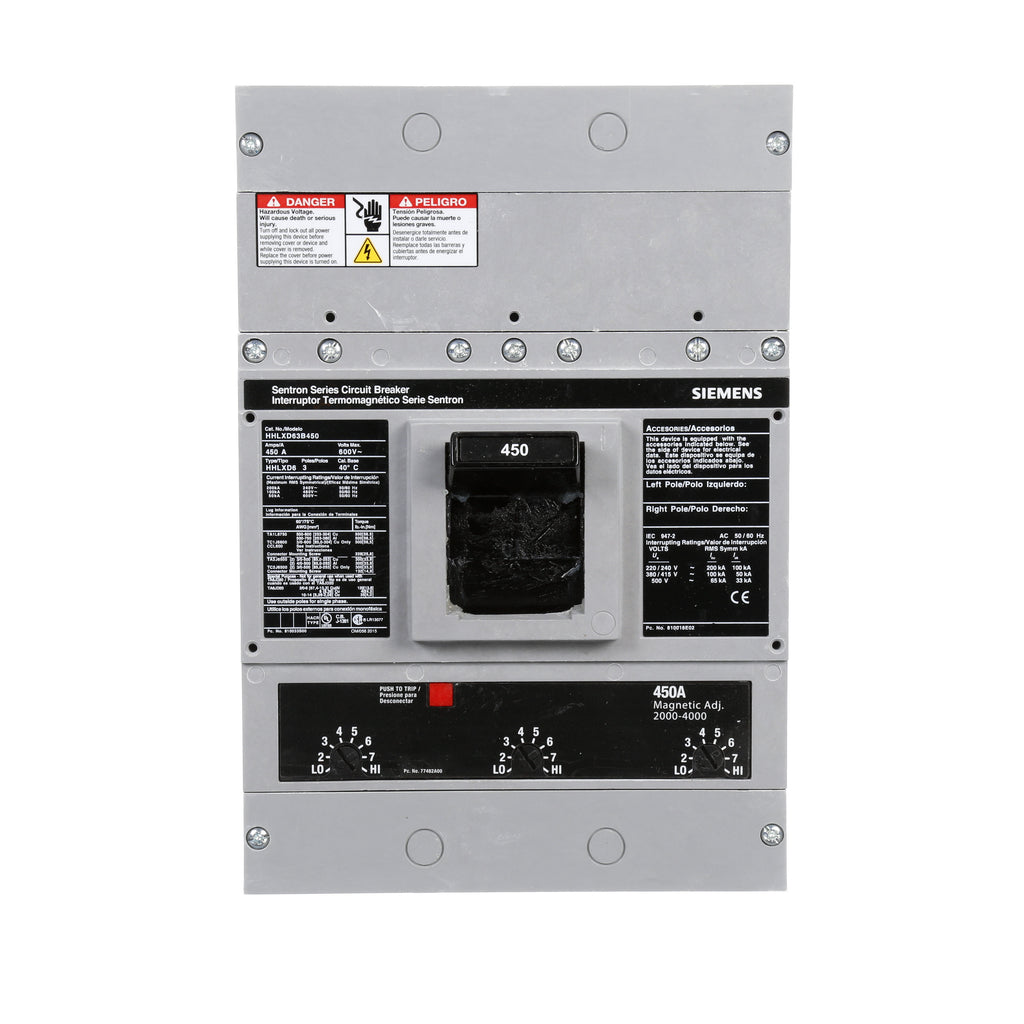

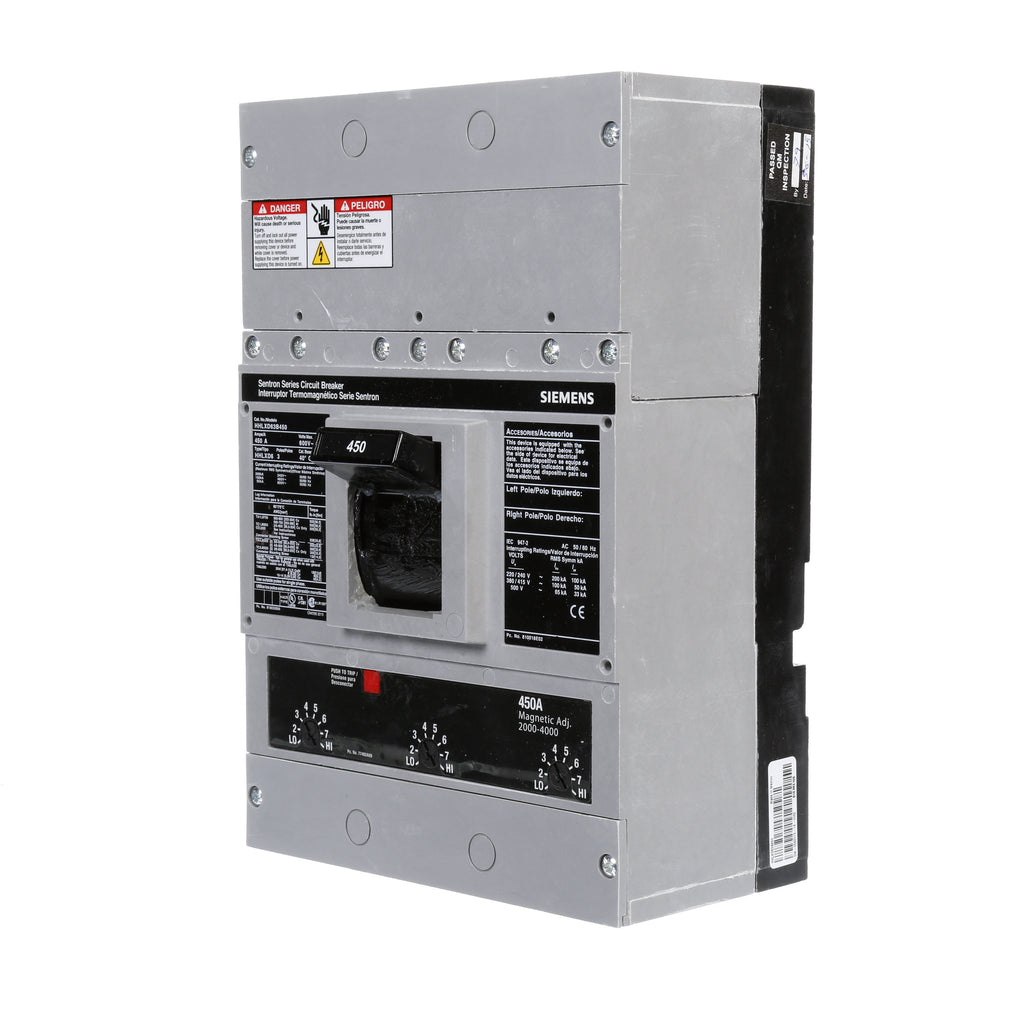

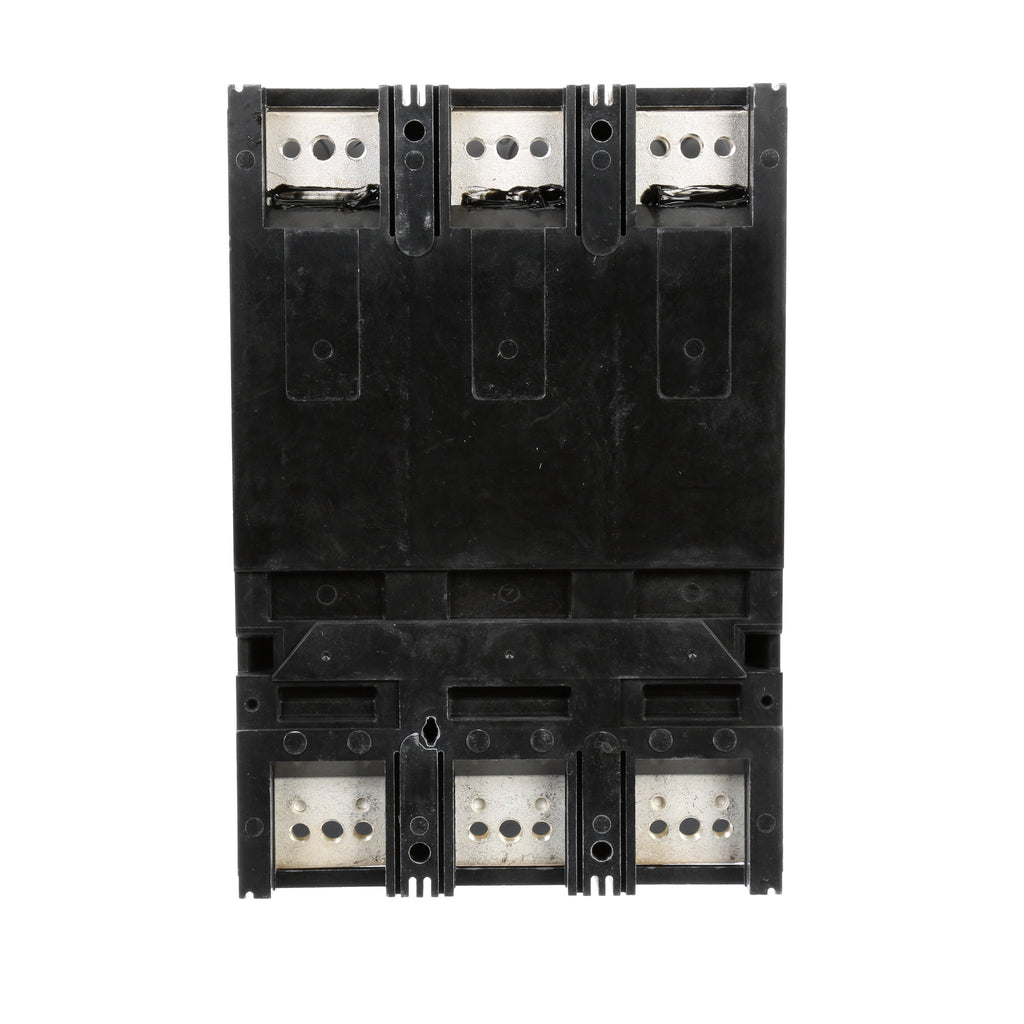

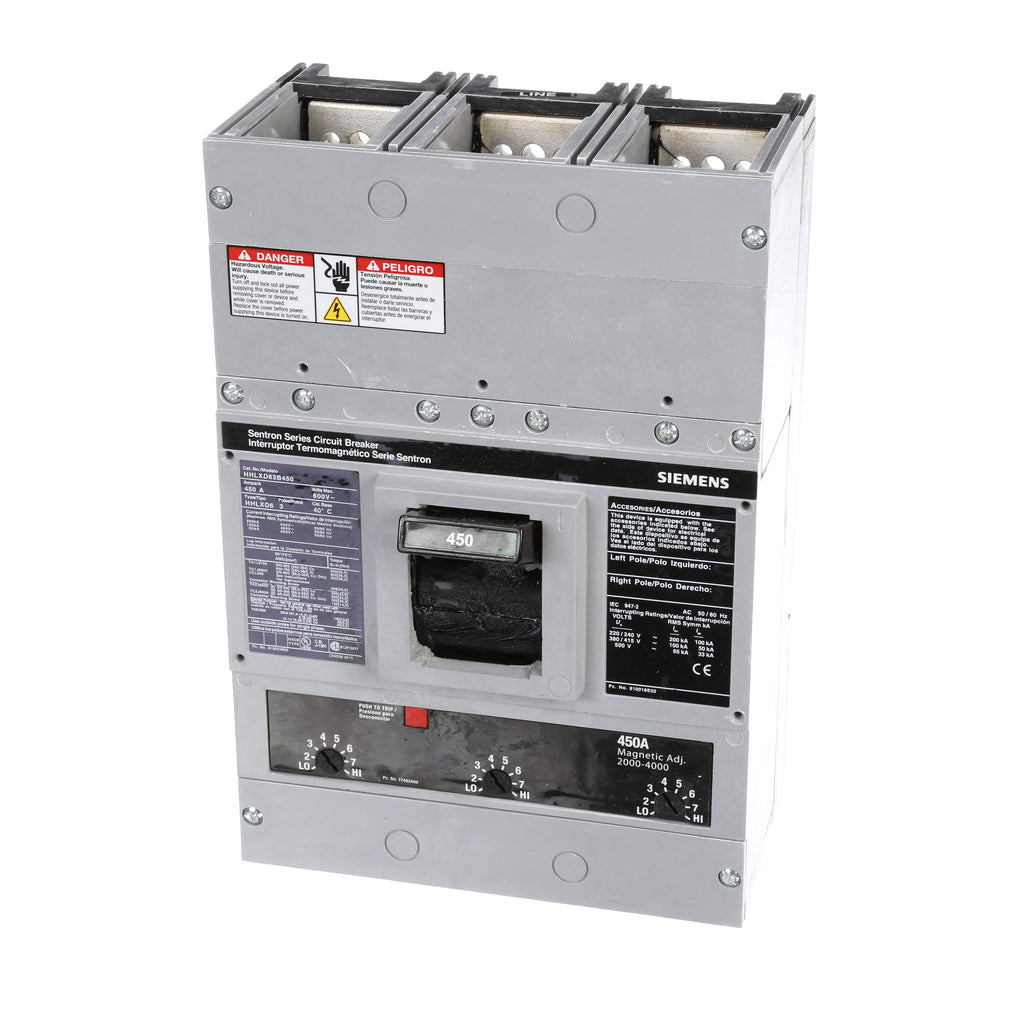

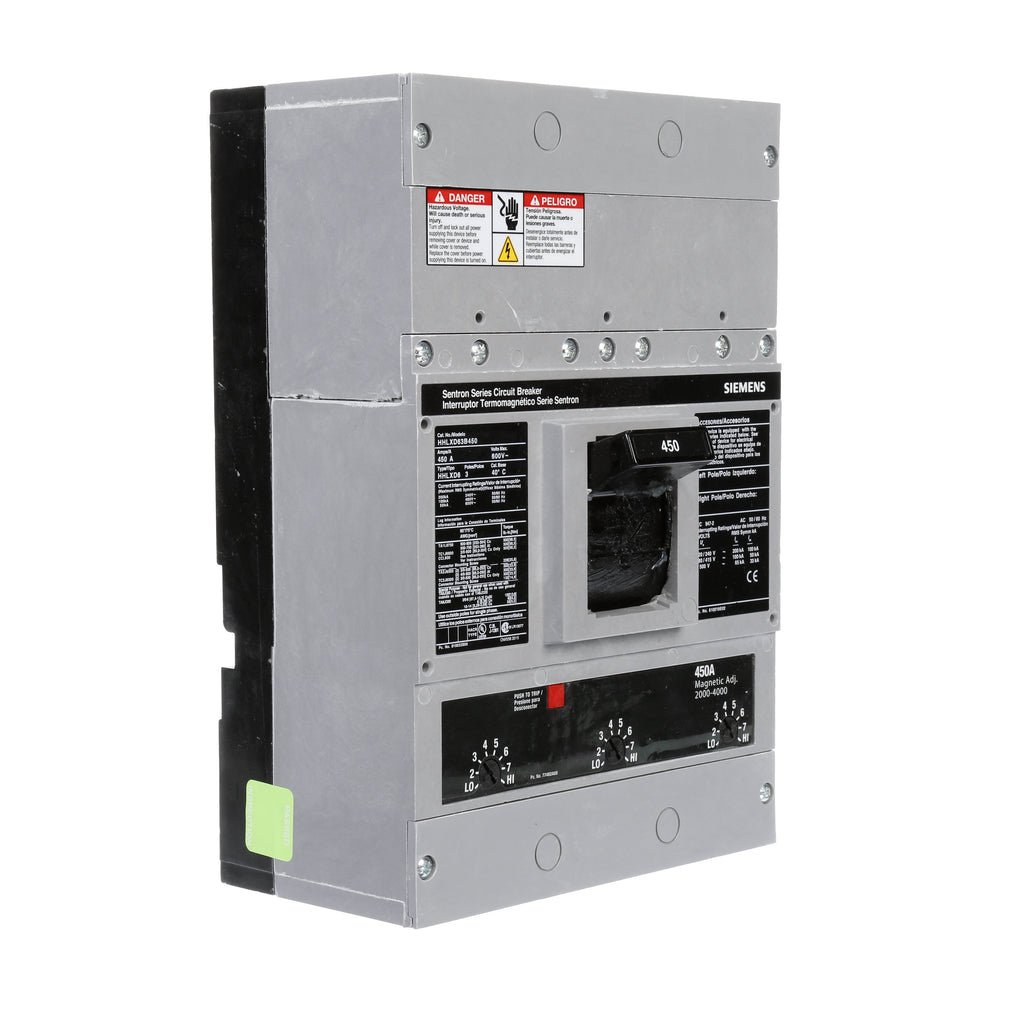

HHLXD63B450 is a Siemens 450 amp, 600 volt, 3 pole bolt-on circuit breaker designed for reliable power distribution protection.This circuit breaker features a standard 40°C LD frame with an extra high interrupting capacity, rated at 100kA at 480V and 50kA at 600V. It includes a non-interchangeable trip unit and is suitable for use in NEMA Type 12 enclosures. The breaker supports wire ranges from 1/0 AWG to 500 kcmil for copper or aluminum conductors.
- Amperage: 450A
- Voltage: 600V
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 100kA @ 480V, 50kA @ 600V
- Frame/Series: LD Frame
- Trip Unit: Non-Interchangeable
- Wire Range: 1/0 AWG - 500 kcmil (CU/AL)
- Enclosure Type: NEMA 12
- Operating Temperature: Standard 40°C
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: HHLXD63B450
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : HHLXD
- Voltage : 600
- Amperage : 450
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : LD Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 783643257863
- GTIN : 00783643257863
- Country of Origin : Mexico
- Weight : 18.301
