Product Info
- Manufacturer:Siemens
- Sub-Category:Trip Units & Programmers
Description
HHLD63T600

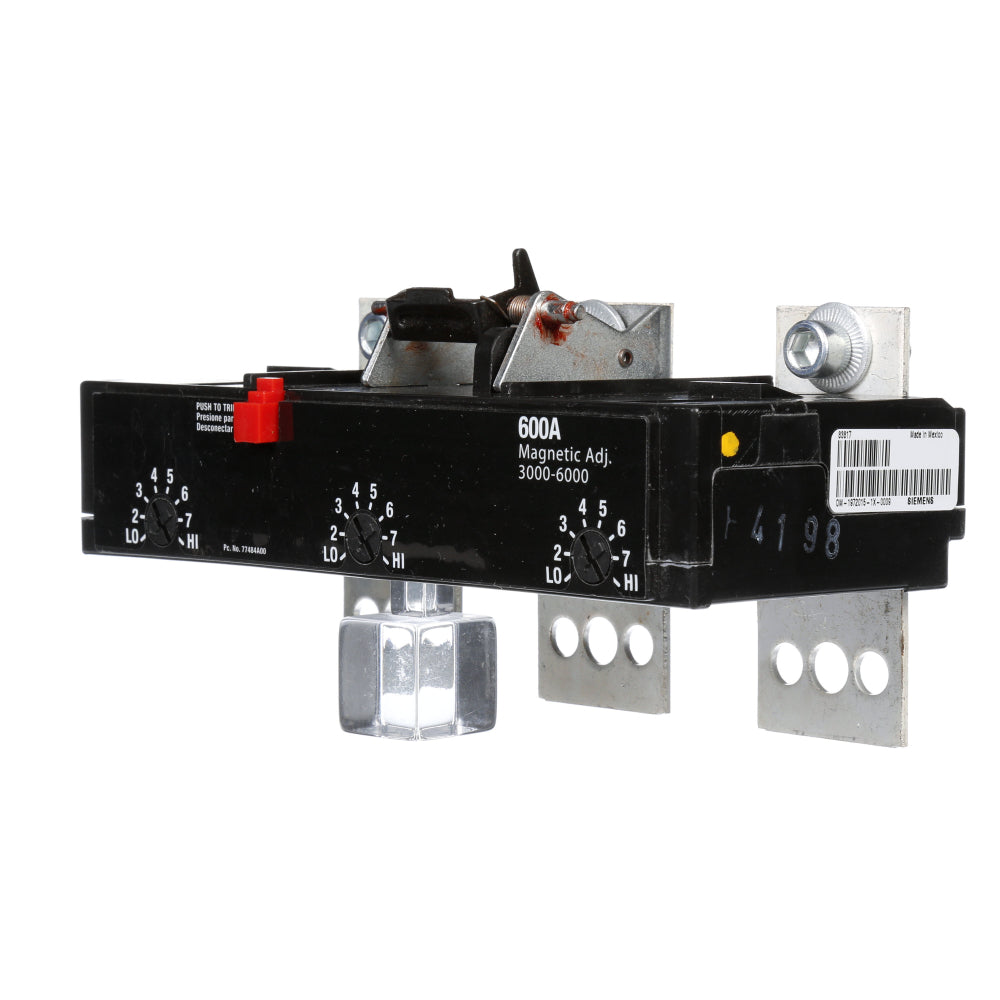

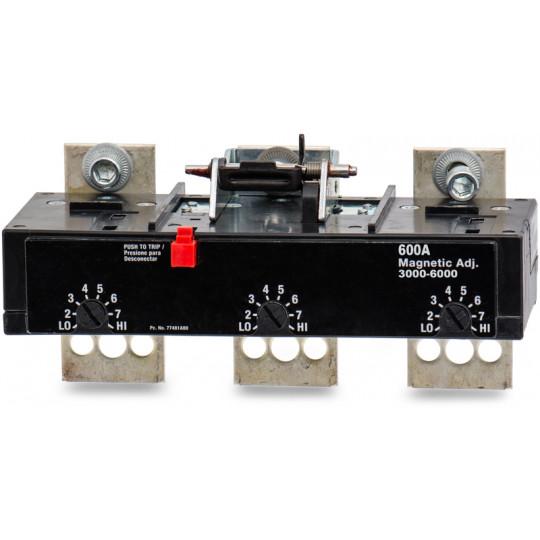

HHLD63T600 is a Siemens 600 amp, 600 volt, 3-pole thermal magnetic trip unit designed for LD frame molded case circuit breakers.This Siemens HHLD63T600 trip unit provides reliable thermal magnetic protection for electrical systems, compatible with LD frame circuit breakers. It features a 3-pole configuration, supports up to 600 amperes and 600 volts, and offers high interrupting capacity suitable for industrial and commercial applications.
- Manufacturer: Siemens
- Part Number: HHLD63T600
- Amperage: 600A
- Voltage Rating: 600V
- Poles: 3
- Trip Unit Type: Thermal Magnetic
- Frame/Series: LD Frame
- Interrupt Rating: Up to 50kA (per Siemens data)
- Mounting Type: Molded Case Circuit Breaker Trip Unit
- Certifications: UL Listed
Specifications
- Part Number: HHLD63T600
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Trip Units & Programmers
- Family : Sentron Series
- Type : Sentron
- Voltage : 600VAC
- Amperage : 600
- Poles : 3
- AIC rating : 50kAIC at 600V, 100kAIC at 480V
- Connection : Bolt-On
- Functions : LI - Long Time and Instantaneous Trip
- Amperage Maximum : 600
- Amperage Minimum : 600
- Protection : Thermal Magnetic
- Compatible Frames : HHLD
Product Data
- UPC : 783643262607
- GTIN : 00783643262607
- Country of Origin : Mexico
- Weight : 2.599
- Standards : RoHS
- Certification : UL, IEC
- Wire Size : AWG 3/0 to 500KCM, Cu, AWG 4/0 to 500KCM, Al
