HHLD63T500 - Siemens 500A 600V 3-Pole Circuit Breaker Trip Unit HHLD Frame Bolt-On

HHLD63T500

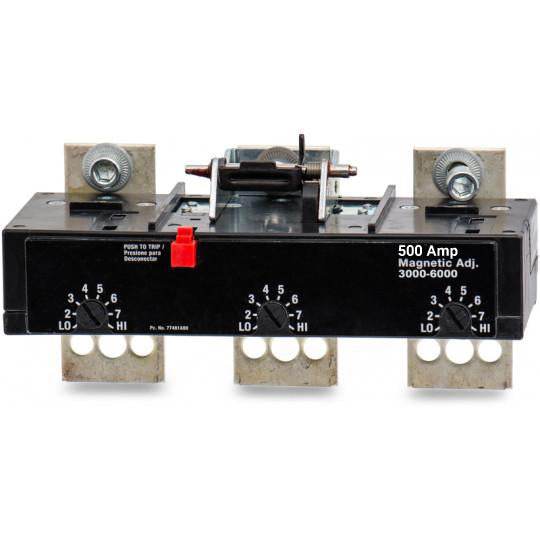

HHLD63T500 is a Siemens 500 Amp, 600 Volt, 3-pole circuit breaker trip unit designed for HHLD frame bolt-on mounting.This trip unit is suitable for LD 600A sized frames including LD, LXD, HLD, HLXD, HHLD, HHLXD, and CLD. It features a thermal magnetic trip unit with long time and instantaneous trip functions, providing very high interrupting capacity rated at 100kAIC at 480V and 50kAIC at 600V. The unit includes load side lug terminals and is interchangeable for flexible applications.

Key Specifications
• Amperage: 500A
• Voltage: 600V AC
• Poles: 3
• Frame Type: HHLD
• Mounting Type: Bolt-On
• Interrupt Rating: 100kAIC at 480V, 50kAIC at 600V
• Trip Unit Type: Thermal Magnetic
• Suitable Frames: LD, LXD, HLD, HLXD, HHLD, HHLXD, CLD
• Certifications: UL 489, IEC 60947-2
• Load Side Lug Terminals
• Interchangeable Trip Unit
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HHLD63T500
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Trip Units & Programmers
• Family : Sentron Series
• Type : Sentron
• Voltage : 600VAC
• Amperage : 500
• Phase : 3
• Poles : 3
• AIC rating : 50kAIC at 600V, 100kAIC at 480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : 500
• Amperage Maximum : 500
• Amperage Minimum : 500
• Protection : Thermal Magnetic
• Compatible Frames : HHLD



Product Data

• UPC : 783643262591
• GTIN : 00783643262591
• Country of Origin : Mexico
• Weight : 1.799
• Standards : RoHS
• Certification : UL, IEC
• Wire Size : AWG 3/0 to 500KCM, Cu, AWG 4/0 to 500KCM, Al
