Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HHLD63B500

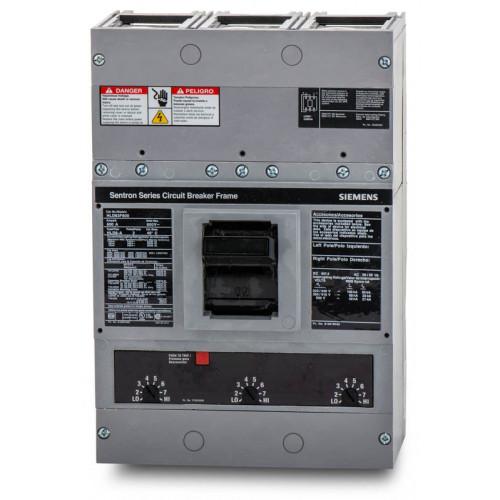

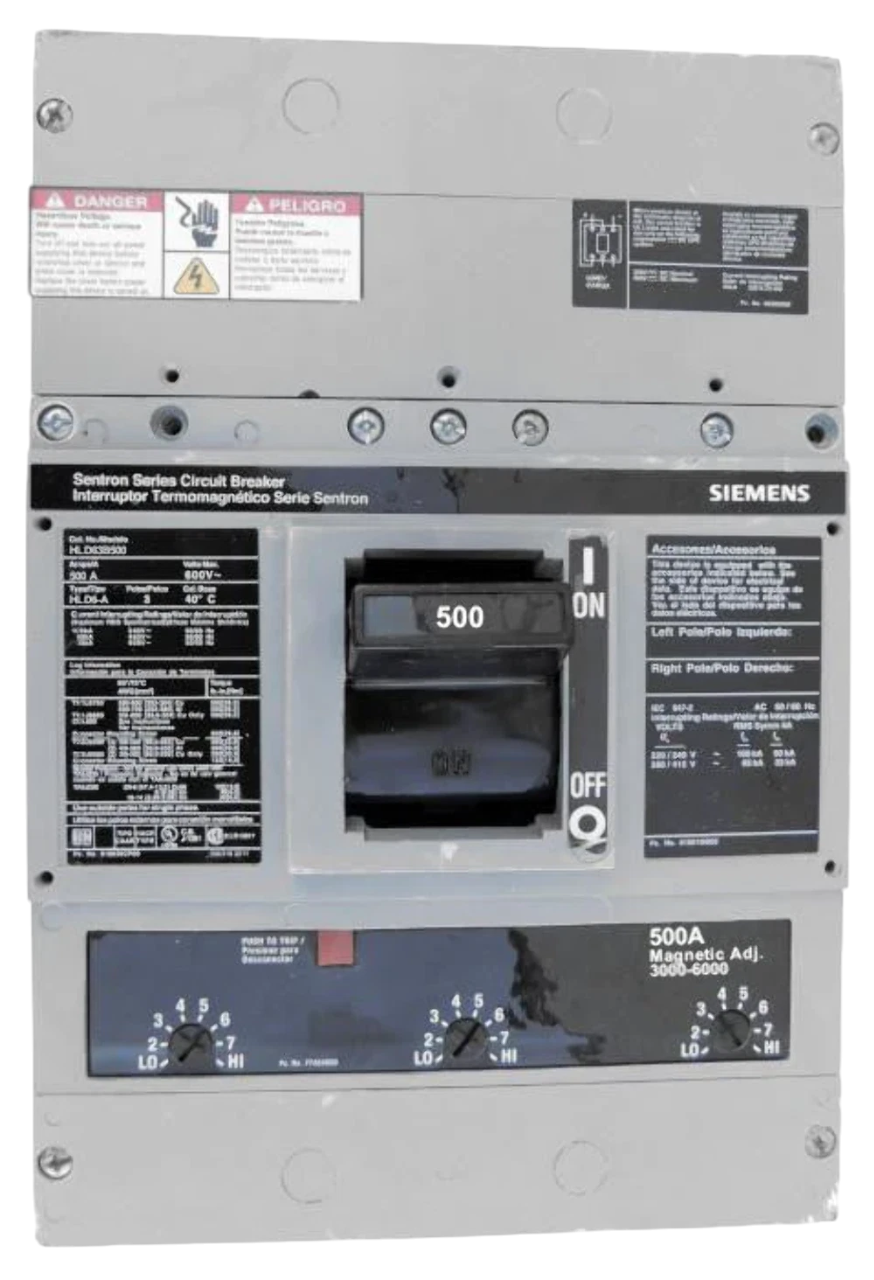

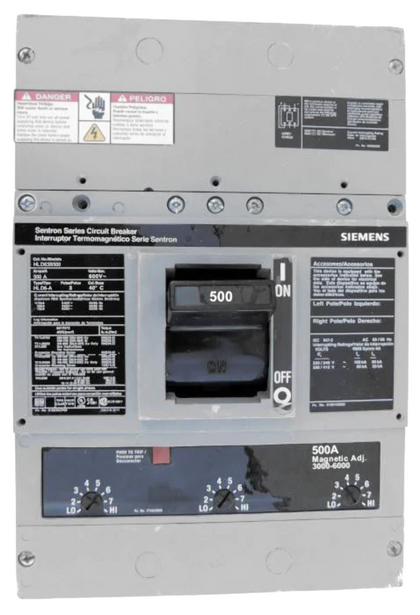

HHLD63B500 is a Siemens 3 pole thermal magnetic molded case circuit breaker with a 500 amp rating and 600 VAC voltage capacity.HHLD63B500 features a Sentron LD frame design with bolt-on mounting and load side lug terminals. It offers a high interrupt rating of 50kAIC at 600V and 100kAIC at 480V, suitable for demanding industrial applications. The breaker includes long-time and instantaneous trip functions and is UL and IEC certified for safety and reliability.
- Manufacturer: Siemens
- Part Number: HHLD63B500
- Amperage: 500 A
- Voltage Rating: 600 VAC
- Number of Poles: 3
- Frame Type: LD Frame (HHLD Series)
- Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Functions
- Interrupt Rating: 50kAIC @ 600V, 100kAIC @ 480V
- Mounting Type: Bolt-On
- Terminal Type: Load Side Lug
- Certifications: UL, IEC
- Series: Sentron
Specifications
- Part Number: HHLD63B500
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : HHLD
- Voltage : 600
- Amperage : 500
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : LD Frame
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643008342
- GTIN : 00783643008342
- Country of Origin : Mexico
- Weight : 8.995
- Wire Size : AWG 3/0 to 500KCM, Cu, AWG 4/0 to 500KCM, Al
