HHLD63B400

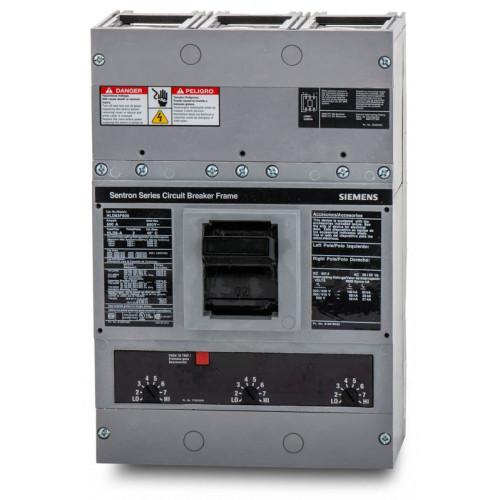

HHLD63B400 is a Siemens Sentron Series 3 pole, 400 amp, 600VAC molded case circuit breaker with thermal magnetic trip and 100kAIC interrupting capacity. This Siemens HHLD63B400 circuit breaker is designed for high performance in commercial and industrial power distribution applications. It features a bolt-on mounting style, load side lug terminals, and interchangeable trip unit for flexible installation. The breaker is rated for 600VAC, 400A, and offers very high interrupting capacity (100kAIC at 480VAC), making it suitable for demanding environments. The Sentron Series LD frame ensures reliability and durability.
- Manufacturer: Siemens
- Part Number: HHLD63B400
- Series: Sentron
- Frame Type: LD
- Amperage: 400A
- Voltage: 600VAC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 100kAIC @ 480VAC
- Connection: Load Side Lug Terminals
- Functions: Long Time and Instantaneous Trip
- Standards: UL Listed
Specifications
- Part Number: HHLD63B400
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : HHLD
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Frame Size : LD Frame
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643008304
- GTIN : 00783643008304
- Country of Origin : Mexico
- Weight : 21.186
- Wire Size : AWG 3/0 to 500KCmil, AWG 4/0 to 500KCmil, Cu/Al
