Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HHJD63B300

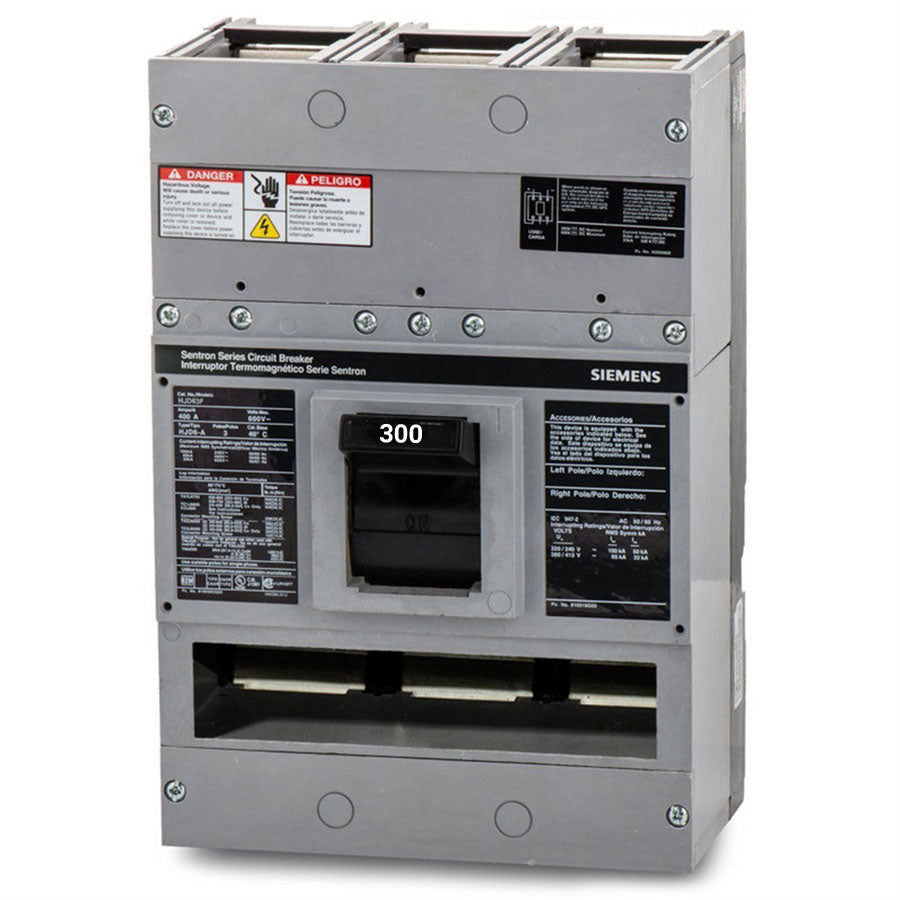

HHJD63B300 is a Siemens 300 amp, 600 volt, 3 pole molded case circuit breaker designed for reliable thermal magnetic protection. This JD frame breaker features bolt-on mounting and a high interrupt rating suitable for industrial applications. It provides long time and instantaneous trip functions with interchangeable trip units, ensuring versatile protection. The breaker supports line/load lug connections and meets UL certification standards.
- Amperage: 300A
- Voltage: 600 VAC
- Poles: 3
- Frame Type: JD (HHJD)
- Mounting Type: Bolt-On
- Interrupt Rating: 100kA at 480V, 50kA at 600V
- Trip Unit: Thermal Magnetic, Long Time and Instantaneous
- Connection: Line/Load Lugs (not included)
- Dimensions: Approx. 7.5" W x 5.44" D x 11" H
- Certifications: UL Listed
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: HHJD63B300
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : HHJD
- Voltage : 600
- Amperage : 300
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Frame Size : JD Frame
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643008113
- GTIN : 00783643008113
- Country of Origin : Mexico
- Weight : 0.022
- Wire Size : 3/0 AWG-500KCM (CU), 4/0 AWG-500KCM (AL)
