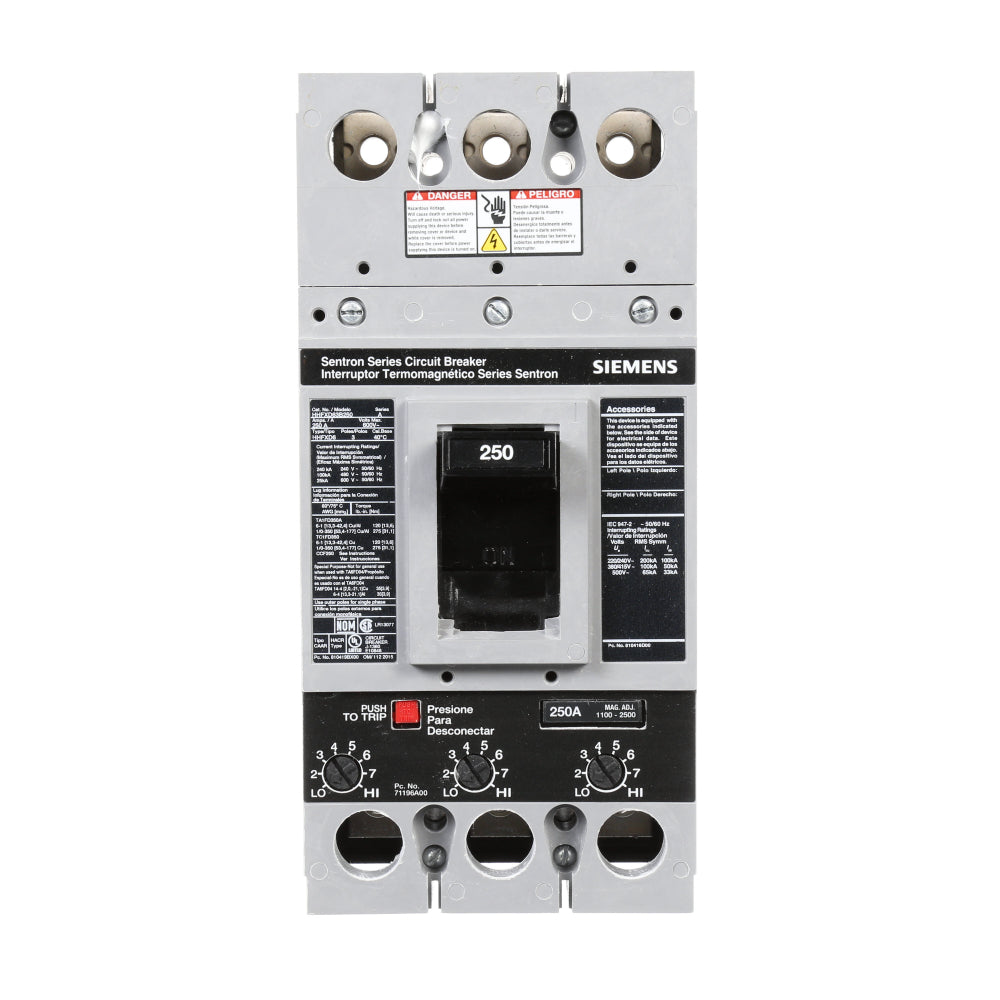

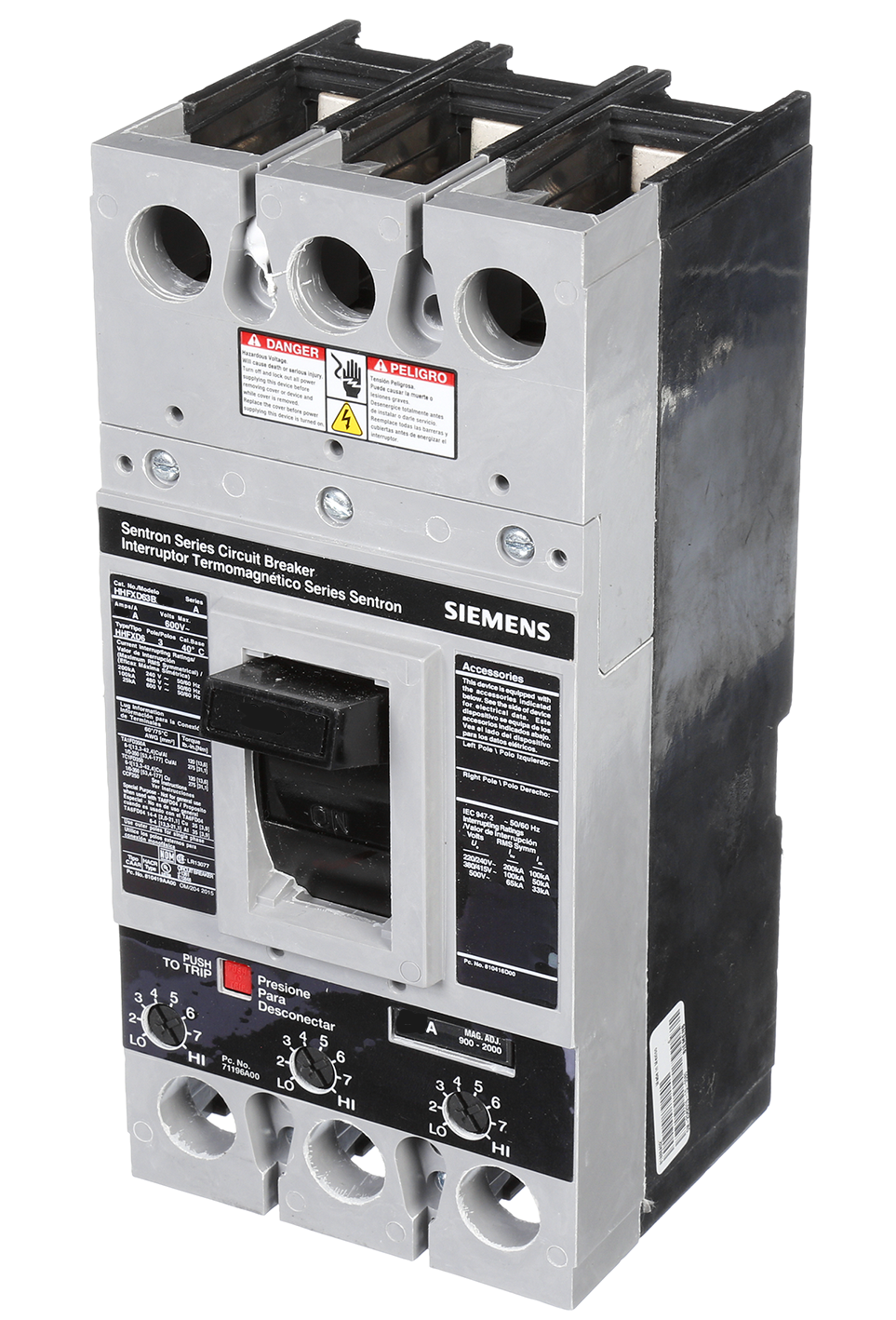

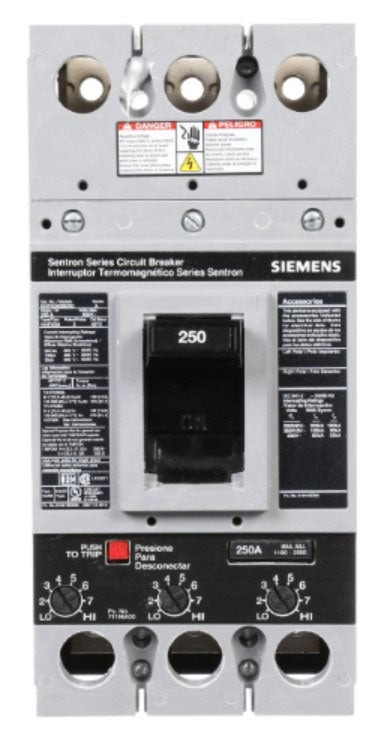

HHFXD63B250 - Siemens 250A 600VAC 3-Pole Thermal Magnetic Circuit Breaker FXD Frame

HHFXD63B250

HHFXD63B250 is a Siemens 3-pole thermal magnetic molded case circuit breaker rated for 250 amps and 600 volts AC, designed for reliable circuit protection. This Siemens Sentron Series FXD frame breaker features a bolt-on mounting type and includes long-time and instantaneous trip functions for enhanced protection. It has an interrupting rating of 22kA at 600V and 35kA at 480V, suitable for demanding electrical applications. UL and IEC certified, it operates at a standard 40°C temperature rating and is UL listed for reverse fed applications.

• Manufacturer: Siemens
• Series: Sentron FXD
• Amperage: 250A
• Voltage: 600VAC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 22kA at 600V, 35kA at 480V
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous functions
• Frame Type: FXD
• Certifications: UL, IEC, RoHS
• Temperature Rating: 40°C
• Dimensions (HxWxD): 9.5 x 4.5 x 4 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Lugs are not included and must be purchased separately

Specifications

• Part Number: HHFXD63B250
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HHFXD
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Frame Size : FD Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643318632
• GTIN : 00783643318632
• Country of Origin : Mexico
• Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
• Weight : 7.5
• Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
