HHFXD63B200 - Siemens 200A 600V 3-Pole Molded Case Circuit Breaker, FD Frame, Thermal Magnetic Trip, 22kA Interrupt

HHFXD63B200

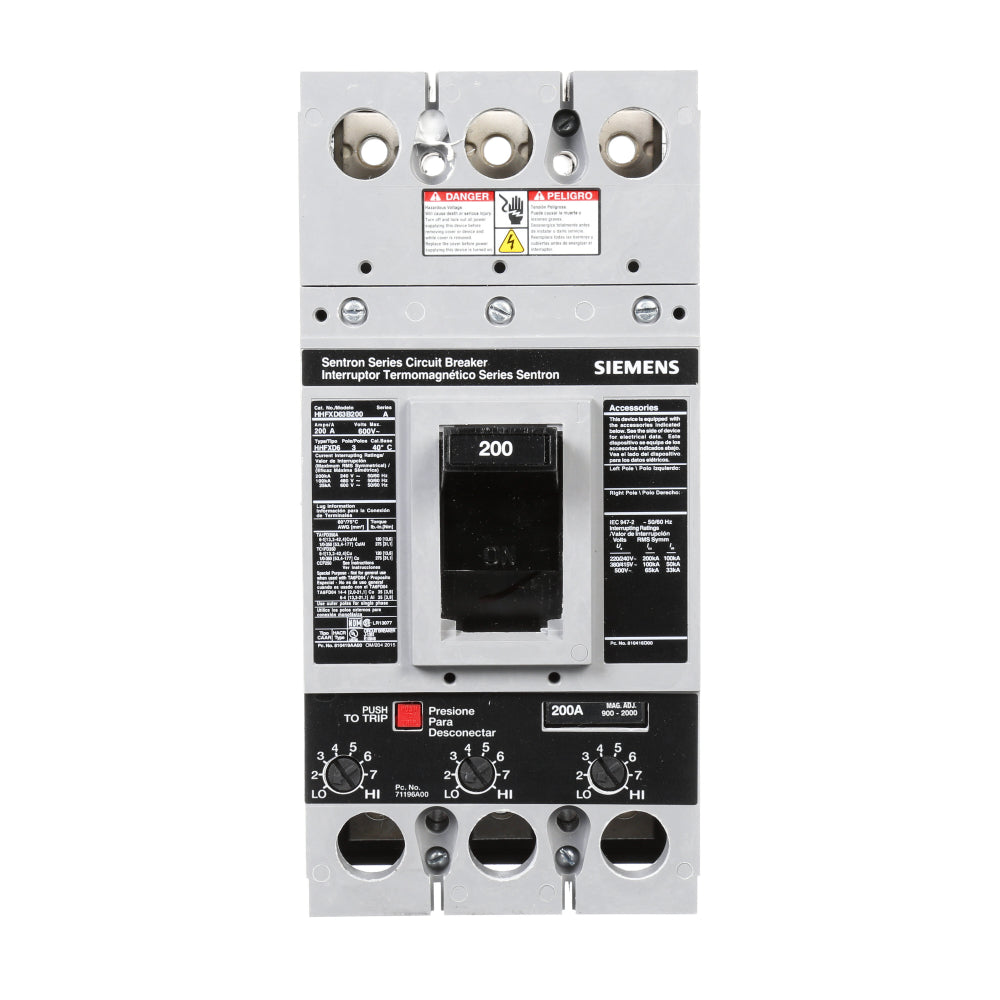

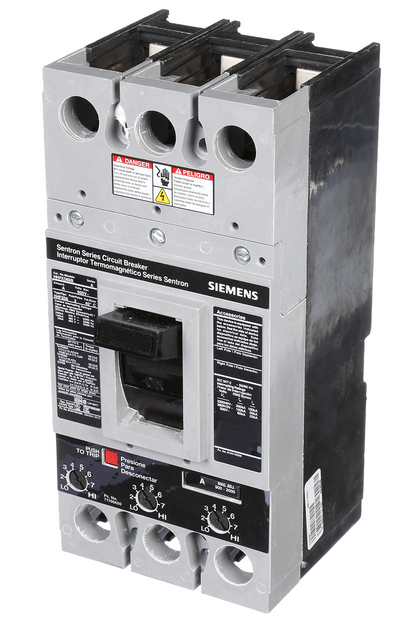

HHFXD63B200 is a Siemens 200A, 600V, 3-pole molded case circuit breaker designed for reliable power distribution in commercial and industrial applications.

This circuit breaker features a thermal magnetic trip unit for both overload and short-circuit protection, is rated for 22kA interrupting capacity at 600V, and is built on the robust FD frame. It is suitable for bolt-on mounting, operates at standard 40°C, and is certified for HACR applications. The non-interchangeable trip unit ensures consistent performance and safety.

Key Specifications
• Part Number: HHFXD63B200
• Manufacturer: Siemens
• Amperage: 200A
• Voltage: 600VAC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 22kA @ 600VAC
• Series/Frame: FD
• Trip Unit: Thermal Magnetic, Non-Interchangeable
• Certifications: HACR Rated
• Frequency: 50/60Hz
• Operating Temperature: 40°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Lugs are not included and must be purchased separately

Specifications

• Part Number: HHFXD63B200
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HHFXD
• Voltage : 600
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : FD Frame
• Temp Rating : 104 °F (40 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643318618
• GTIN : 00783643318618
• Country of Origin : Mexico
• Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
• Weight : 8.796
• Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
• Certification : Ul Listed
