HHFXD63B125 - Siemens Sentron FD Frame 3-Pole 125A 600V Circuit Breaker

HHFXD63B125

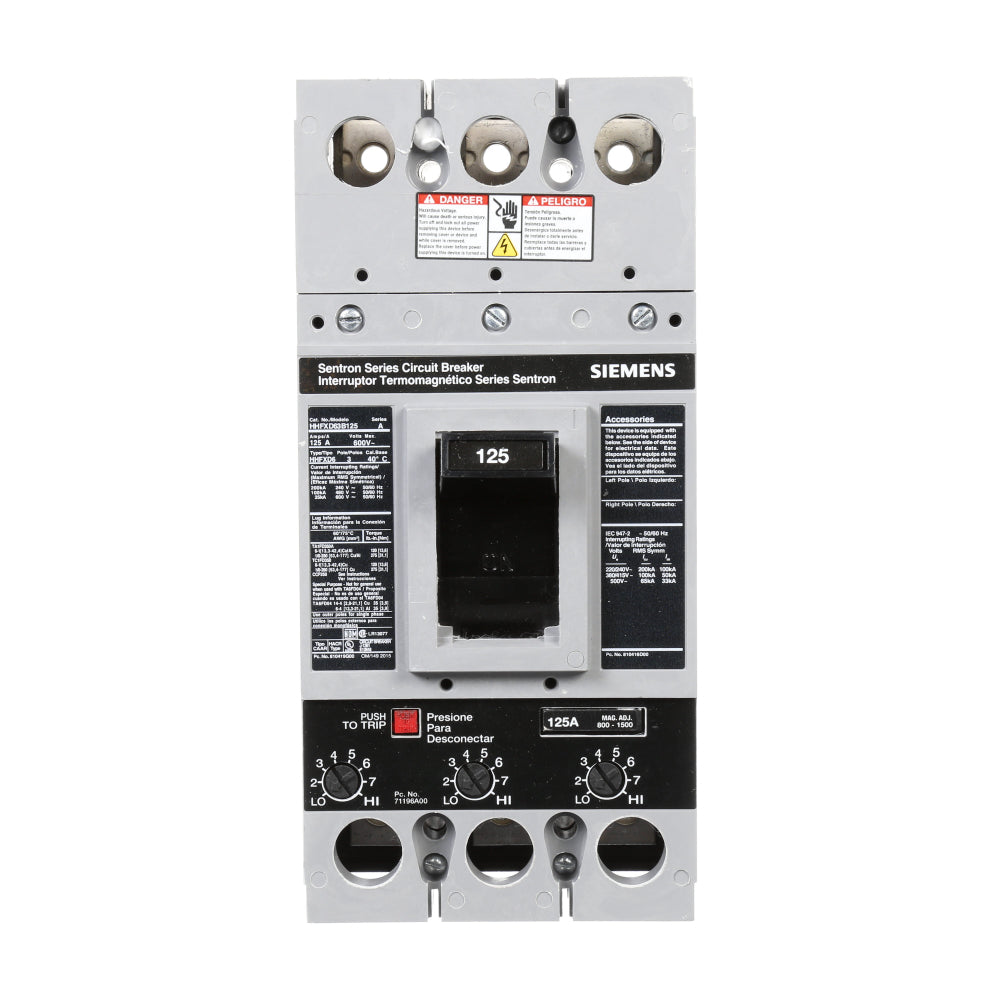

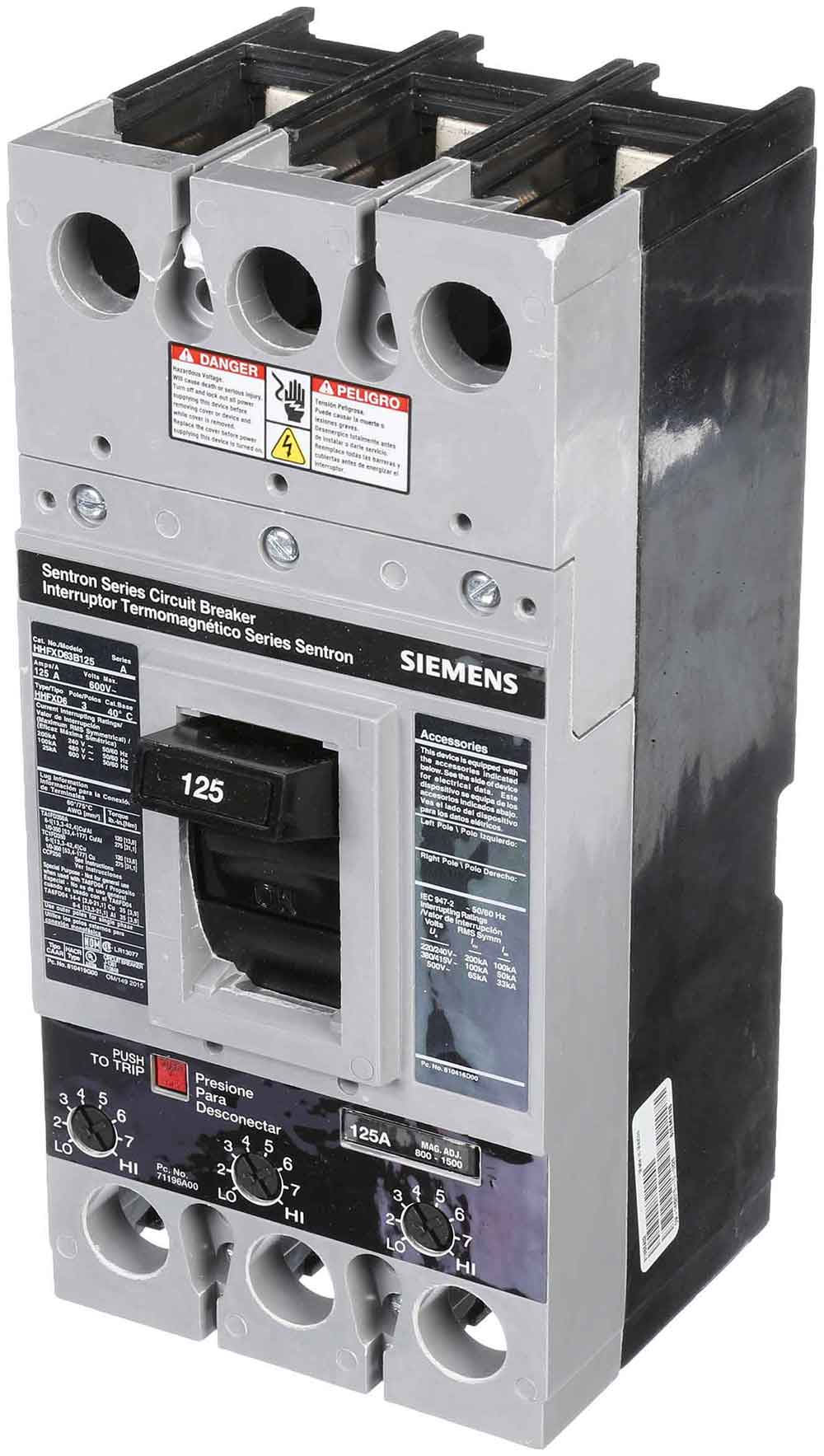

HHFXD63B125 is a Siemens Sentron FD Frame molded case circuit breaker designed for reliable protection in industrial and commercial power distribution systems. This 3-pole breaker features a 125A current rating and is rated for 600V AC, making it suitable for demanding applications requiring high breaking capacity. The HHFXD63B125 is part of the Sentron FD series and offers a non-interchangeable trip unit for enhanced safety and performance. It is engineered for fixed mounting and provides robust protection with an interrupt rating of 25kAIC at 600V and 100kAIC at 480V. The breaker is built to meet rigorous industry standards for durability and reliability in critical environments.

• Manufacturer: Siemens
• Series/Frame: Sentron FD Frame
• Amperage: 125A
• Number of Poles: 3
• Voltage Rating: 600V AC
• Interrupt Rating: 25kAIC at 600V, 100kAIC at 480V
• Mounting Type: Fixed
• Breaker Type: Molded Case
• Application: Industrial and Commercial Power Distribution
• Trip Unit: Non-Interchangeable

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Lugs are not included and must be purchased separately

Specifications

• Part Number: HHFXD63B125
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HHFXD
• Voltage : 600
• Amperage : 125
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : FD Frame
• Temp Rating : 104 °F (40 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643318588
• GTIN : 00783643318588
• Country of Origin : Mexico
• Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
• Weight : 7.5
• Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
