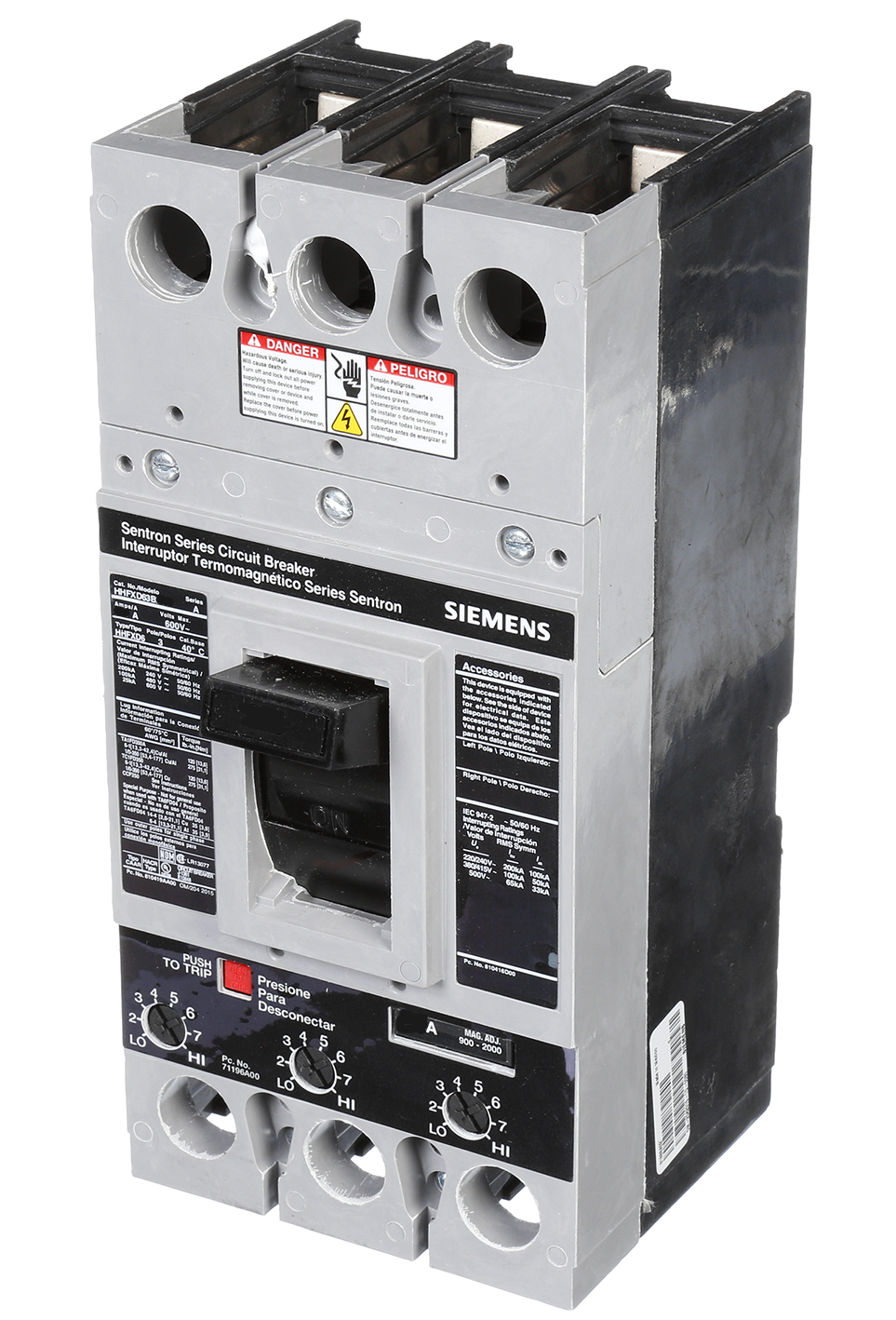

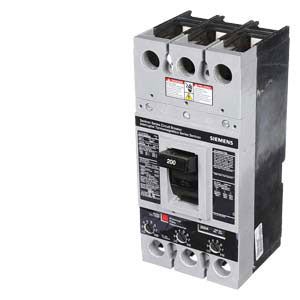

HHFXD63B080 - Siemens 80 Amp 3 Pole 600 Volt Molded Case Circuit Breaker FD Frame

HHFXD63B080

HHFXD63B080 is an 80 Amp, 3 pole, 600 Volt molded case circuit breaker from Siemens designed for reliable overload and short circuit protection.This Siemens FD frame circuit breaker features a thermal magnetic trip unit with a high interrupting rating suitable for industrial and commercial applications. It supports bolt-on mounting and complies with UL 489 and IEC 60947-2 standards, ensuring safety and performance. The breaker is rated for 80 amperes at 40°C and has a breaking capacity of up to 65kA at 600 VAC.

Key Specifications
• Amperage: 80 A
• Voltage: 600 VAC
• Poles: 3
• Frame Type: FD
• Mounting Type: Bolt-On
• Interrupt Rating: 65kA at 600 VAC
• Trip Unit: Thermal Magnetic
• Standards: UL 489, IEC 60947-2
• Operating Temperature: 40°C
• Protection: Overload and Short Circuit
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

Lugs are not included and must be purchased separately




Specifications

• Part Number: HHFXD63B080
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HHFXD
• Voltage : 600
• Amperage : 80
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : FD Frame
• Temp Rating : 104 °F (40 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 783643318540
• GTIN : 00783643318540
• Country of Origin : Mexico
• Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
• Weight : 7.5
• Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
