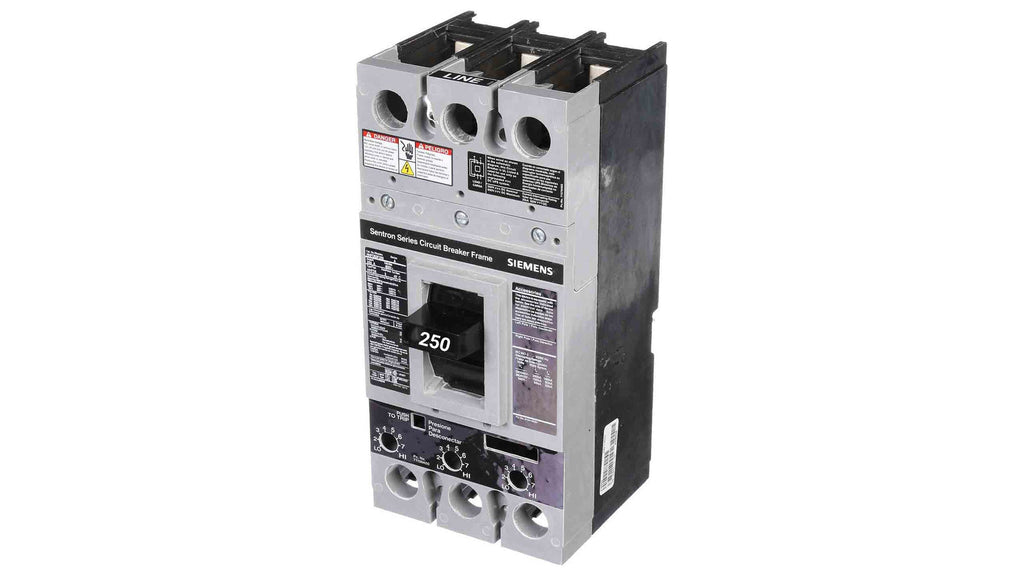

HHFD63B250 - Siemens 250A 3-Pole Molded Case Circuit Breaker 600V FD Frame Thermal Magnetic Trip

HHFD63B250

HHFD63B250 is a Siemens 250 Amp 3-Pole molded case circuit breaker designed for FD frame applications with thermal magnetic trip unit.HHFD63B250 features a 600 Volt AC and 500 Volt DC voltage rating, 25kA interrupt rating at 600V, and complies with UL 489 and IEC 60947-2 standards. It is suitable for use in switchboards, panelboards, and individual enclosures, offering reliable protection with line and load side lug connections.

Key Specifications
• Amperage: 250A
• Voltage Rating: 600 VAC / 500 VDC
• Poles: 3
• Interrupt Rating: 25kA at 600V
• Frame Type: FD Frame
• Trip Unit: Thermal Magnetic
• Mounting Type: Molded Case
• Standards: UL 489, IEC 60947-2
• Wire Range: 6 AWG - 350 KCM Cu / 4 AWG - 350 KCM Al
• Dimensions (W x H x D): Approx. 4.5 x 9.5 x 4 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Lugs are not included and must be purchased separately

Specifications

• Part Number: HHFD63B250
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HHFD
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : FD Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643304321
• GTIN : 00783643304321
• Country of Origin : Mexico
• Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
• Weight : 9.656
• Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
• Wire Size : AWG 6 to 350KCM, Cu, AWG 4 to 350KCM, Al
