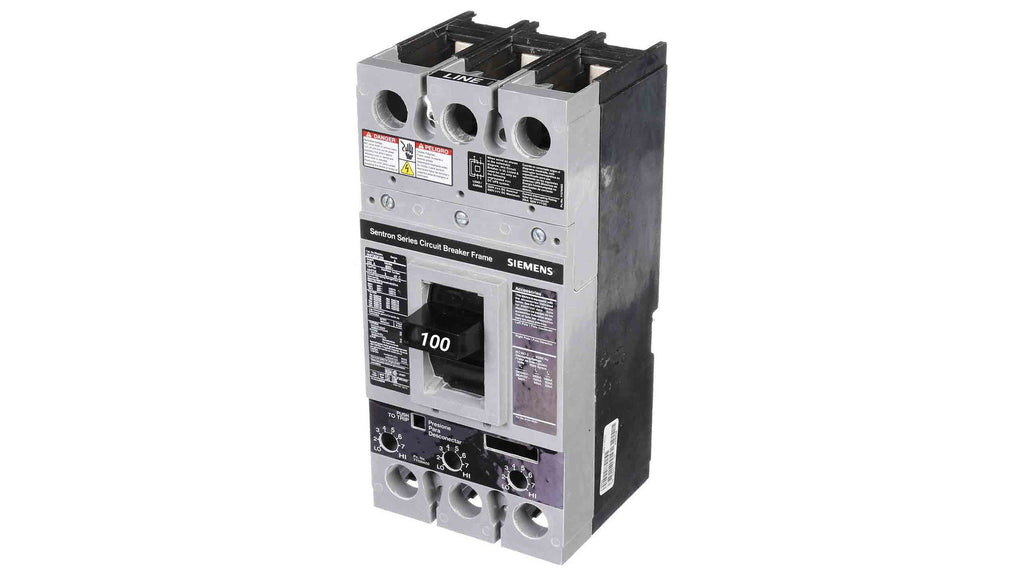

HHFD63B100 - Siemens 100A 600V 3 Pole Bolt-On Circuit Breaker Thermal Magnetic

HHFD63B100

HHFD63B100 is a Siemens 100 amp, 600 volt, 3 pole bolt-on circuit breaker with thermal magnetic trip unit designed for high interrupting capacity applications.This Siemens HHFD frame circuit breaker features a thermal magnetic trip unit with a 100kA interrupting rating at 480V AC and 25kA at 600V AC. It includes line and load side lug terminals compatible with wire sizes from 6 AWG to 350 KCMIL copper and aluminum. The breaker meets UL 489 and IEC 60947-2 standards and is designed for use in low voltage power distribution systems. Dimensions are 4.5" wide by 9.5" high by 4" deep, with bolt-on mounting.

Key Specifications
• Amperage: 100A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupting Rating: 100kA at 480V, 25kA at 600V
• Frame Type: HHFD
• Trip Unit: Thermal Magnetic
• Wire Size Range: 6 AWG to 350 KCMIL (CU/AL)
• Certifications: UL 489, IEC 60947-2
• Dimensions: 4.5" W x 9.5" H x 4" D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Lugs are not included and must be purchased separately

Specifications

• Part Number: HHFD63B100
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HHFD
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : FD Frame
• Temp Rating : 104 °F (40 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643304253
• GTIN : 00783643304253
• Country of Origin : Mexico
• Dimensions : 9.843 x 5.906 x 6.693 inch
• Weight : 9.546
• Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
• Wire Size : AWG 6 to 350KCM, Cu, AWG 4 to 350KCM, Al
