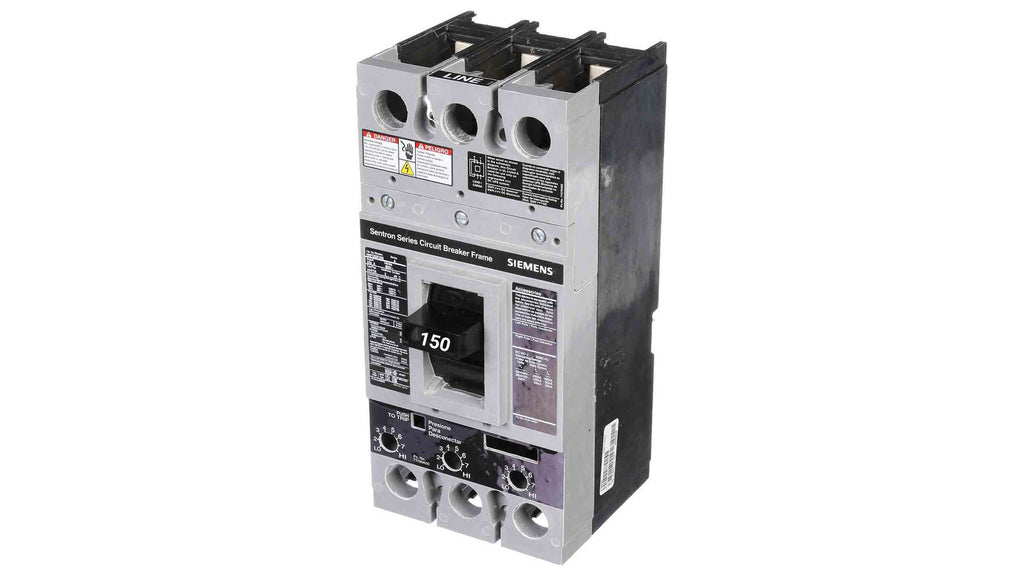

HHFD63B150 - Siemens 150A 600V 3-Pole Molded Case Circuit Breaker Bolt-On Mount Frame HHFD

HHFD63B150

HHFD63B150 is a Siemens 150 Amp, 600 Volt, 3-Pole molded case circuit breaker with bolt-on mounting and HHFD frame type.This Siemens circuit breaker features a thermal magnetic trip unit and is designed for reliable protection in electrical distribution systems. It has an interrupting rating of 200,000 A at 240V AC, 100,000 A at 480V AC, and 25,000 A at 600V AC. The breaker supports wire sizes from #6 AWG to 350 Kcmil using the TA1FD350A lug kit and measures 4.5 inches wide by 9.5 inches high by 4 inches deep, weighing approximately 10 lbs.

Key Specifications
• Amperage: 150A Trip, 250A Frame
• Voltage Rating: 600V AC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupting Rating: 200kA at 240V, 100kA at 480V, 25kA at 600V
• Frame Type: HHFD
• Trip Unit: Thermal Magnetic
• Wire Size Range: #6 AWG to 350 Kcmil (with lug kit)
• Dimensions: 4.5" W x 9.5" H x 4" D
• Weight: 10 lbs
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

Lugs are not included and must be purchased separately




Specifications

• Part Number: HHFD63B150
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HHFD
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : FD Frame
• Temp Rating : 104 °F (40 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 783643304284
• GTIN : 00783643304284
• Country of Origin : Mexico
• Dimensions : 9.843 x 5.906 x 6.693 inch
• Weight : 9.678
• Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
• Wire Size : 6 AWG to 350 KCM (CU), 4 AWG to 350 KCM (AL)
