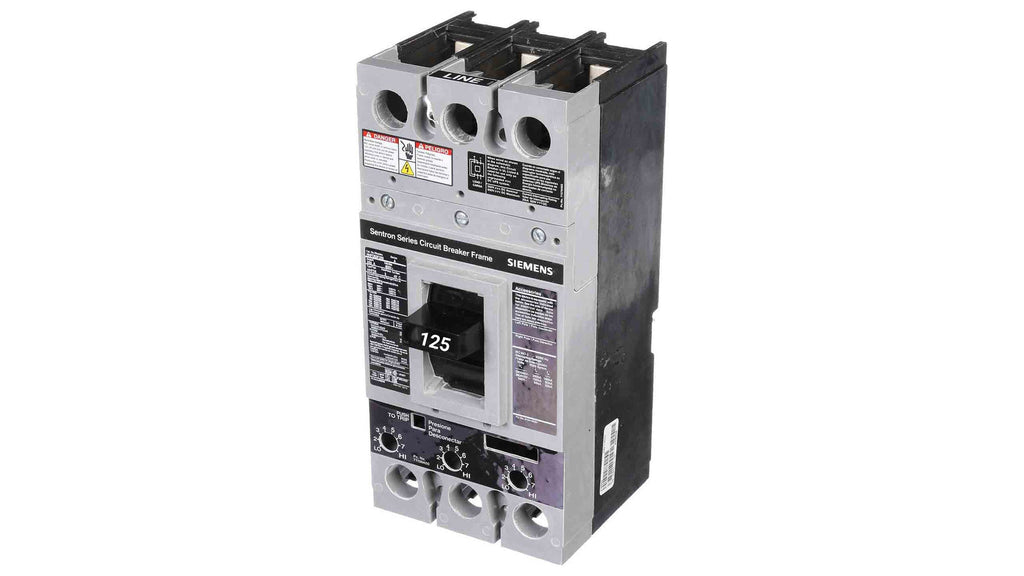

HHFD63B125 - Siemens 125A 600V 3-Pole Molded Case Circuit Breaker HHFD Frame

HHFD63B125

HHFD63B125 is a Siemens 125 amp, 600 volt, 3-pole molded case circuit breaker with HHFD frame designed for reliable power distribution protection.This Siemens Sentron series breaker features a thermal magnetic trip unit with long time and instantaneous trip functions. It has a bolt-on mounting type and offers very high interrupting capacity rated at 25kA at 600V, 100kA at 480V, and 200kA at 240V. The breaker meets UL 489 and IEC 60947-2 standards and includes load side lug terminals for flexible wiring.

Key Specifications
• Amperage: 125 A
• Voltage: 600 V AC
• Poles: 3
• Frame Type: HHFD
• Interrupting Rating: 25kA at 600V, 100kA at 480V, 200kA at 240V
• Trip Unit: Thermal Magnetic with long time and instantaneous functions
• Mounting Type: Bolt-On
• Standards: UL 489, IEC 60947-2
• Series: Sentron
• Load Side Lug Terminals

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Lugs are not included and must be purchased separately

Specifications

• Part Number: HHFD63B125
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HHFD
• Voltage : 600
• Amperage : 125
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : FD Frame
• Temp Rating : 104 °F (40 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643304277
• GTIN : 00783643304277
• Country of Origin : Mexico
• Dimensions : 9.843 x 5.906 x 6.693 inch
• Weight : 8.73
• Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
• Wire Size : 6AWG - 350KCM (CU) / 4AWG - 350KCM (AL)
