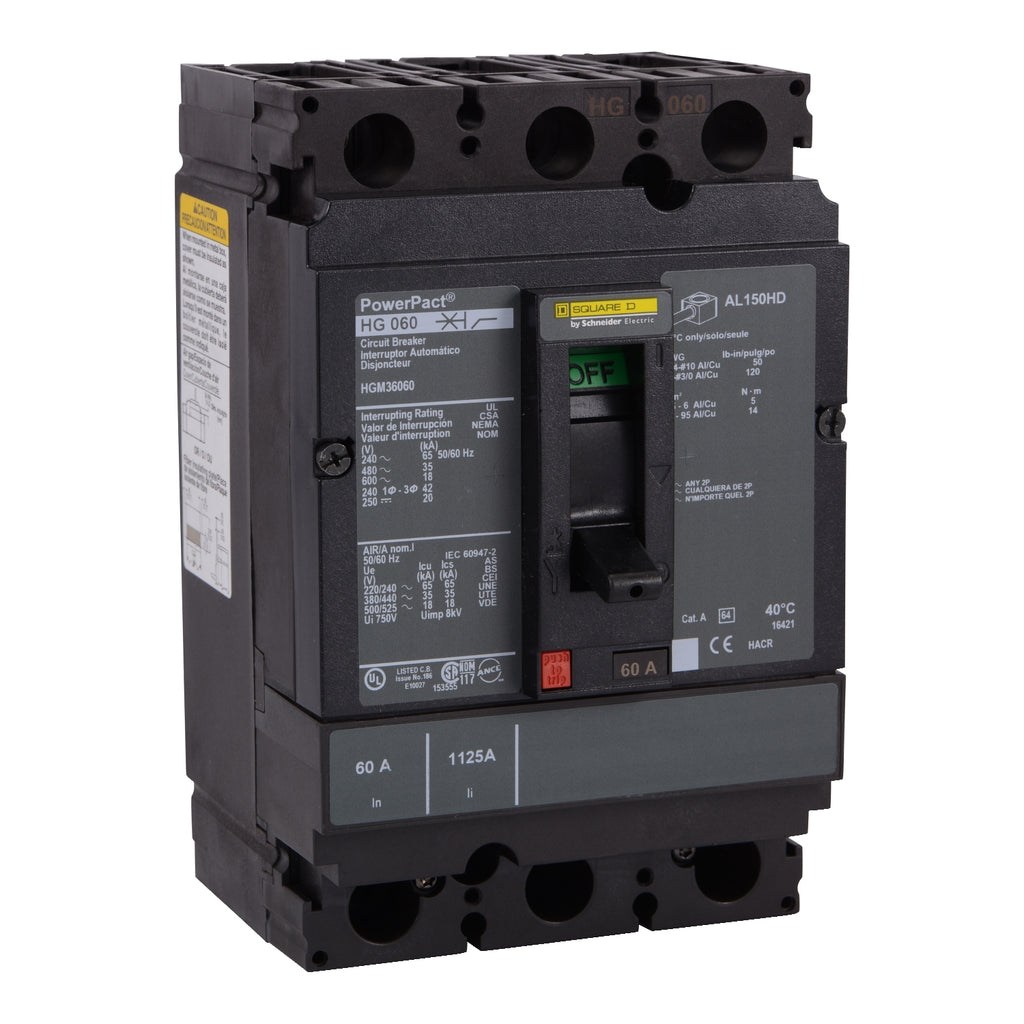

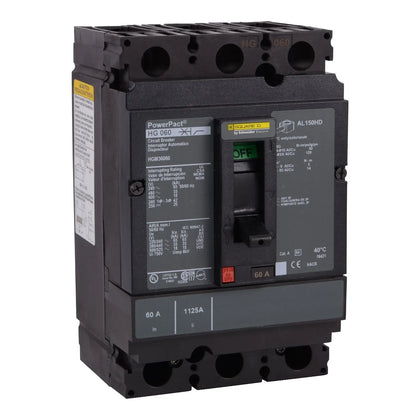

HGM36060 - Square D PowerPact H Frame 60A 3 Pole 600V Molded Case Circuit Breaker Unit Mount 35kA@480V

HGM36060

HGM36060 is a Square D PowerPact H Frame molded case circuit breaker designed for industrial and commercial power distribution applications requiring reliable protection and high interrupt capacity. This 3 pole, 60 amp, 600V AC circuit breaker features a unit mount design and is UL 489 listed for safety and compliance. The HGM36060 is part of the PowerPact H series and offers a 35kA interrupt rating at 480V, making it suitable for demanding electrical environments. The breaker uses a thermal-magnetic trip unit for precise overload and short-circuit protection.

• Part Number: HGM36060
• Manufacturer: Square D
• Series/Frame: PowerPact H Frame
• Amperage: 60A
• Number of Poles: 3 Pole
• Maximum Voltage: 600V AC
• Mounting Type: Unit Mount
• Interrupt Rating: 35kA @ 480V
• Interrupt Code: G
• Trip Unit: Thermal-Magnetic
• Certifications: UL 489 Listed
• Application: Molded Case Circuit Breaker

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGM36060
• Manufacturer : Square D
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGM
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : H Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901002659
• GTIN : 00785901002659
• Country of Origin : United States
• Dimensions : Height 6.42 in (163 mm) x Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
• Weight : 5
• Certification : CE-CSA-CCC-IEC-UL LISTED
• Wire Size : AWG 14...AWG 3/0 aluminum/copper terminal
