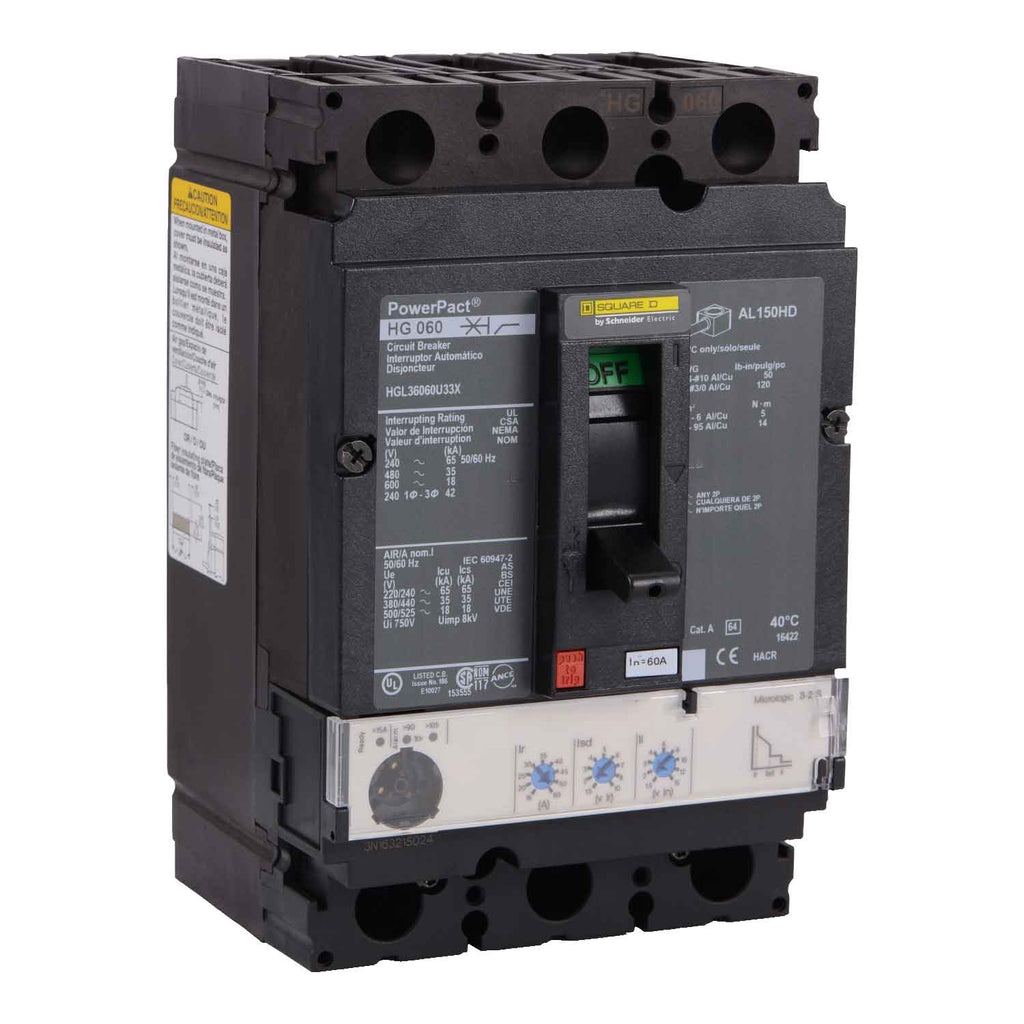

HGL36060U33X - Square D 60 Amp 600V 3 Pole HGL Frame Molded Case Circuit Breaker, Feed-Thru, 35kAIC, Micrologic LSI Trip, UL 489 Listed

HGL36060U33X

HGL36060U33X is a Square D molded case circuit breaker designed for robust power distribution applications.

This three-pole, 60 Amp, 600V AC breaker features a solid-state Micrologic trip unit with Long-Time, Short-Time, and Instantaneous (LSI) protection, housed in an HGL frame for high interrupting capacity. It is suitable for feed-thru applications, can be reverse fed, and is UL 489 listed for safety and compliance.

Key Specifications
• Manufacturer: Square D by Schneider Electric
• Amperage: 60 Amp
• Voltage: 600V AC
• Poles: 3
• Mounting Type: Unit Mount
• Interrupt Rating: 35kA at 480V, 65kA at 240V, 18kA at 600V
• Series/Frame: HGL
• Trip Unit: Micrologic Standard Non-Interchangeable, LSI (Long-Time, Short-Time, Instantaneous)
• Connection: Feed-Thru, line & load side lug terminals
• Certifications: UL 489 Listed
• Application: Suitable for reverse fed and 2-pole applications
• Interrupting Capacity: High

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGL36060U33X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGL
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Terminal Connection : Box Lug
• Frame Size : 150A/HG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3/0 AWG
• Breaker Type : Micrologic Standard W LSI Functionality
• Protection : Solid State
• Phase Connection : ABC

Product Data

• UPC : 785901566144
• GTIN : 00785901566144
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
