HGL26060 - Square D PowerPacT H 60A 2-Pole 600V Molded Case Circuit Breaker, Thermal Magnetic Trip, Bolt-On Mount, 18kA Interrupt, UL/CSA/CE

HGL26060

HGL26060 is a Square D PowerPacT H series molded case circuit breaker designed for reliable circuit protection in commercial and industrial applications.

This thermal magnetic, current-limiting circuit breaker features a robust H-frame construction, bolt-on mounting, and is rated for 60A, 600VAC, and 250VDC. It is UL, CSA, and CE certified for safety and compliance.

Key Specifications
• Amperage: 60A
• Voltage: 600VAC, 250VDC
• Poles: 2
• Mounting Type: Bolt-on
• Interrupt Rating: 18kA AC, 20kA DC
• Series/Frame: PowerPacT H (HGL)
• Trip Unit: Thermal magnetic
• Certifications: UL, CSA, CE

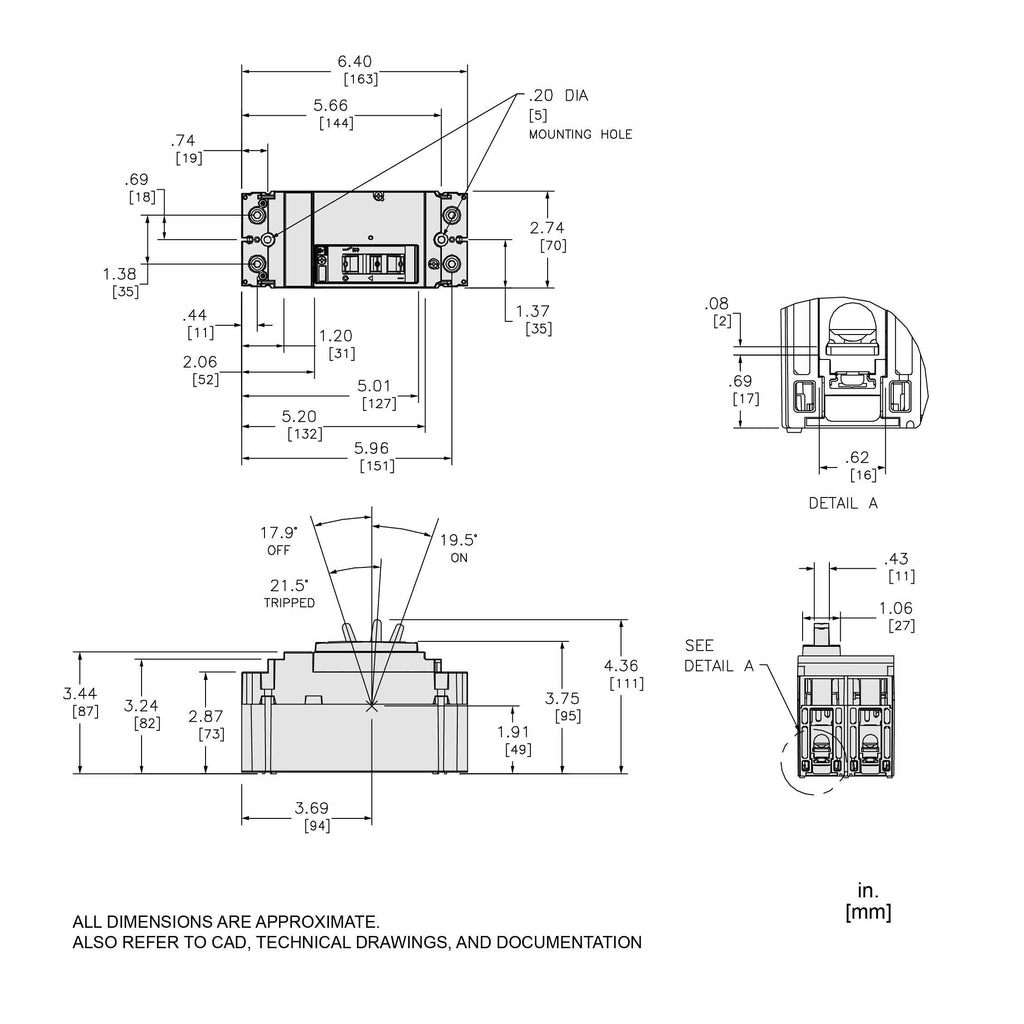

• Dimensions: 6.42" H x 4.09" W x 3.39" D
• Weight: 4.85 lbs
• Standards: California Proposition 65

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGL26060
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGL
• Voltage : 600
• Amperage : 60
• Phase : 1
• Poles : 2
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous
• Terminal Connection : Line/Load Lug
• Frame Size : 150A/HG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Not Applicable

Product Data

• UPC : 785901433859
• GTIN : 00785901433859
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.001
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
