Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HGB3K125B

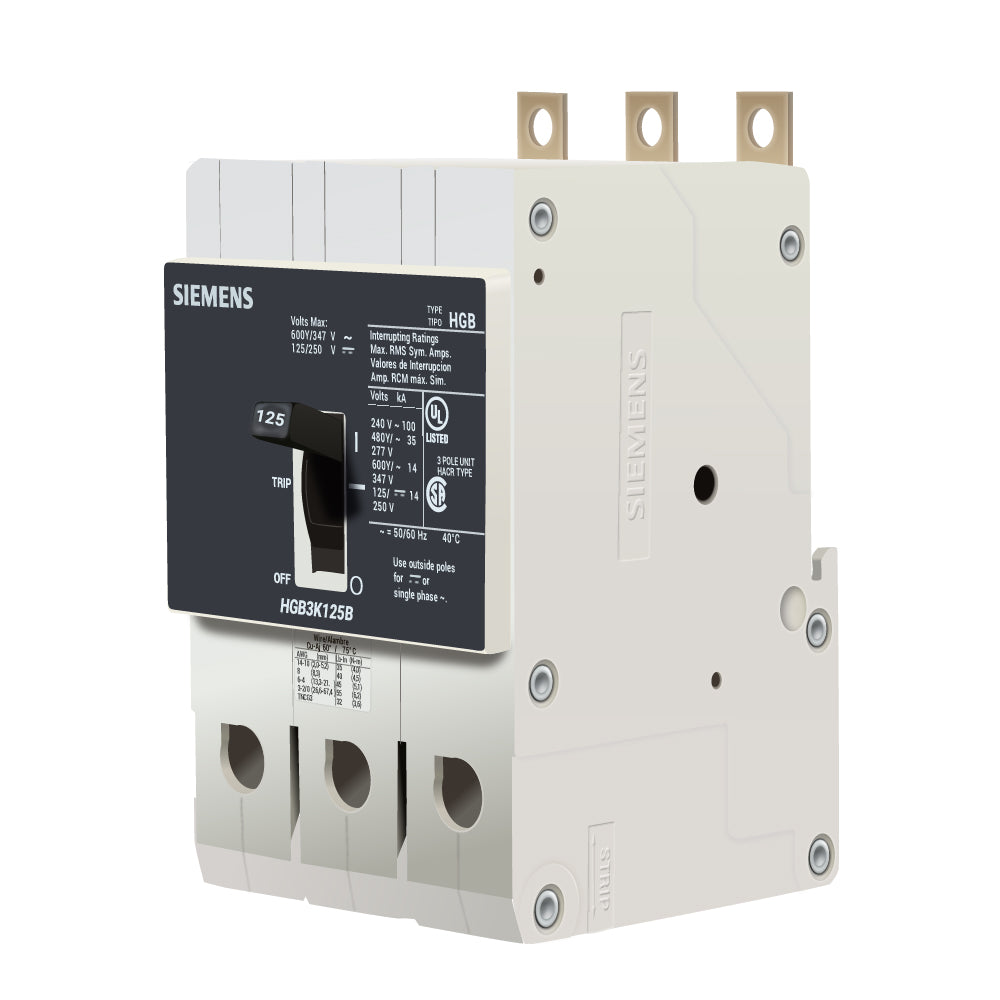

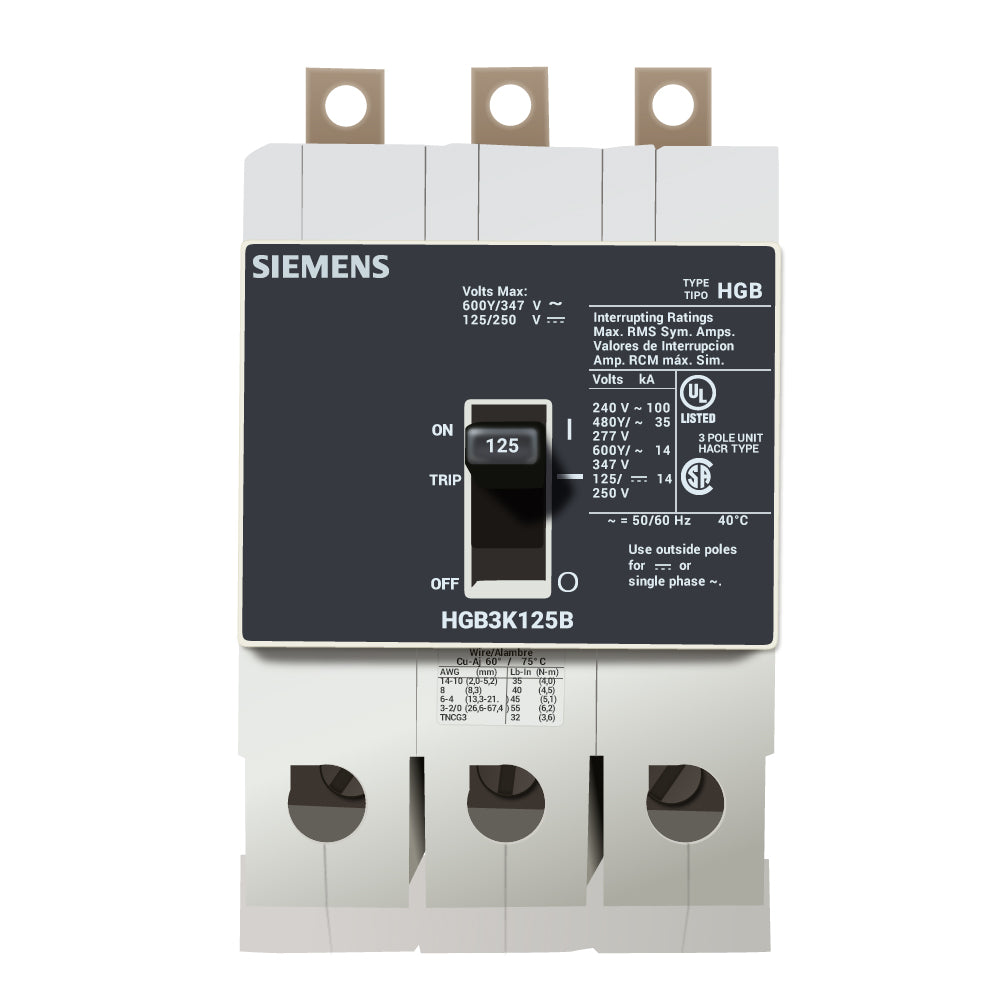

HGB3K125B is a 3 pole, 125 amp rated molded case circuit breaker manufactured by Siemens for low voltage power distribution applications. This GB2 frame breaker is rated for 600Y/347V AC operation and features bolt-on connection for easy installation in panelboards and load centers. The thermal/magnetic trip unit provides reliable protection against overloads and short circuits in industrial and commercial electrical systems.
- Part Number: HGB3K125B
- Manufacturer: Siemens
- Poles: 3
- Amperage: 125A
- Voltage: 600Y/347V AC
- Frame: GB2
- Connection: Bolt-On
- Interrupt Rating: 35kA @ 480V
- Trip Unit: Thermal/Magnetic
- Certification: UL489
- Frequency: 50/60 Hz
Specifications
- Part Number: HGB3K125B
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : GB2 Series
- Type : GB2
- Voltage : 600
- Amperage : 125
- Phase : 2
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : GB2 Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 804766340017
- GTIN : 00804766340017
- Country of Origin : Mexico
- Dimensions : 2.87 x 2.961 x 4.988 inch
- Weight : 2.756
- Certification : UL, CSA, IEC, NOM
