Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HGB3K020B

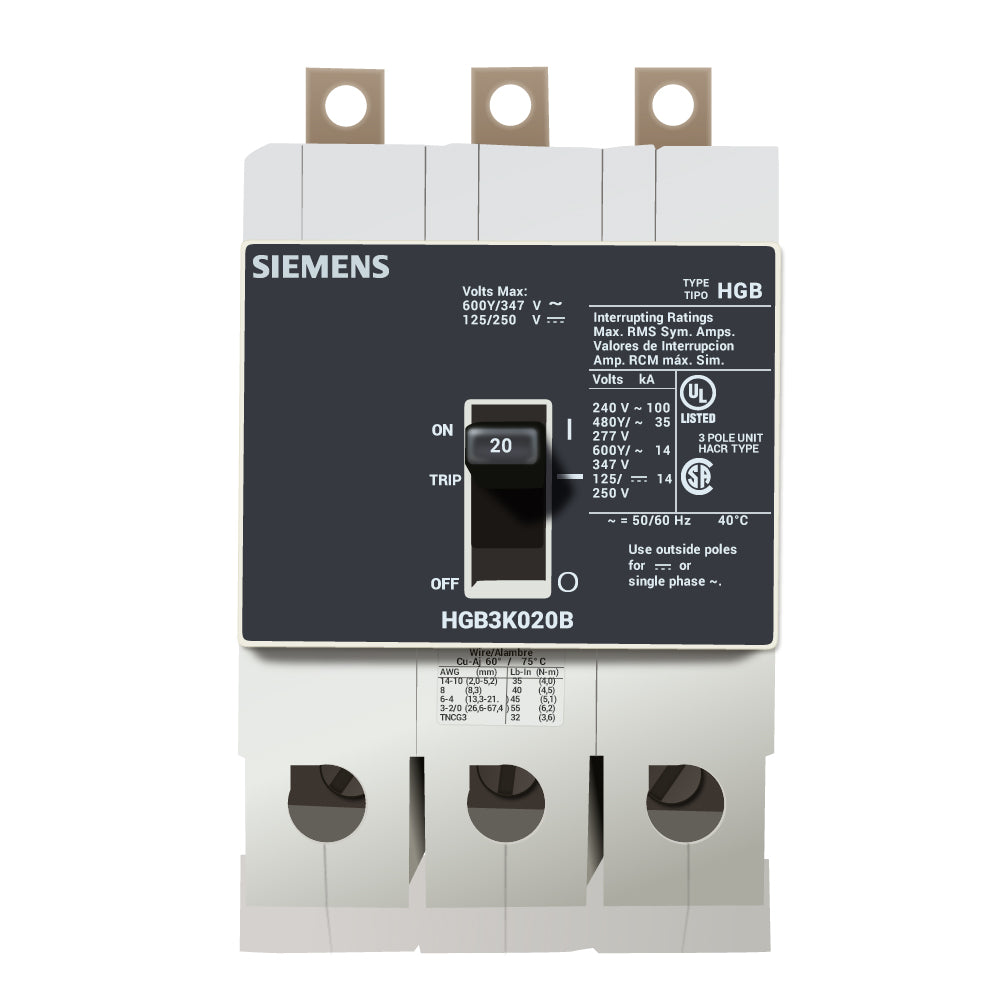

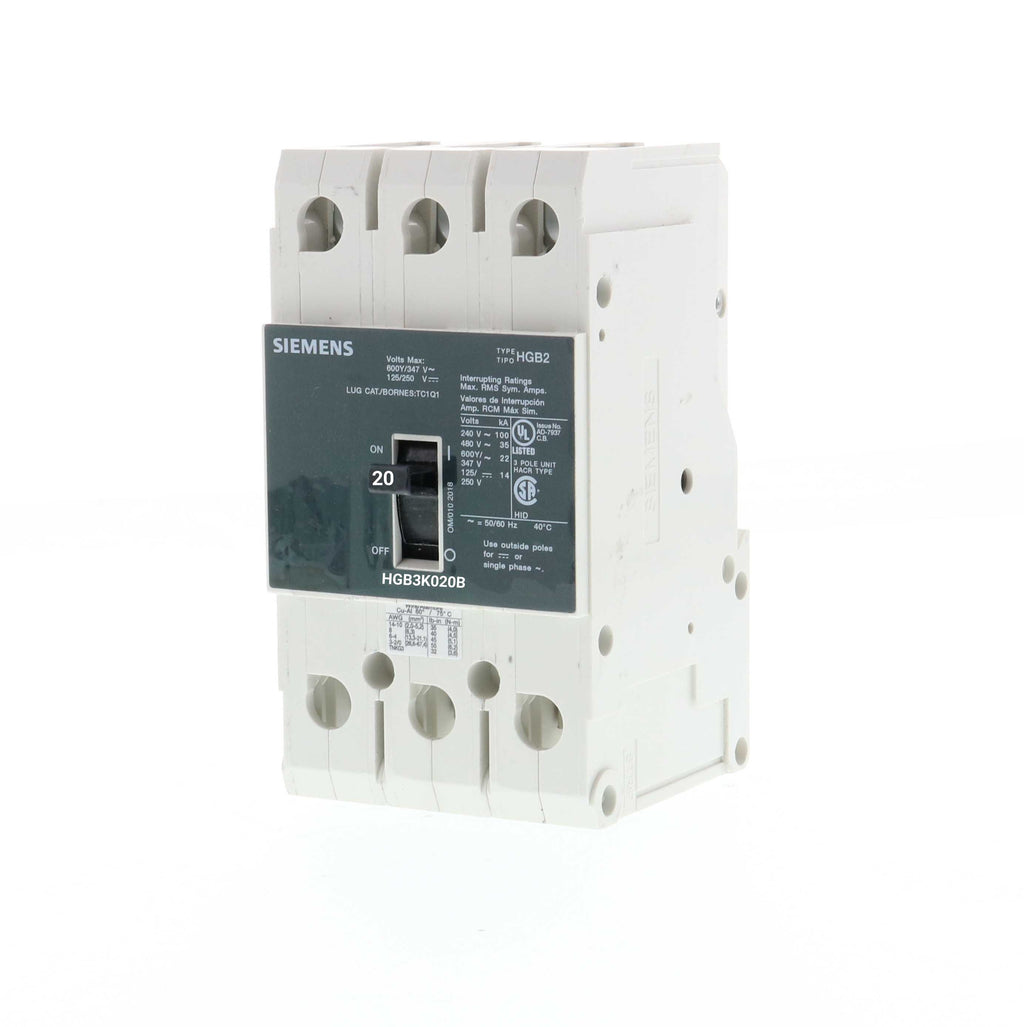

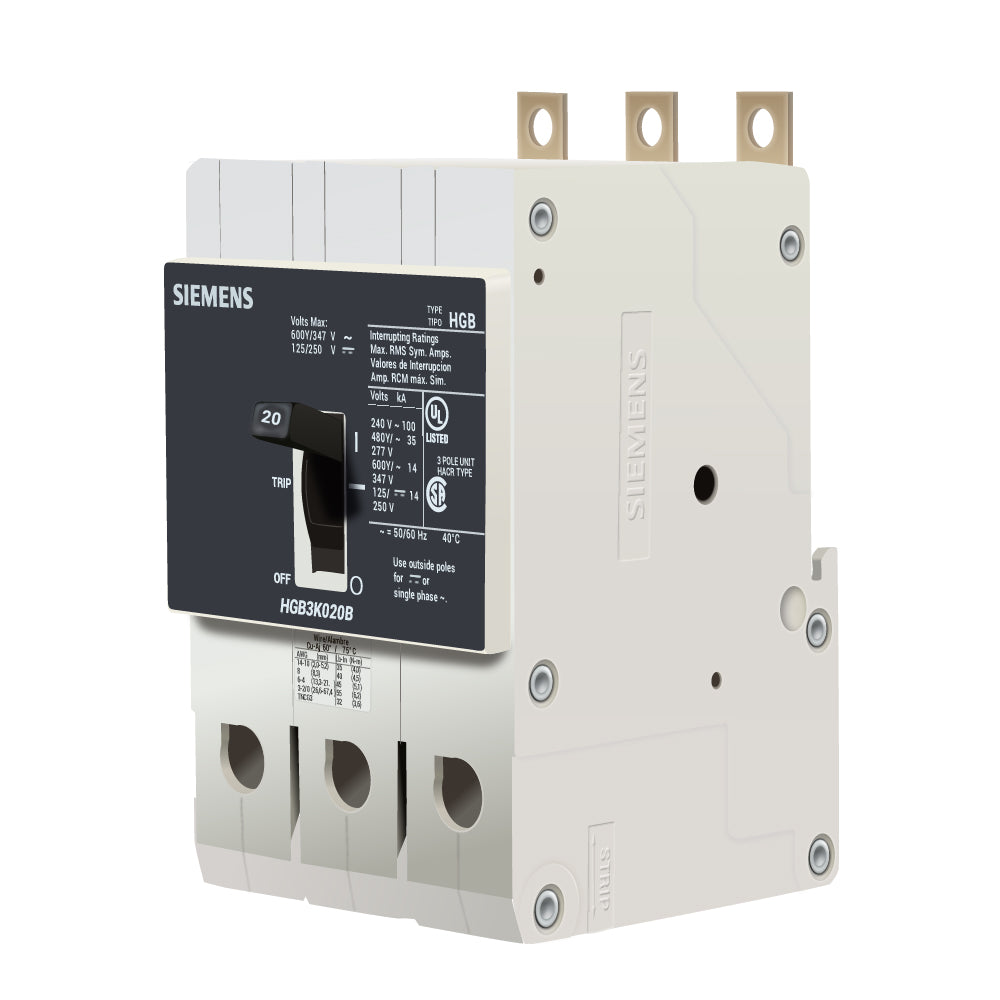

HGB3K020B is a Siemens molded case circuit breaker designed for panelboard mounting with thermal-magnetic trip protection and high breaking capacity.
This low voltage G frame circuit breaker delivers reliable overcurrent protection in industrial and commercial power distribution applications. The HGB2 series unit features a compact design suitable for integration into standard electrical panels and switchboards.
Key Specifications
- Part Number: HGB3K020B
- Manufacturer: Siemens
- Poles: 3
- Rated Current: 20A
- Maximum Voltage: 600Y/347V AC
- Interrupt Rating: 35kA at 480V
- Trip Unit: Thermal-Magnetic
- Frame: HGB (G Frame)
- Mounting: Panelboard Mount
- Series: HGB2
- Certification: UL 489
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HGB3K020B
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : GB2 Series
- Type : GB2
- Voltage : 600
- Amperage : 20
- Phase : 2
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : GB2 Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 804766339882
- GTIN : 00804766339882
- Country of Origin : Mexico
- Dimensions : 2.87 x 2.961 x 4.988 inch
- Weight : 2.756
- Certification : UL, CSA, IEC, NOM
