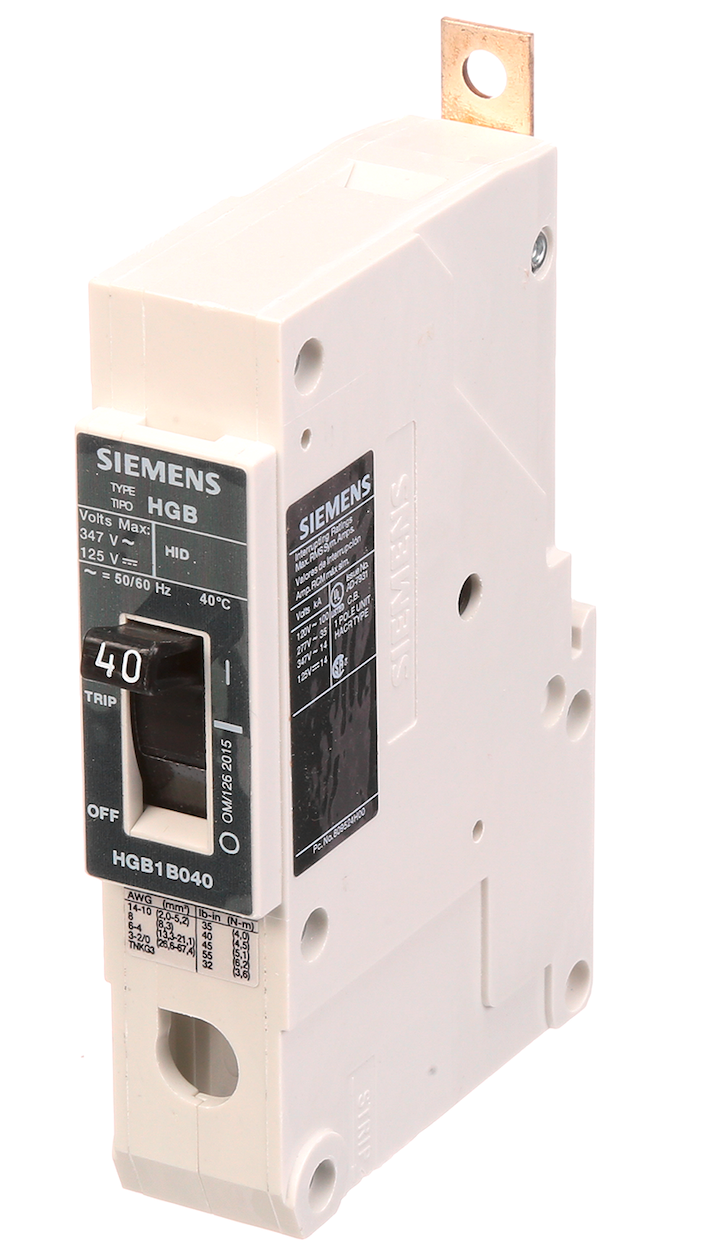

HGB1B040B - Siemens 40 Amp 1 Pole 277V Molded Case Circuit Breaker VL Series

HGB1B040B

HGB1B040B is a Siemens 1 pole molded case circuit breaker rated for 40 amps and 277 volts AC, part of the VL Series. It features a thermal magnetic trip unit for reliable protection.This Siemens HGB1B040B circuit breaker offers bolt-on mounting and a high interrupting rating of 35kA at 277V. It supports load side lugs and is suitable for reverse feed applications. The breaker is designed for use in commercial and industrial electrical distribution systems.

• Manufacturer: Siemens
• Series/Frame: VL Series (HGB Frame)
• Amperage: 40 Amps
• Voltage Rating: 277 Volts AC
• Number of Poles: 1 Pole
• Trip Unit: Thermal Magnetic
• Interrupt Rating: 35kA at 277V
• Mounting Type: Bolt-On
• Connection: Load Side Lugs
• Suitable for Reverse Feed Applications
• Wire Range: #14 to #6 AWG Copper, #12 to #6 AWG Aluminum
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGB1B040B
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : VL Series
• Type : HGB
• Voltage : 347
• Amperage : 40
• Phase : 1
• Poles : 1
• AIC rating : 35kA@277V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 887621219512
• GTIN : 00887621219512
• Country of Origin : Mexico
• Dimensions : 0.969 x 2.87 x 4.993
• Weight : 0.86
• Certification : UL, CSA, IEC, NOM
• Wire Size : 8 - 1/0 AWS (CU/AL)
