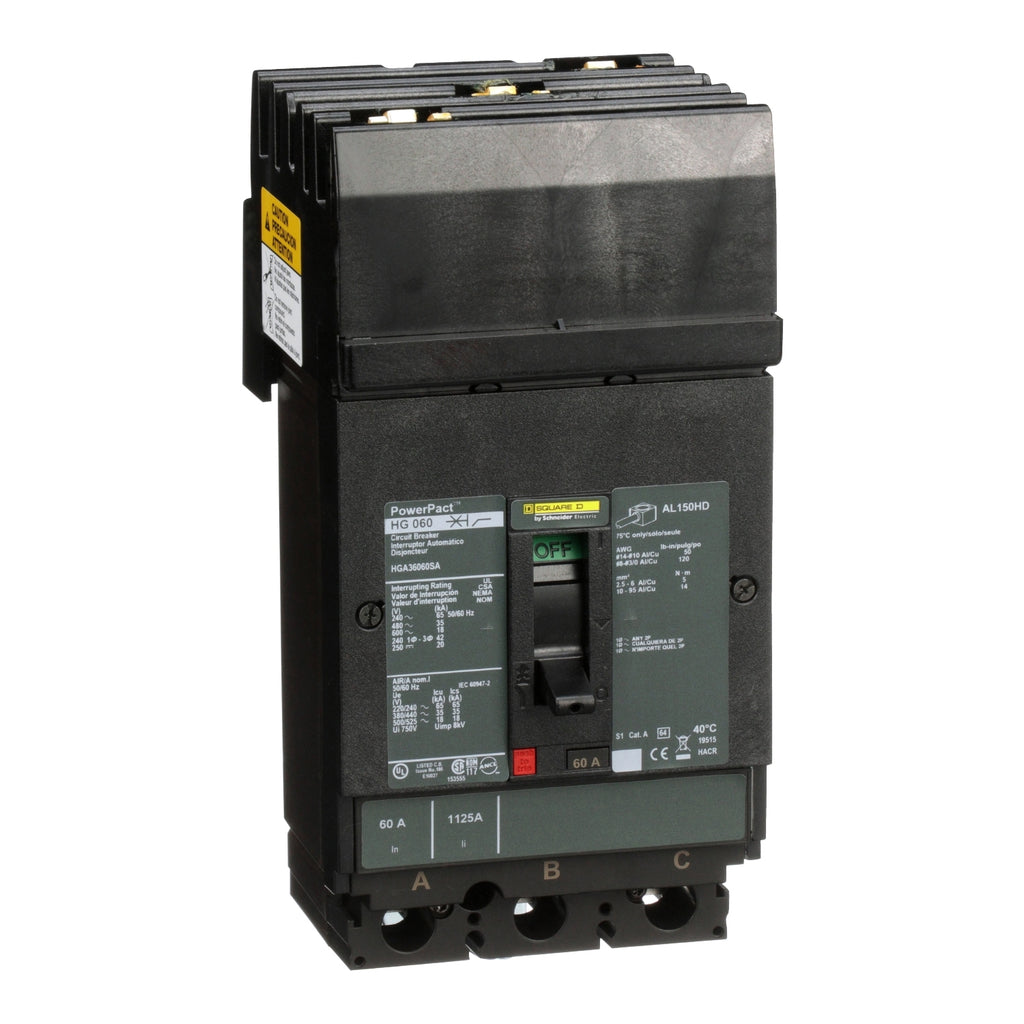

HGA36060SA - Square D 60A 3-Pole 600VAC PowerPact H I-Line Thermal Magnetic Circuit Breaker

HGA36060SA

HGA36060SA is a Square D PowerPact H series circuit breaker rated for 60 amps, 3 poles, and 600 volts AC, designed for reliable power distribution protection.This molded case circuit breaker features a thermal magnetic trip unit with an 80% continuous current rating and an 18kA interrupt rating at 600VAC. It is an I-Line frame type breaker suitable for panelboard and switchboard applications. The breaker is UL 489 listed and certified by CSA, IEC, CE, CCC, and other international standards, ensuring compliance and safety.

Key Specifications
• Amperage: 60A
• Voltage: 600VAC
• Poles: 3
• Interrupt Rating: 18kA at 600VAC
• Frame Type: PowerPact H, I-Line
• Trip Unit: Thermal Magnetic
• Continuous Current Rating: 80%
• Certifications: UL 489, CSA, IEC, CE, CCC
• Mounting Type: I-Line
• Application: Power Distribution
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

complete with 110/130Vac shunt trip




Specifications

• Part Number: HGA36060SA
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGA
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 78590141496
• GTIN : 00785901414964
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
