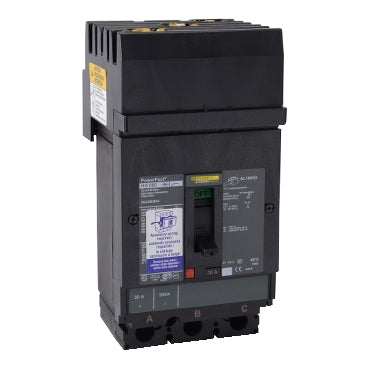

HGA36020YP - Square D PowerPact H-Frame 20A 3 Pole 600VAC 18kA I-Line Circuit Breaker

HGA36020YP

HGA36020YP is a Square D PowerPact H-Frame molded case circuit breaker designed for reliable thermal magnetic protection in industrial and commercial power distribution systems. This breaker features an I-Line plug-in mounting style, three poles, and a continuous current rating of 20 amps at 600VAC with an interrupt rating of 18kA. It is suitable for use in high-demand applications and reverse fed installations, providing dependable circuit protection with a padlock handle for added safety. Engineered for compatibility with Square D PowerPact H-Frame switchgear, the HGA36020YP breaker offers long time and instantaneous trip functions, ABC phase connection, and non-interchangeable trip units. Its robust construction and high interrupting capacity make it ideal for demanding environments where safety and reliability are critical.

• Part Number: HGA36020YP
• Manufacturer: Square D
• Series/Frame: PowerPact H-Frame
• Amperage Rating: 20A
• Number of Poles: 3
• Maximum Voltage: 600VAC
• Interrupt Rating: 18kA at 600VAC
• Mounting Type: I-Line Plug-In
• Trip Unit: Thermal Magnetic
• Continuous Current Rating: 80%
• Padlock Handle: Yes
• ABC Phase Connection: Yes

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGA36020YP
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Voltage : 600
• Amperage : 20
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
