HFDE316036L - Cutler Hammer 160A 480V 3-Pole Electronic Molded Case Circuit Breaker F-Frame LSIG Trip

HFDE316036L

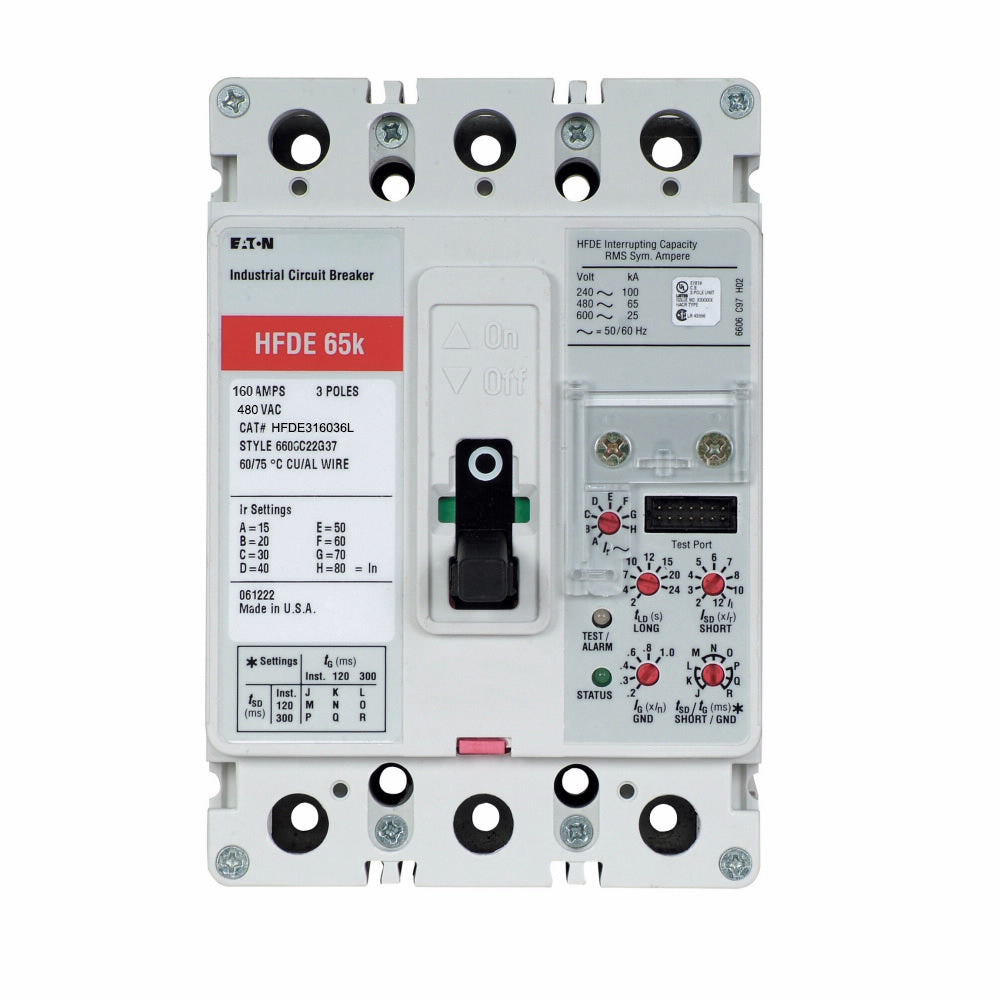

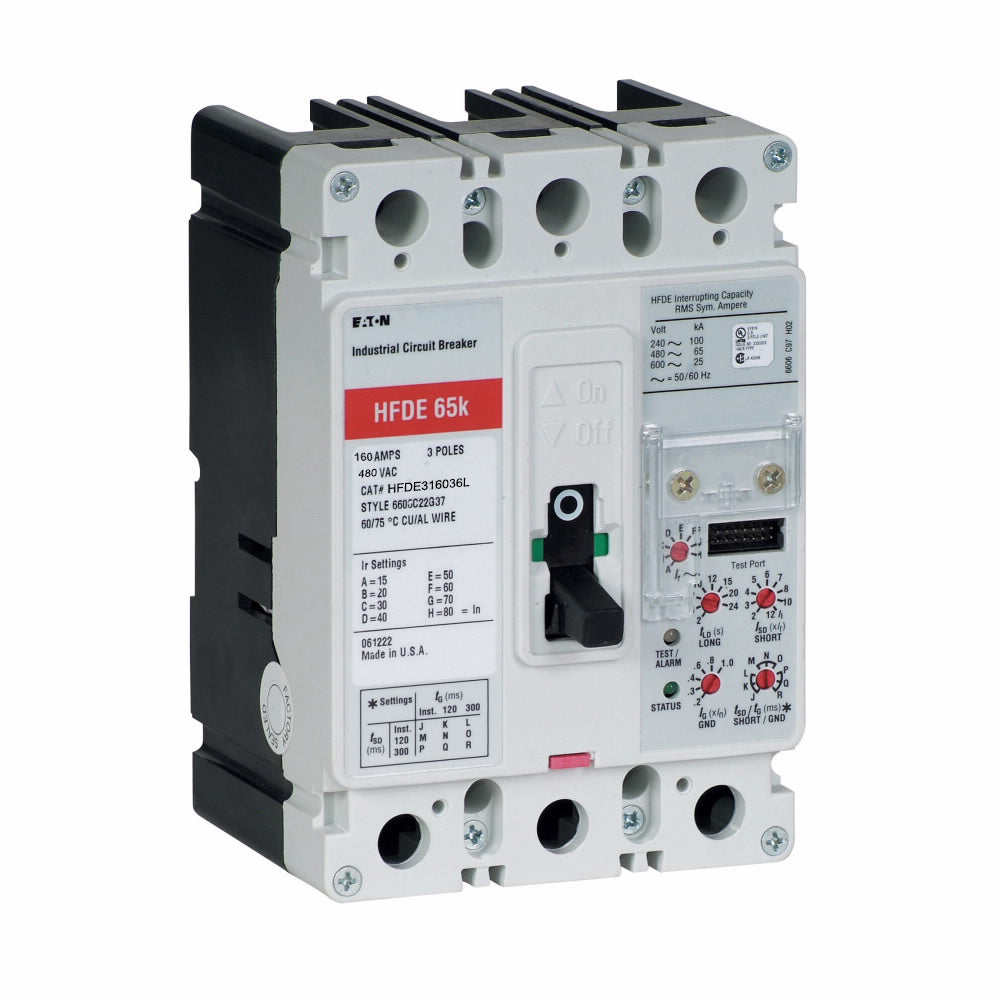

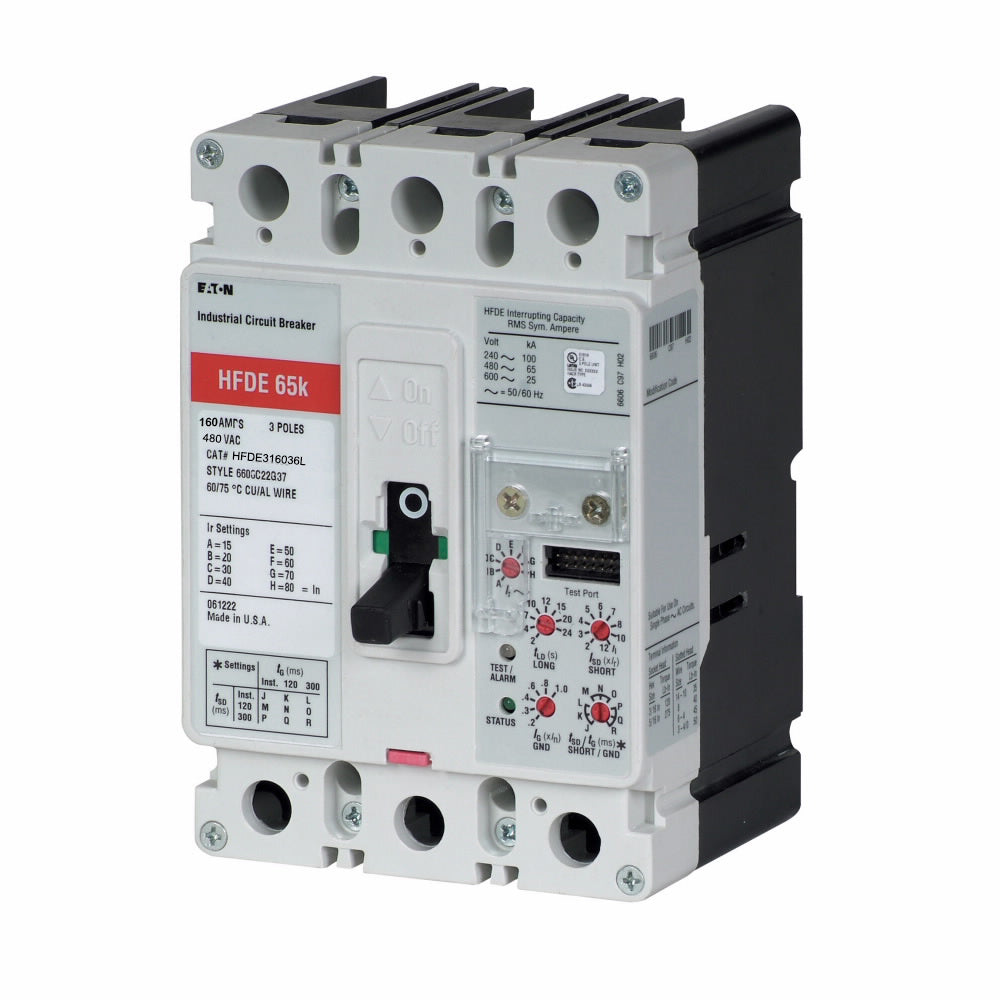

HFDE316036L is a Cutler Hammer 3-pole, 160 amp, 480 Volt electronic molded case circuit breaker with an F-frame and Digitrip 310 RMS LSIG trip unit.This Eaton Series C F-frame breaker features a high interrupting capacity of 65 kA at 480 VAC, load side feed-thru design, and electronic long-time, short-time, and instantaneous (LSIG) trip protection. It is designed for reliable circuit protection in industrial and commercial applications and is UL listed.

• Amperage: 160 A
• Voltage: 480 VAC
• Poles: 3
• Frame: F-Frame (Series C)
• Trip Unit: Digitrip 310 RMS Electronic LSIG
• Interrupt Rating: 65 kA at 480 VAC, 100 kA at 240 VAC
• Mounting Type: Load side feed-thru
• Frequency: 50/60 Hz
• UL Listed
• Weight: Approximately 4.5 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HFDE316036L
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HFDE
• Voltage : 480 AC
• Amperage : 160
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Frame Size : F Frame
• Protection : Solid State

Product Data

• UPC : 786685112756
• GTIN : 00786685112756
• Country of Origin : Dominican Republic
• Dimensions : 5 in x 7.25 in x 5 in (Length/Depth x Height x Width)
• Weight : 4.4
• Certification : UL Listed
