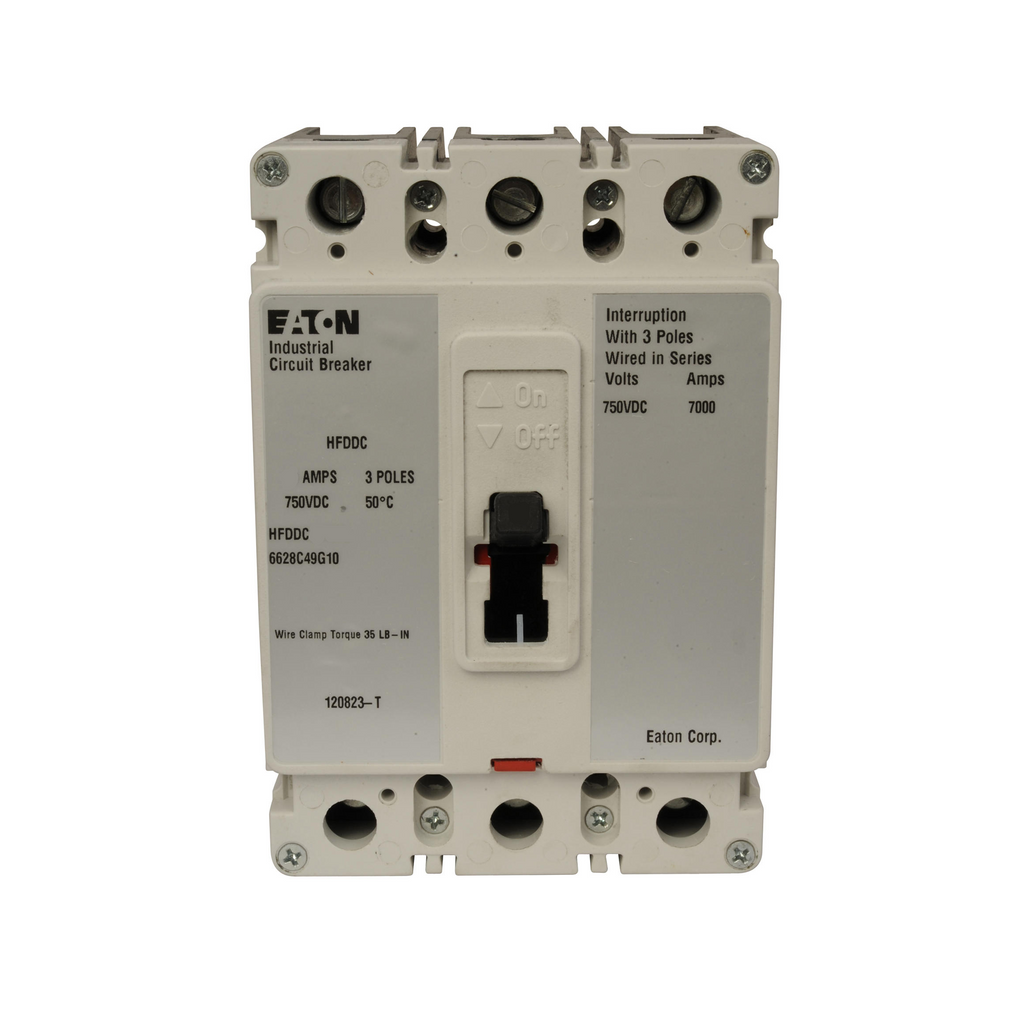

HFDDC3040L - Cutler Hammer 40A 600V DC 3-Pole Molded Case Circuit Breaker F-Frame

HFDDC3040L

HFDDC3040L is an Eaton Series C DC/PvGard complete molded case circuit breaker designed for solar and photovoltaic applications with fixed thermal and fixed magnetic trip protection.

This F-frame HFD circuit breaker features three poles rated at 40 amperes and 600 volts AC (250 volts DC capable). It includes line and load side lug terminals for feed-thru connections and delivers a 42 kAIC interrupt rating at 600 VAC. The breaker employs fixed thermal and fixed magnetic trip functions for reliable overcurrent protection in grounded or ungrounded systems and is tested to operate in extreme ambient conditions from -40 to 70 degrees Celsius.

• Amperage Rating: 40A
• Voltage Rating: 600 VAC / 250 VDC
• Number of Poles: 3
• Frame Type: F-Frame
• Circuit Breaker Type: HFD
• Trip Unit: Fixed Thermal / Fixed Magnetic
• Interrupt Rating: 42 kAIC at 600 VAC
• Connection Type: Feed-Thru with Line and Load Terminals
• Mounting: Panel
• Weight: 6.3 lbs
• Certification: UL 489
• Warranty: One year from installation or eighteen months from shipment, whichever occurs first

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HFDDC3040L
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HFDDC
• Voltage : 616 DC
• Amperage : 40
• Phase : 3
• Poles : 3
• AIC rating : 42kA@600V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 786679056387
• GTIN : 00786679056387
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 6.3
• Certification : UL 489
