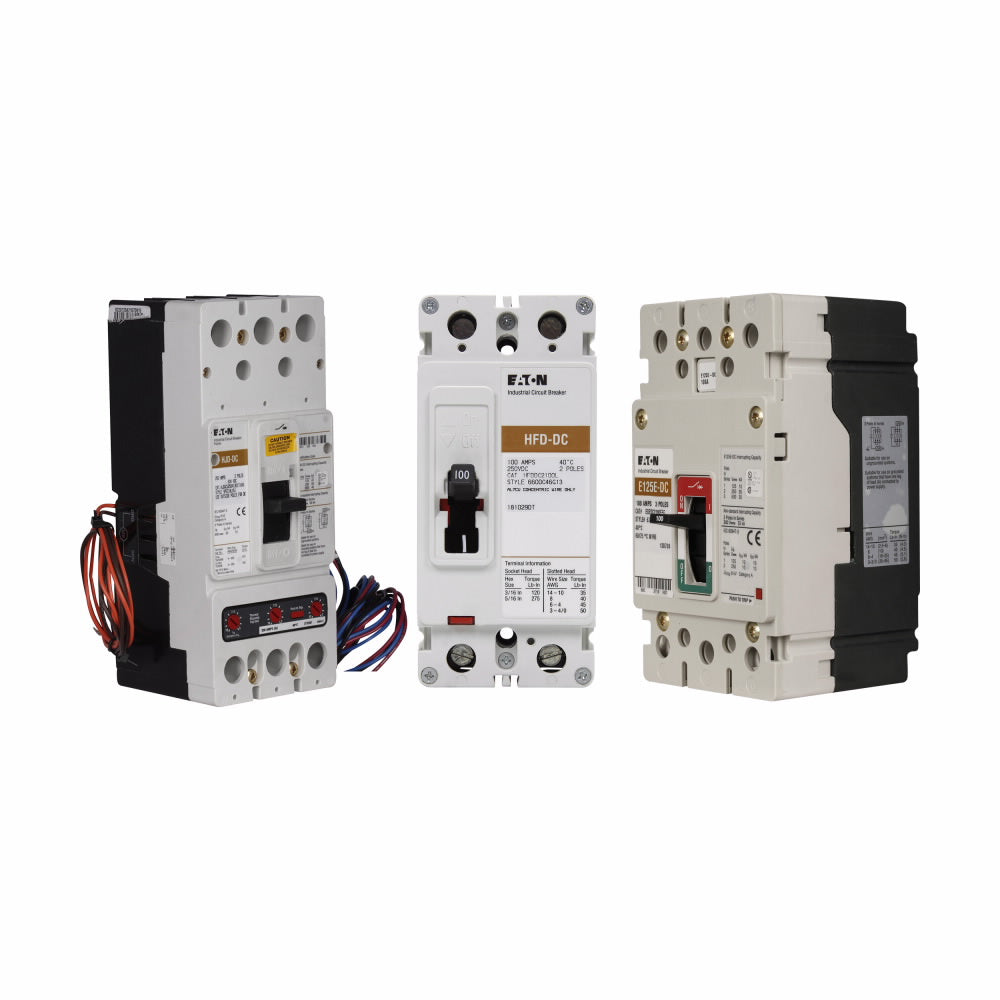

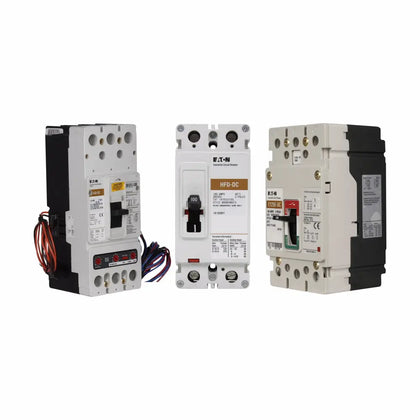

HFDDC2200L - Cutler Hammer 200A 2-Pole 600V DC Circuit Breaker Complete Breaker Frame

HFDDC2200L

HFDDC2200L is a two-pole molded case circuit breaker manufactured by Eaton (Cutler-Hammer) designed for DC and AC applications with a 42 kA interrupt rating at 600V. This feed-thru circuit breaker features thermal magnetic trip functions and line and load side lug terminals for flexible installation in power distribution systems. The breaker is rated for 200 amperes at 600 volts AC or 250 volts DC and is constructed with a glass polyester material for durability in demanding environments. It operates reliably across extreme ambient conditions from -40 to 70 degrees Celsius and can be applied in both grounded and ungrounded systems.

• Amperage Rating: 200A
• Voltage Rating: 600V AC / 250V DC
• Number of Poles: 2
• Frame Type: F Frame (HFDDC)
• Interrupt Rating: 42 kA
• Trip Type: Thermal Magnetic
• Terminal Type: Line and Load Side Lug Terminals
• Material: Glass Polyester
• Mounting Type: Surface
• Temperature Rating: -40 to 70 degrees Celsius
• Series: C Series
• Connection Type: Line/Load

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HFDDC2200L
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HFDDC
• Voltage : 608 DC
• Amperage : 200
• Phase : 1
• Poles : 2
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 786685481456
• GTIN : 00786685481456
• Country of Origin : United States
• Dimensions : 3.38 in x 2.75 in x 2.75 in (Length/Depth x Height x Width)
• Weight : 3
• Certification : UL 489
