Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
HFDDC2100L

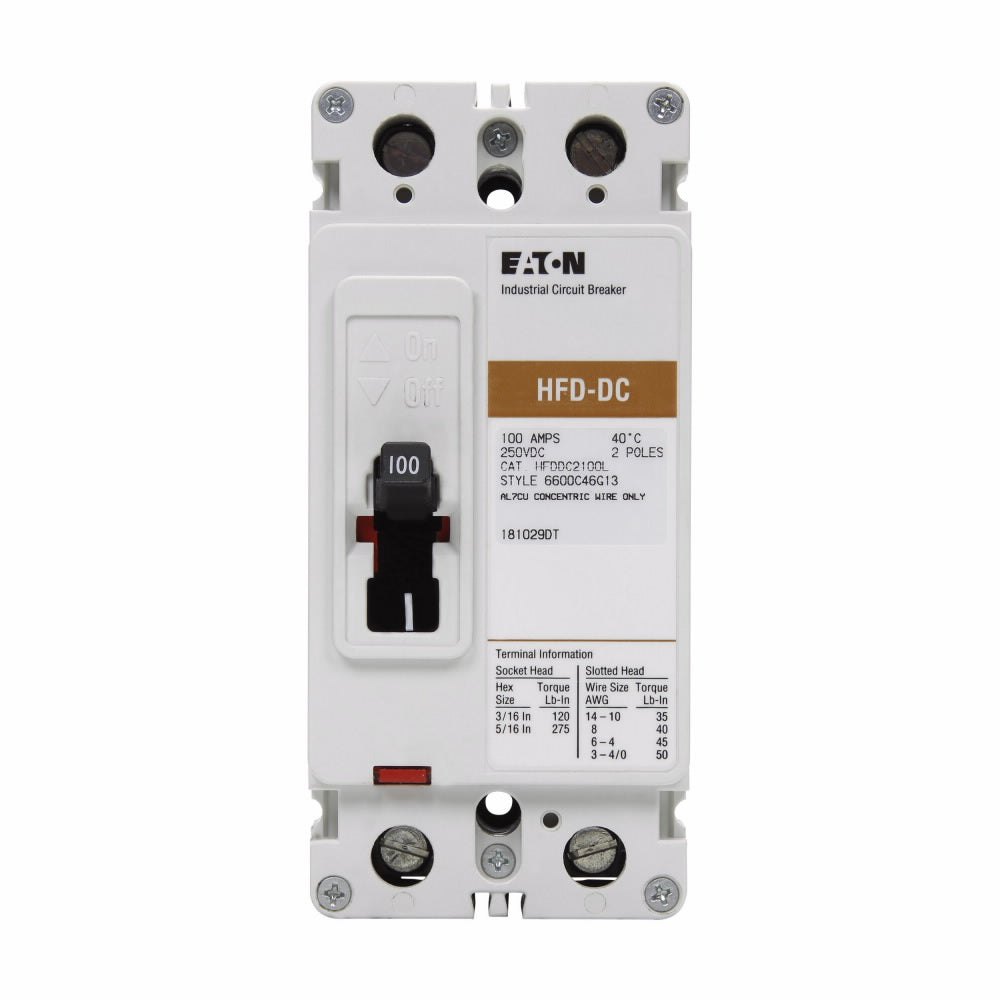

HFDDC2100L is a 2 pole thermal magnetic molded case circuit breaker rated for 100 amps and 600 volts AC, designed for reliable circuit protection.This Cutler Hammer HFDDC2100L breaker features a fixed thermal and fixed magnetic trip unit, suitable for DC and AC applications up to 600 VAC and 250 VDC. It is part of the Eaton Series C HFD line with an F-frame construction, providing a 42 kA interrupting rating at 600 volts. The breaker is designed for panel mounting and offers robust protection for photovoltaic and general power distribution systems.
- Key Specifications
- Manufacturer: Cutler Hammer (Eaton)
- Amperage: 100 A
- Voltage Rating: 600 VAC, 250 VDC
- Poles: 2
- Frame Type: F-Frame
- Trip Unit: Fixed Thermal / Fixed Magnetic
- Interrupt Rating: 42 kA at 600 VAC
- Mounting Type: Panel Mount
Specifications
- Part Number: HFDDC2100L
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : HFDDC
- Voltage : 606 DC
- Amperage : 100
- Phase : 1
- Poles : 2
- AIC rating : 42kA@600V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 786679063385
- GTIN : 00786679063385
- Country of Origin : Dominican Republic
- Dimensions : 3.38 in x 4 in x 2.75 in (Length/Depth x Height x Width)
- Weight : 3.1
- Certification : UL 489
