Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
HFD2200

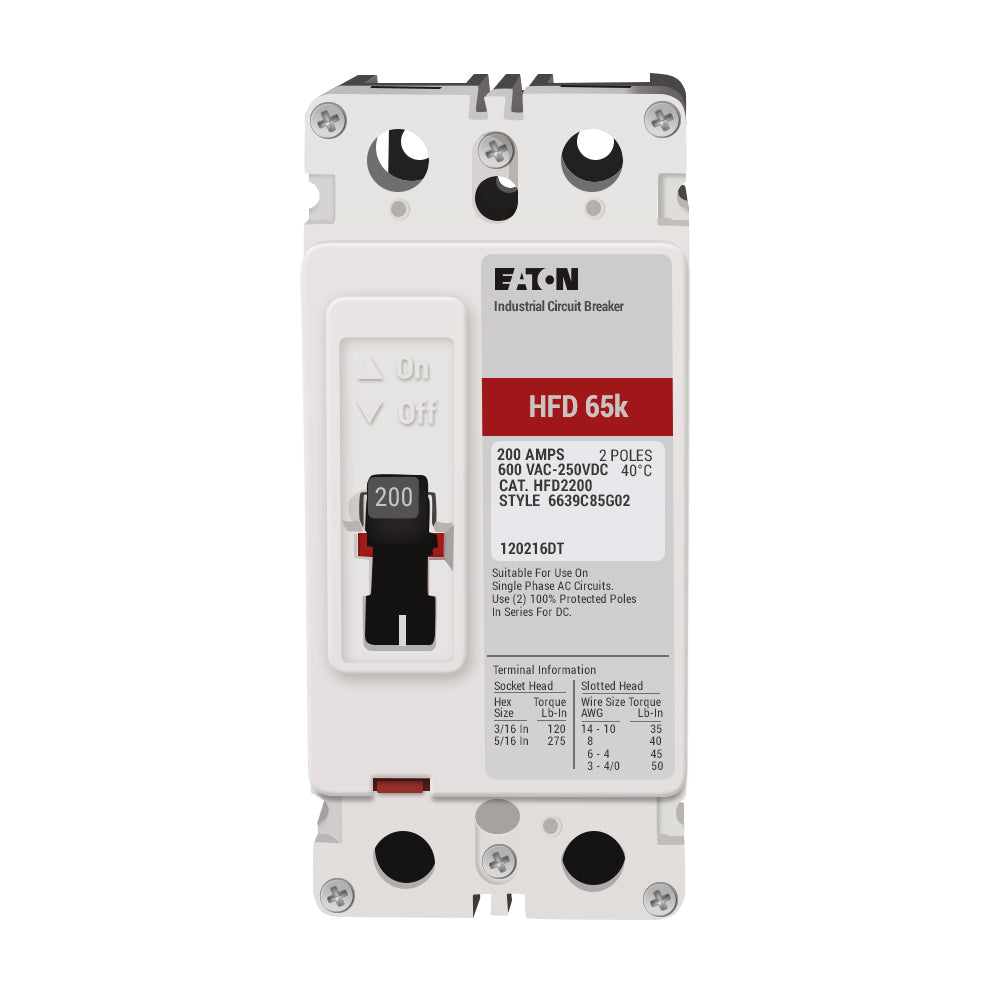

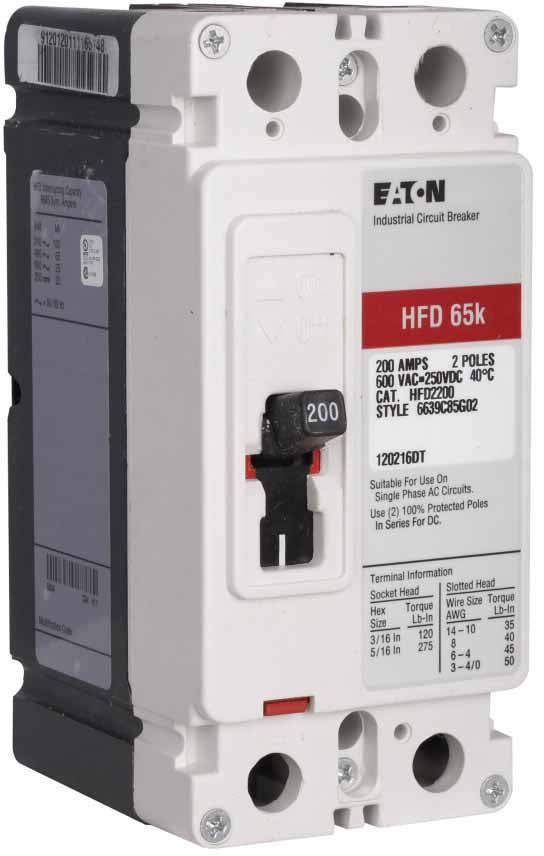

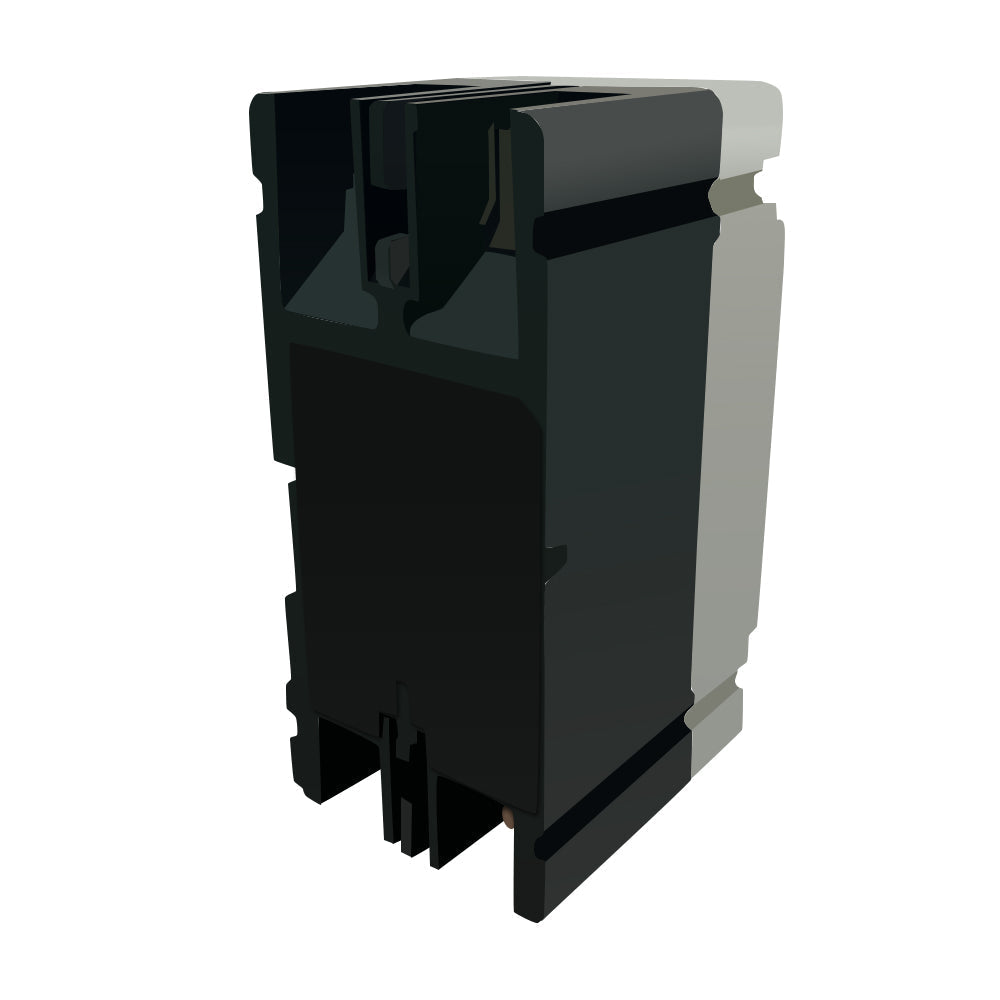

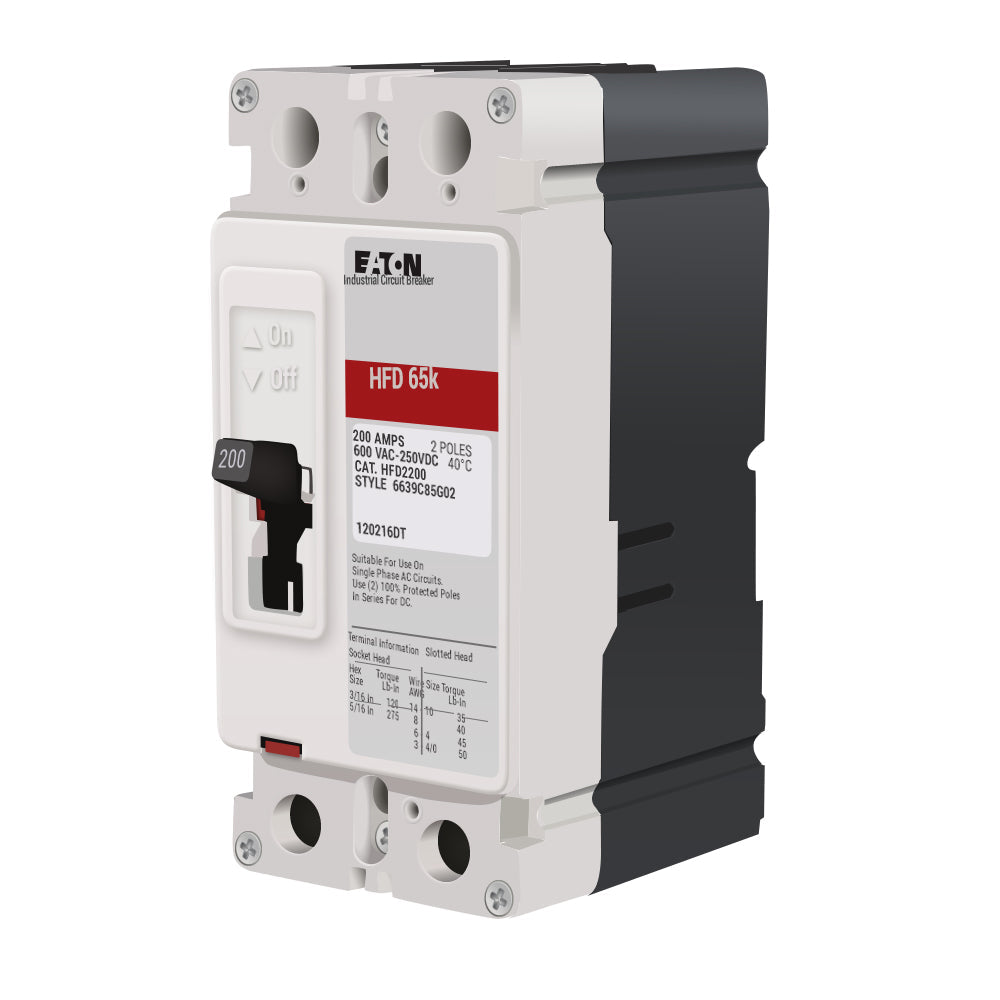

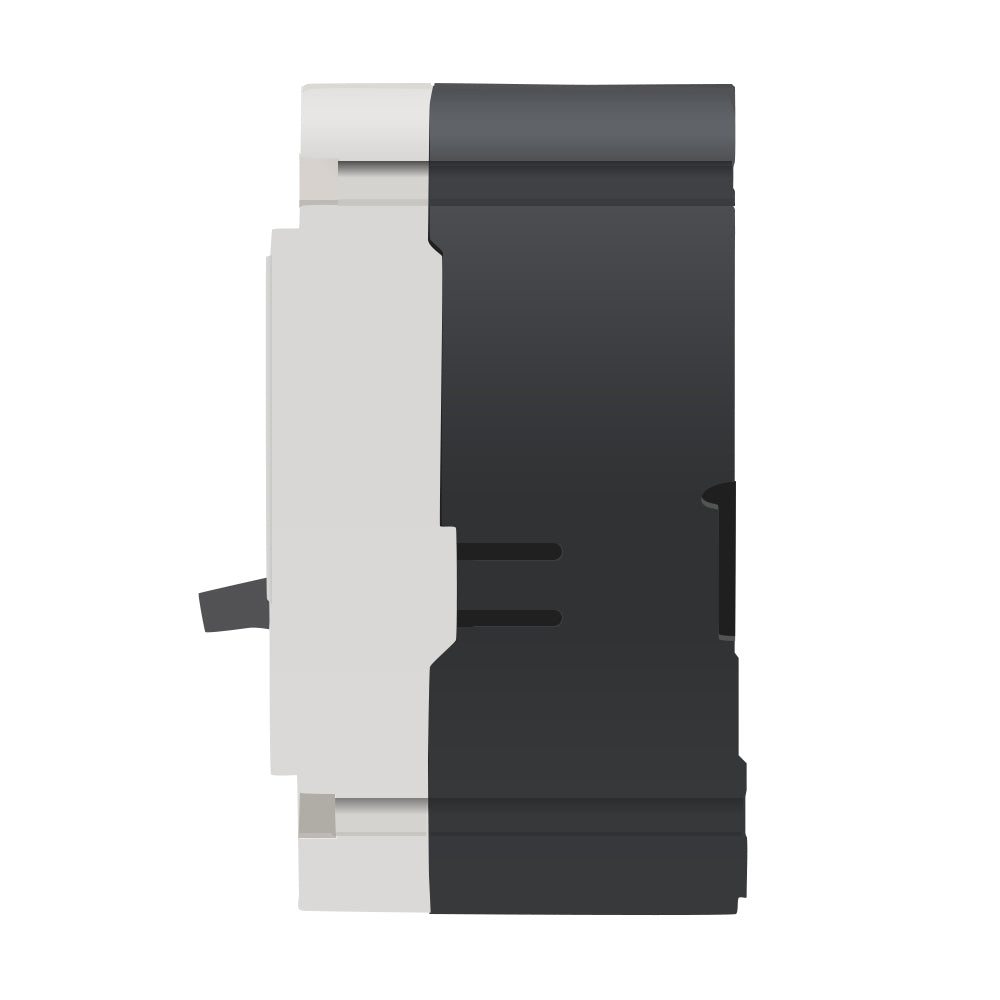

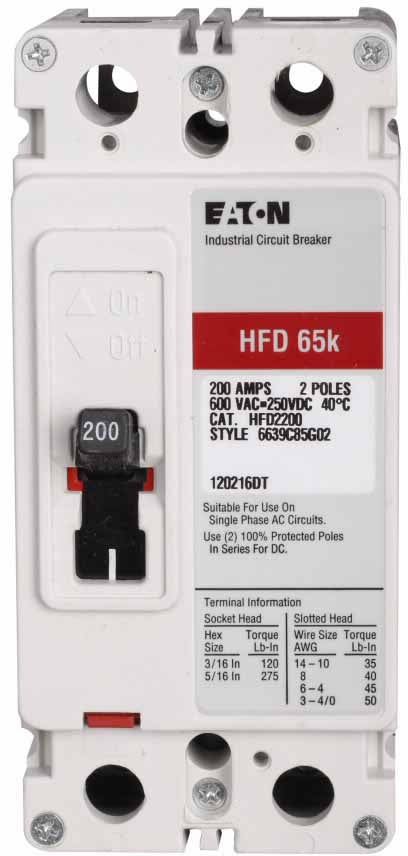

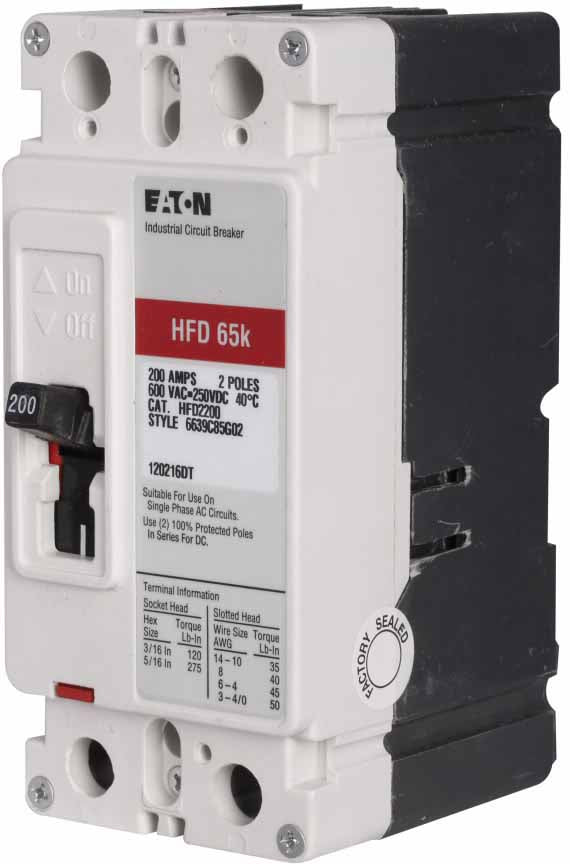

HFD2200 - Eaton Series C molded case circuit breaker, 200A, 2 pole, 600VAC rated with thermal-magnetic trip.The HFD2200 is a Series C, F-frame molded case circuit breaker from Eaton featuring fixed thermal-magnetic trip, bolt-on mounting, and high interrupting capacity including 65kA at 480VAC. It supports panel mount applications with standard pressure line and load terminals, suitable for industrial single-phase use.
- Part Number: HFD2200
- Manufacturer: Eaton
- Amperage: 200A
- Voltage: 600VAC, 250VDC
- Poles: 2
- Series/Frame: Series C, F-Frame
- Trip Unit: Thermal-Magnetic, Fixed Trip
- Mounting Type: Bolt-On, Panel Mount
- Interrupt Rating: 65kA at 480VAC, 100kA at 240VAC
- Certifications: UL Listed, CSA, CE
Specifications
- Part Number: HFD2200
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : HFD
- Voltage : 600 AC
- Amperage : 200
- Phase : 1
- Poles : 2
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Frame Size : F Frame
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 786679015322
- GTIN : 00786679015322
- Country of Origin : Dominican Republic
- Dimensions : 3.38 in x 2.75 in x 2.75 in (Length/Depth x Height x Width)
- Weight : 4.5
- Certification : UL Listed
