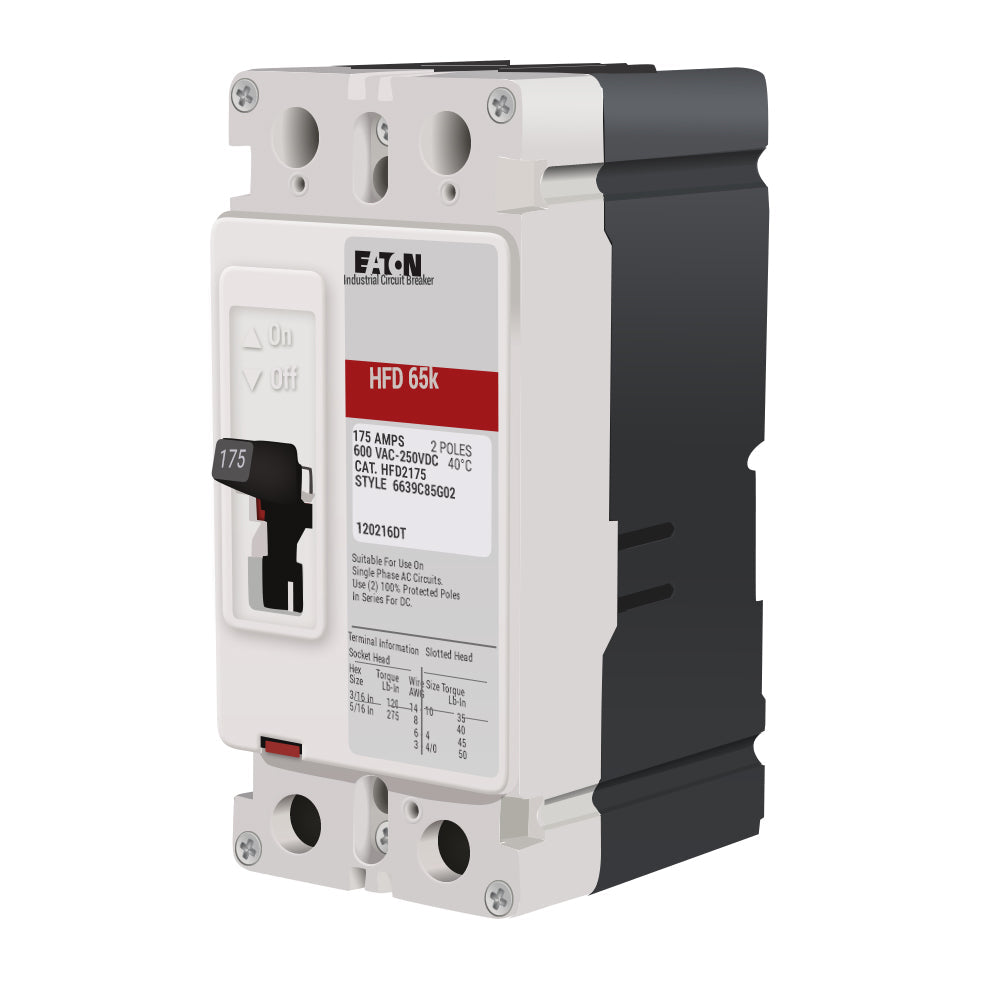

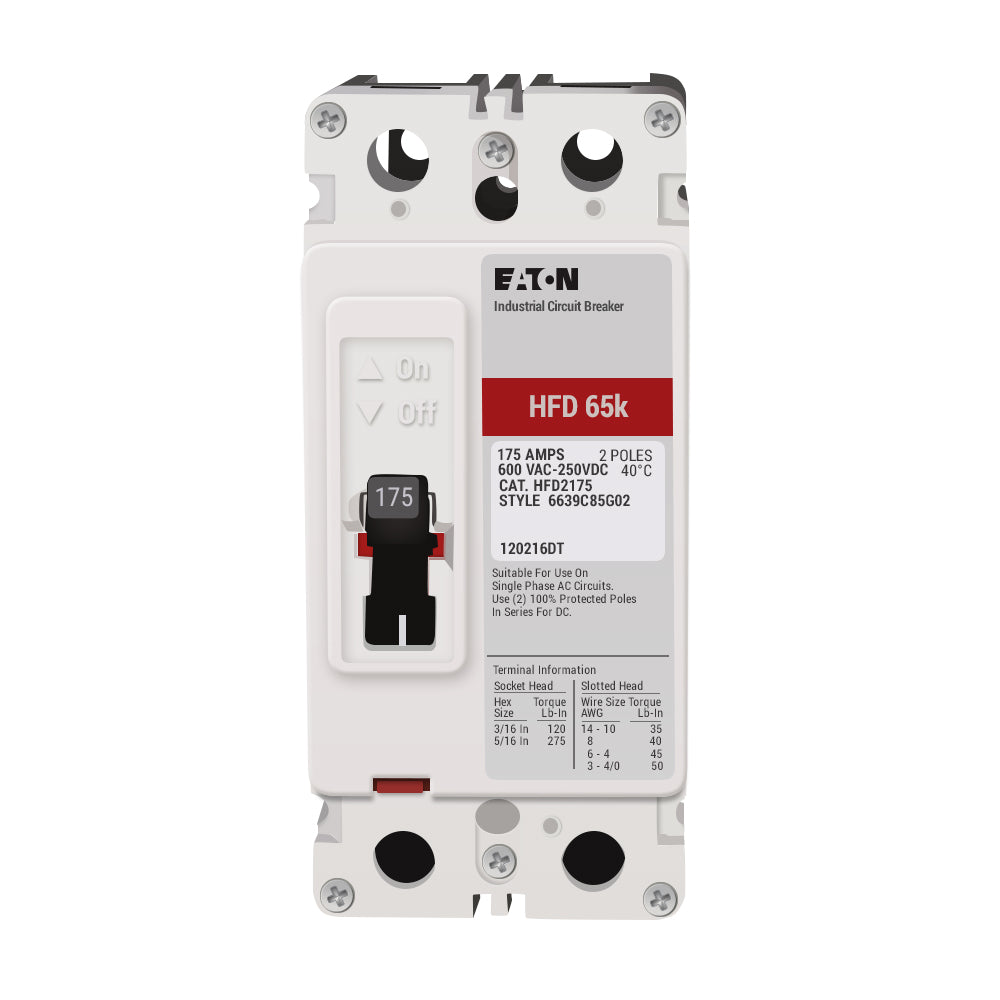

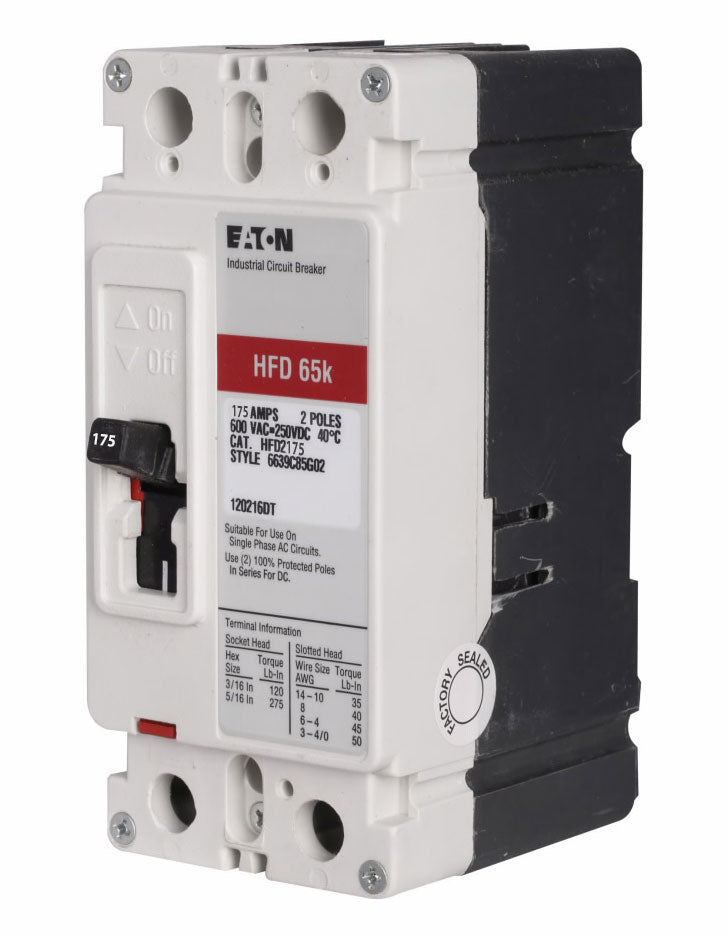

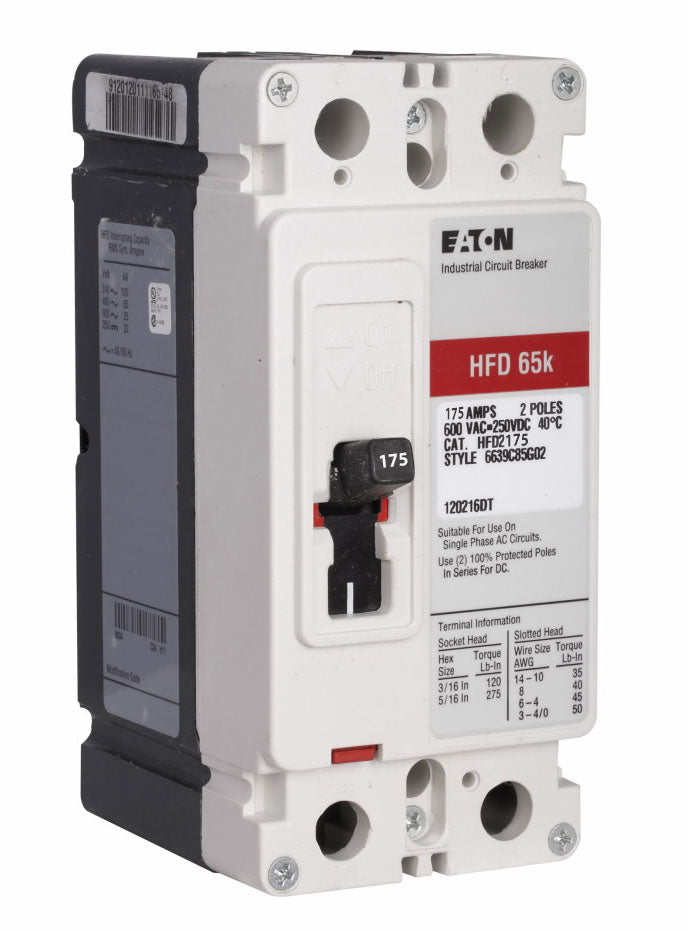

HFD2175 - Cutler Hammer 175A 600V 2 Pole Series C Thermal Magnetic Circuit Breaker

HFD2175

HFD2175 is an Eaton Cutler-Hammer Series C molded case circuit breaker designed for industrial and commercial electrical systems requiring high interrupting capacity protection.HFD2175 is a 2-pole, 175-amp circuit breaker rated for 600V AC with a 65kA short circuit interrupt rating at 480V. This F-frame breaker features non-interchangeable thermal magnetic trip functions providing long-time and instantaneous protection against overcurrents and electrical faults. The bolt-on connection type with load side lug terminals allows for flexible installation in panel-mounted applications. Built to NEMA AB1-1993 standards, it operates at 50/60 Hz frequency and is suitable for single-phase systems.

• Part Number: HFD2175
• Manufacturer: Eaton Cutler-Hammer
• Series: C Series
• Frame Type: F Frame
• Poles: 2
• Amperage: 175A
• Voltage: 600 VAC / 250 VDC
• Interrupt Rating: 65kA at 480V
• Trip Function: Long-Time and Instantaneous (LI)
• Protection Type: Thermal Magnetic
• Connection: Bolt-On
• Dimensions: 5 inches H x 3.5 inches W x 7.5 inches D
• Weight: 3 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HFD2175
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HFD
• Voltage : 600 AC
• Amperage : 175
• Phase : 1
• Poles : 2
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : F Frame
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679015339
• GTIN : 00786679015339
• Country of Origin : United States
• Dimensions : 7.5 in x 5 in x 3.5 in (Length/Depth x Height x Width)
• Weight : 3
• Certification : UL Listed
