Product Info
- Manufacturer:Westinghouse
- Sub-Category:Molded Case
Description
HFD1125L

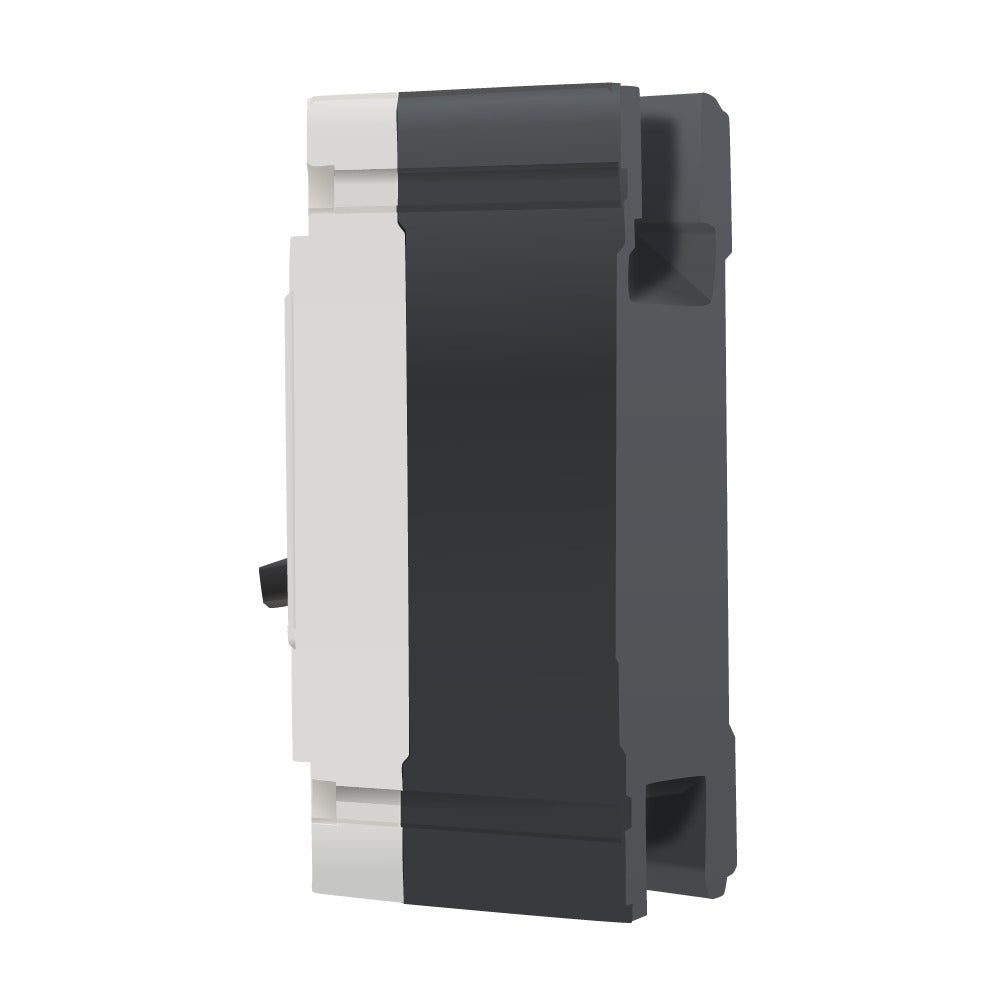

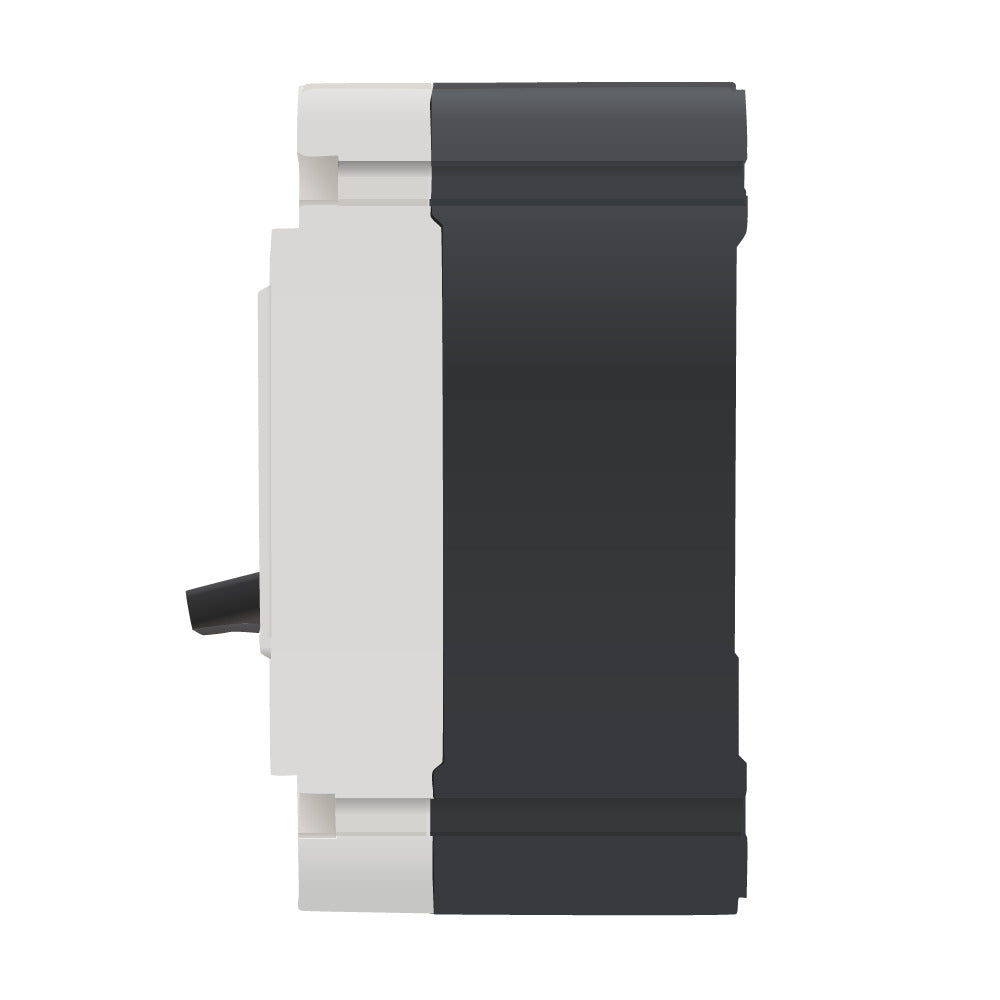

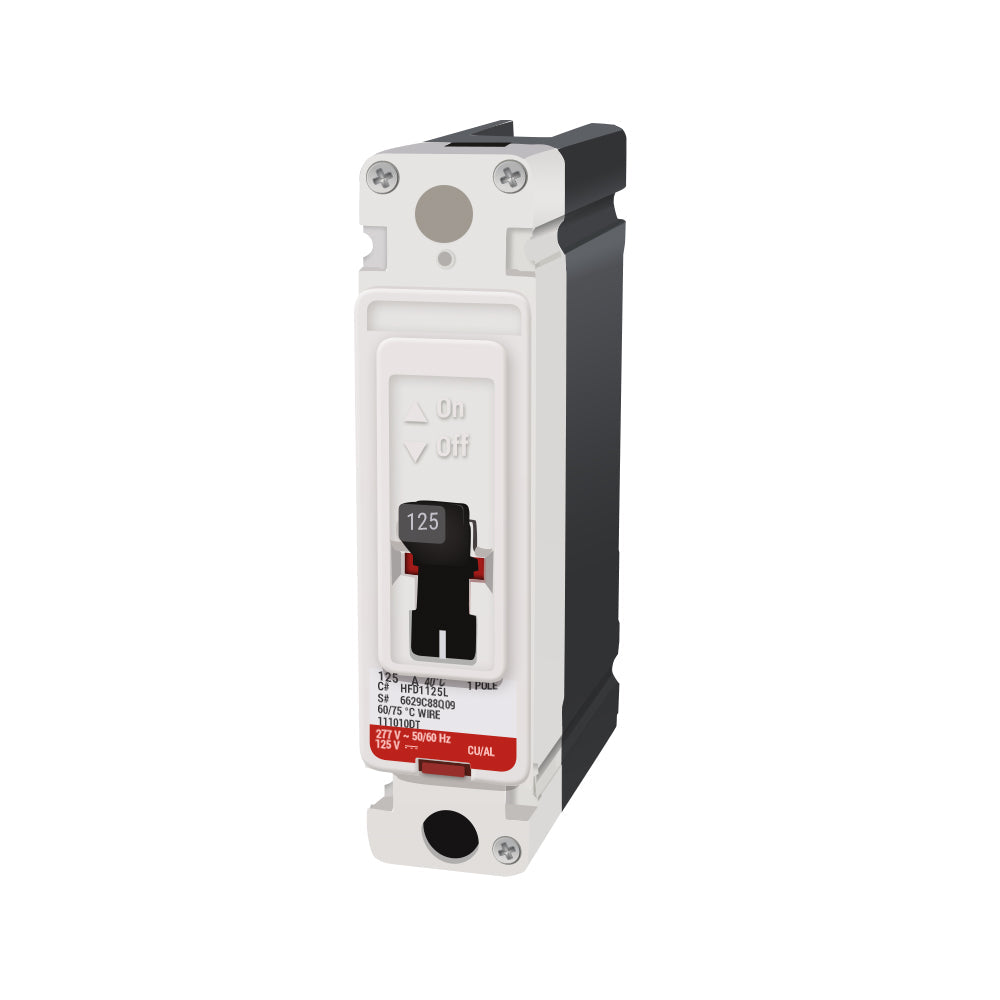

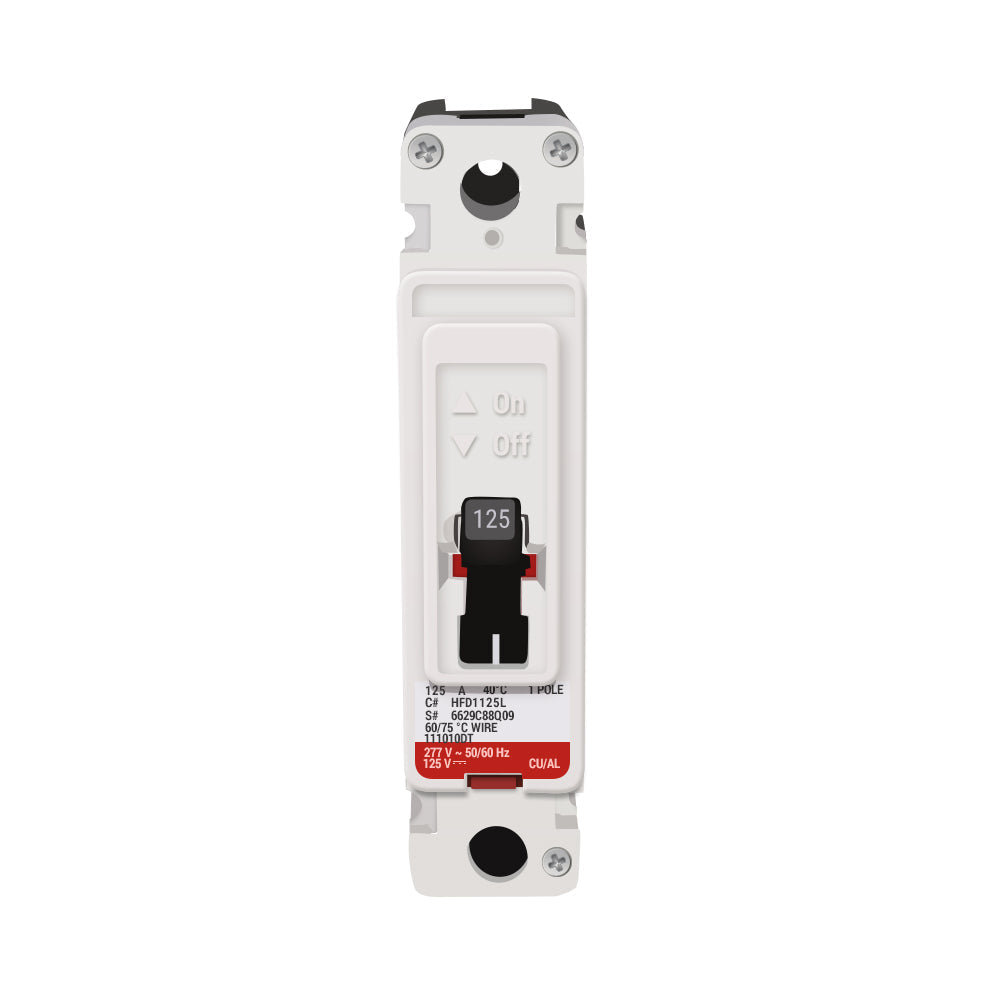

HFD1125L - Westinghouse Series C HFD molded case circuit breaker, 1-pole, 125A, 277V rated.This HFD1125L is a fixed thermal-magnetic trip molded case circuit breaker from the F-frame Series C family by Westinghouse (Eaton/Cutler-Hammer). It provides reliable overcurrent protection with 65kA interrupt rating at 277V, suitable for line and load applications at 50/60 Hz.
- Part Number: HFD1125L
- Manufacturer: Westinghouse
- Type: Molded Case Circuit Breaker
- Poles: 1
- Amperage: 125A
- Voltage: 277V AC / 347V AC max / 125V DC
- Frame: F-Frame
- Series: Series C HFD
- Trip Unit: Fixed Thermal-Magnetic
- Interrupt Rating: 65kA@277V / 100kA@240V
- Mounting: Feed-Thru (Line/Load)
Specifications
- Part Number: HFD1125L
- Manufacturer : Westinghouse
- Brand : Westinghouse
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : HFD
- Voltage : 277 AC
- Amperage : 125
- Phase : 1
- Poles : 1
- AIC rating : 65kA@277V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 786679247808
- Country of Origin : Dominican Republic
- Dimensions : 3.38 in x 6 in x 1.38 in (Length/Depth x Height x Width)
- Weight : 4.5
- Certification : UL Listed
