Product Info
- Manufacturer:Siemens
- Sub-Category:Disconnect
Description
HF367

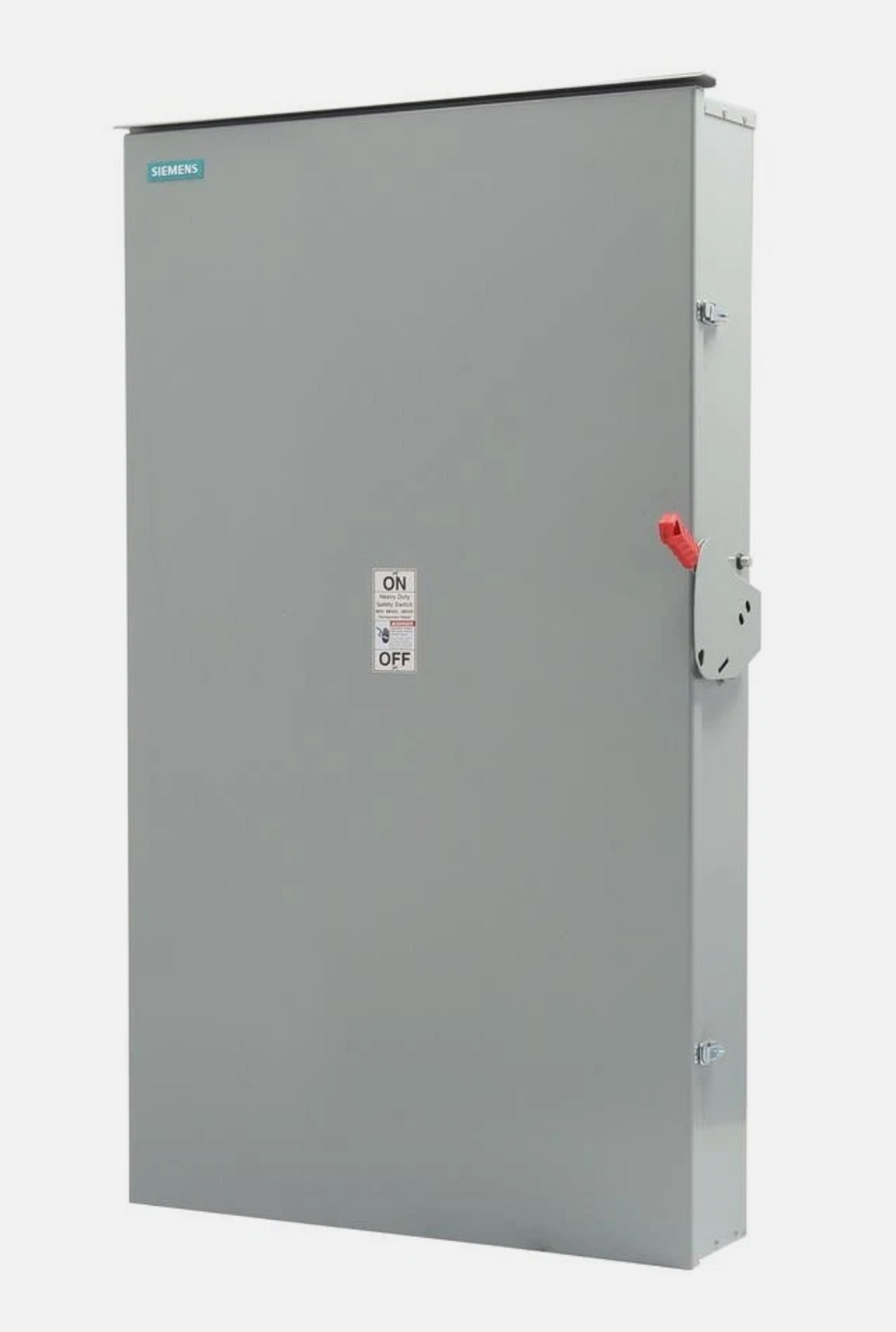

HF367 - Siemens Heavy Duty Fusible Safety Switch, 800 Amp, 600 VAC, three pole, NEMA 1 enclosure.This Siemens HF367 is a Type VBII enclosed fusible heavy duty low voltage single throw safety switch designed for reliable circuit protection in indoor applications. It features quick-make quick-break operation, visible blade double break switching, and arc chutes for enhanced durability. Rated for 600 VAC with 800 A capacity, it accepts Class H/J/K/L/R/T time delay fuses and includes defeatable dual cover interlock.
- Amperage Rating: 800 A
- Voltage Rating: 600 VAC
- Number of Poles: 3
- Enclosure Type: NEMA 1
- Fusible: Yes, 3-pole 3-fuse
- Short Circuit Current Rating: 200 kA
- Frequency: 60 Hz
- Phase: 3
- Contact Form: TPST
- Mounting Type: Surface
Specifications
- Part Number: HF367
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Disconnect
- Section : Fusible Disconnect Switch
- Family : VBII Series
- Type : HF
- Voltage : 600 AC AC
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
- Fuse Class : L
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 1
- Compatible Frames : PGP
Product Data
- UPC : 783643151062
- GTIN : 00783643151062
- Country of Origin : Mexico
- Dimensions : 72.835 x 42.913 x 11.811 inch
- Weight : 350.733
- Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
- Certification : UL listed
