HF327NR - Siemens 800A 240V 3-Pole Heavy Duty Fusible Safety Switch Type 3R

HF327NR

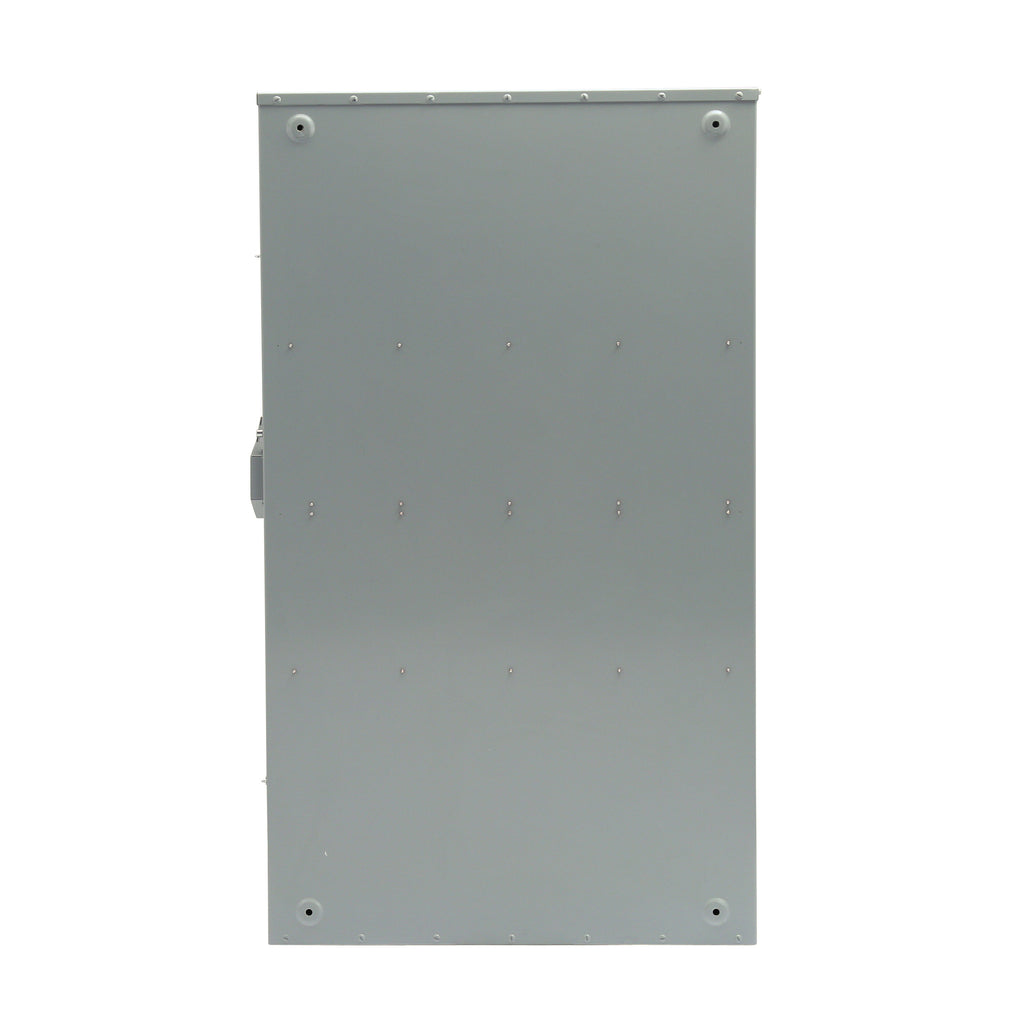

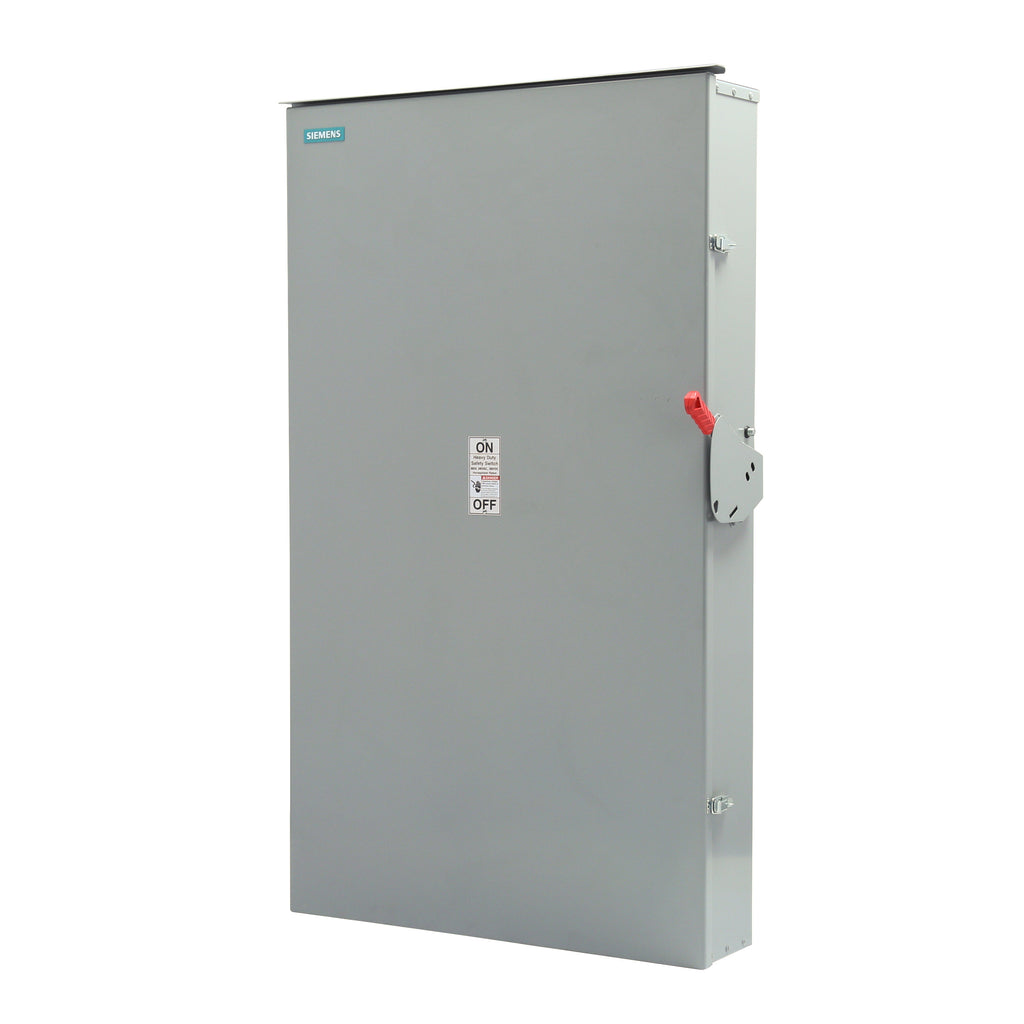

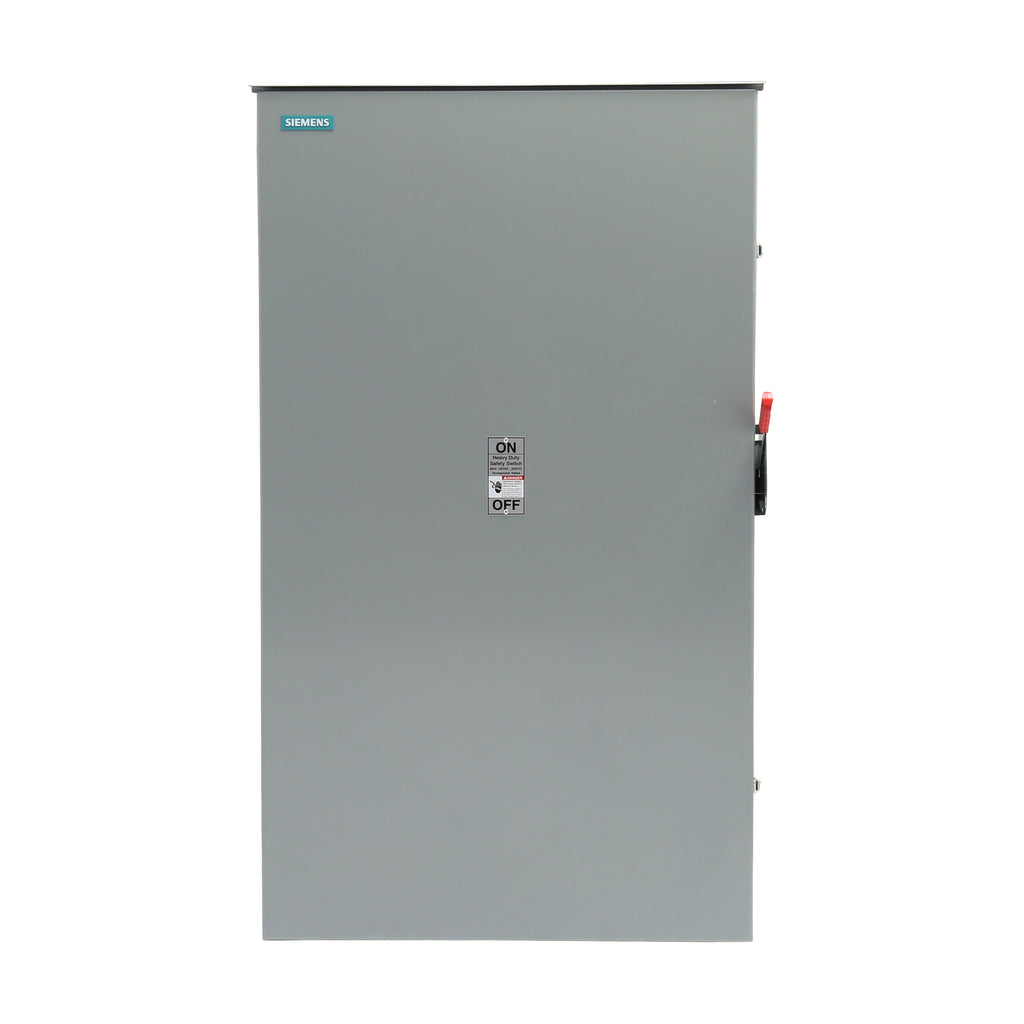

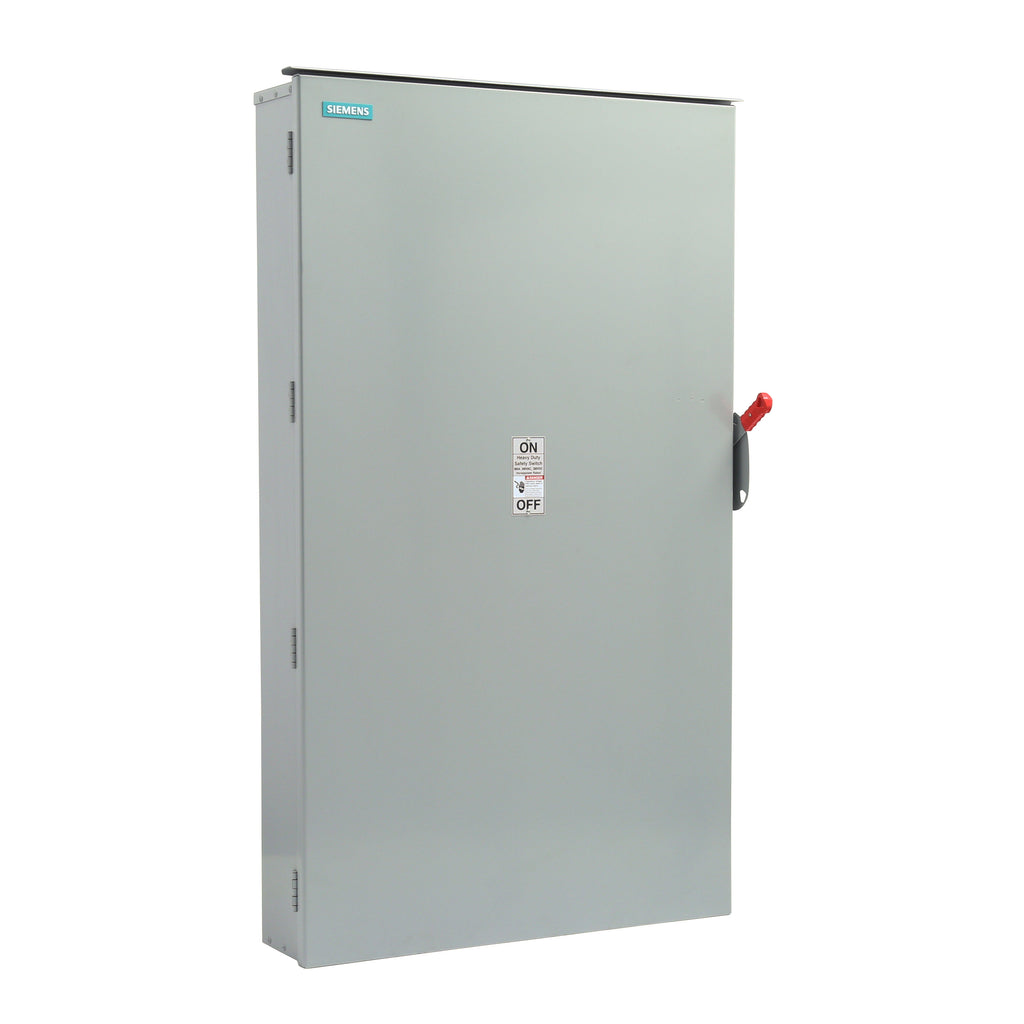

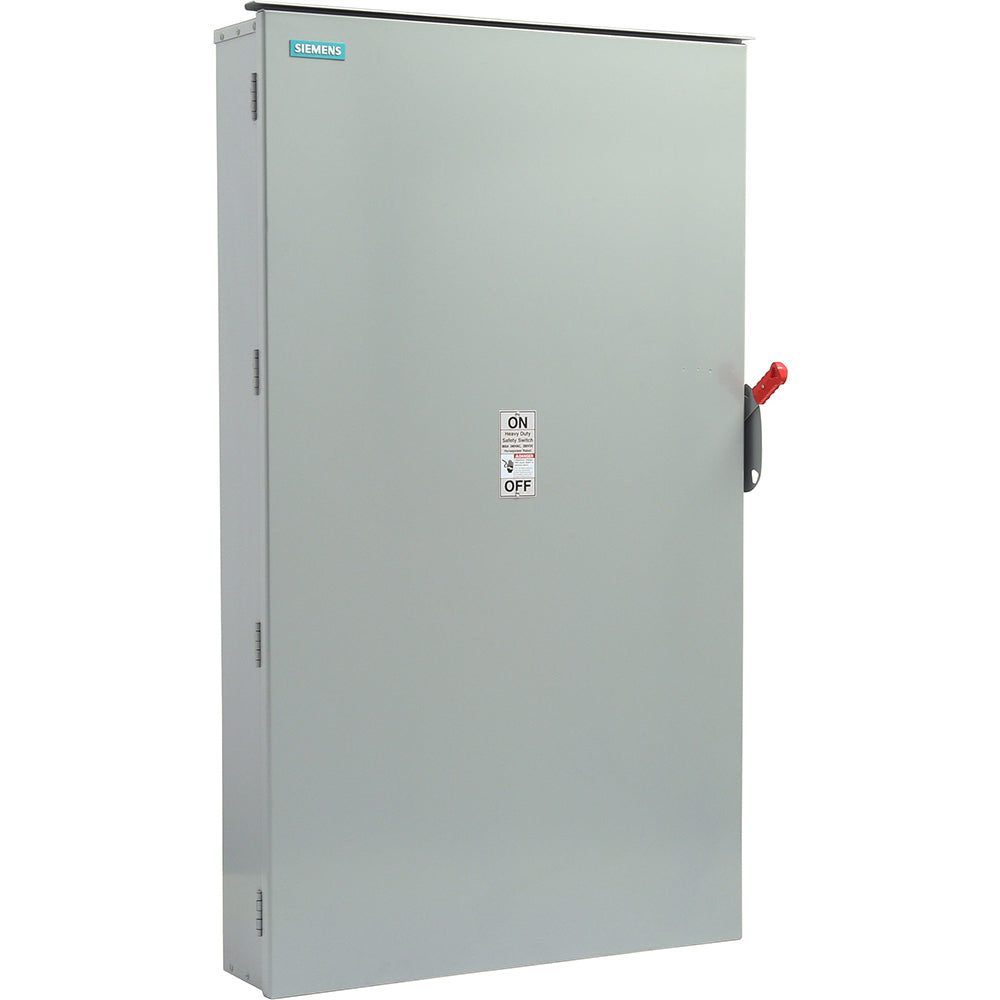

HF327NR - Siemens Type VBII heavy duty fusible safety switch, 800A rated for 240 VAC, 3 pole, 4 wire, NEMA 3R enclosure.This Siemens HF327NR is an enclosed fusible heavy duty low voltage single throw safety switch designed for reliable service entrance and load disconnecting. It features 3PST/TPST contact form, surface mounting, mechanical lugs, 200 kA short circuit current rating, and operates in temperatures from -29 to 85 deg C. The steel enclosure includes tangential knockouts, side-hinged door opening 180 deg, spring reinforced fuse clips, and padlockable door latch.Key Specifications

• Amperage Rating: 800 A
• Voltage Rating: 240 VAC / 250 VDC
• Number of Poles: 3
• Wires: 3-Pole 4-Wire
• Mounting Type: Surface
• Enclosure Type: NEMA 3R
• Short Circuit Current Rating: 200 kA
• Frequency: 60 Hz
• Horsepower Rating: 100 hp at 240V 3 Phase
• Temperature Range: -29 to 85 deg C
• Terminal Type: Mechanical Lugs
• Certifications: UL98

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HF327NR
• Manufacturer : Siemens
• Brand : Siemens
• Category : Switch
• Item Subcategory : Disconnect
• Section : Fusible Disconnect Switch
• Family : VBII Series
• Type : HF
• Voltage : 240 AC
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 200kA@240V
• Fuse Class : L
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 3R
• Compatible Frames : NS

Product Data

• UPC : 783643150744
• GTIN : 00783643150744
• Country of Origin : Mexico
• Dimensions : 71.654 x 42.126 x 10.63 inch
• Weight : 353.732 lb
• Certification : UL listed
