Product Info
- Manufacturer:Siemens
- Sub-Category:Disconnect
Description

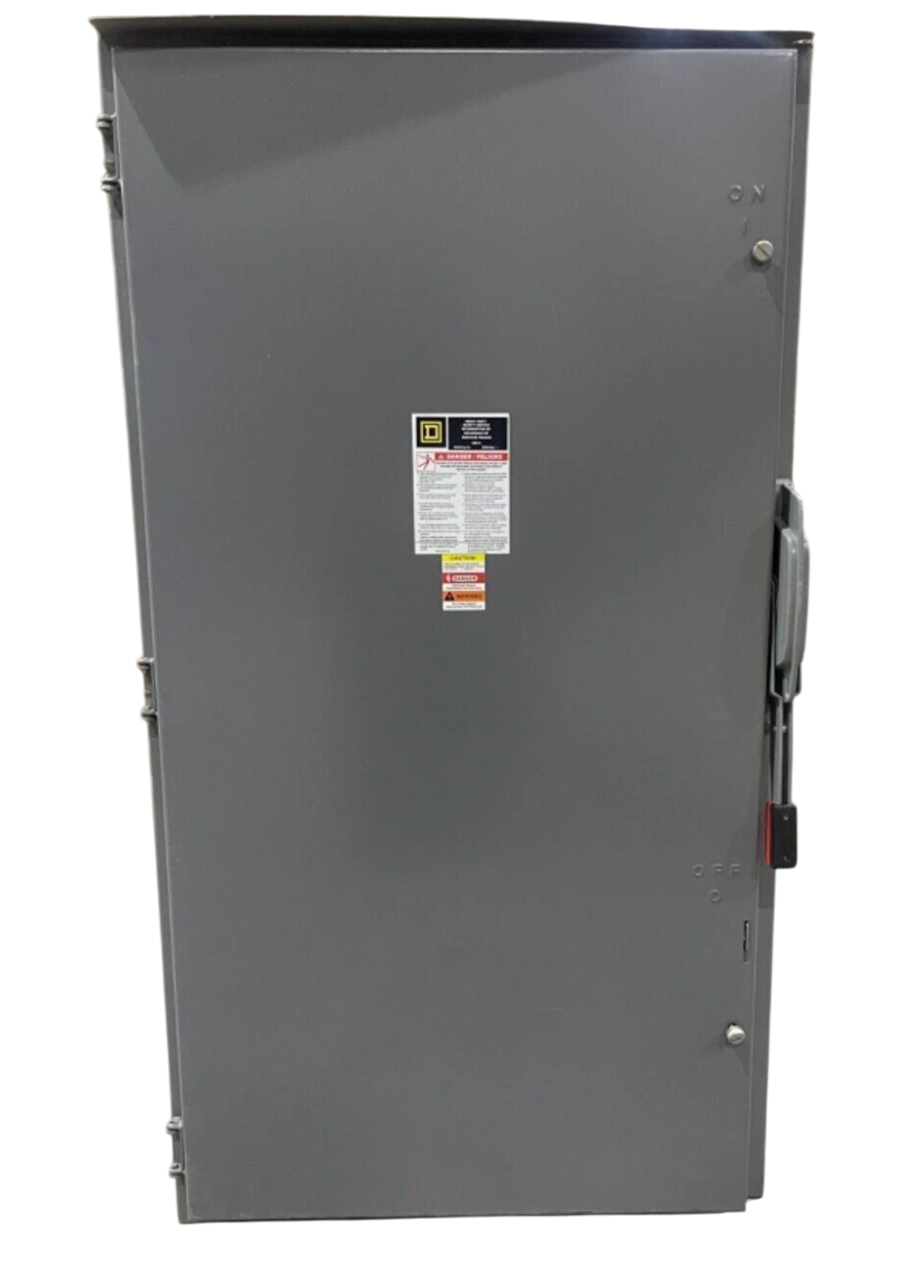

HF326N
HF326N is a heavy duty fused safety switch designed for industrial power distribution and motor control applications. This 3-pole, 600-ampere switch provides reliable disconnection and overcurrent protection in 240-volt AC systems with 250-volt DC rating capability. The unit features surface mounting in a NEMA 1 enclosure and is rated for 3-phase, 4-wire configurations with a maximum of 200 horsepower.
- Amperage: 600 Amp
- Voltage: 240VAC / 250VDC
- Poles: 3-Pole
- Wires: 4-Wire
- Enclosure Type: NEMA 1
- Mounting: Surface
- Fuse Provision: Fusible
- Horsepower Rating: 200 HP Maximum
- UL Listed: File #E4776
- Standards: UL 98, UL 50, NEMA KS-1
Specifications
- Part Number: HF326N
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Disconnect
- Section : Fusible Disconnect Switch
- Family : VBII Series
- Type : HF
- Voltage : 240 AC
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 200kA@240V
- Fuse Class : R
- Wire : 4
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 1
- Compatible Frames : NS
Product Data
- Weight : 169.359
- Certification : UL listed
