HF325NA - Siemens 400A 3-Pole 240V Fusible Heavy Duty Safety Switch, NEMA 1, 200kA Interrupt, Surface Mount, Type VBII

HF325NA

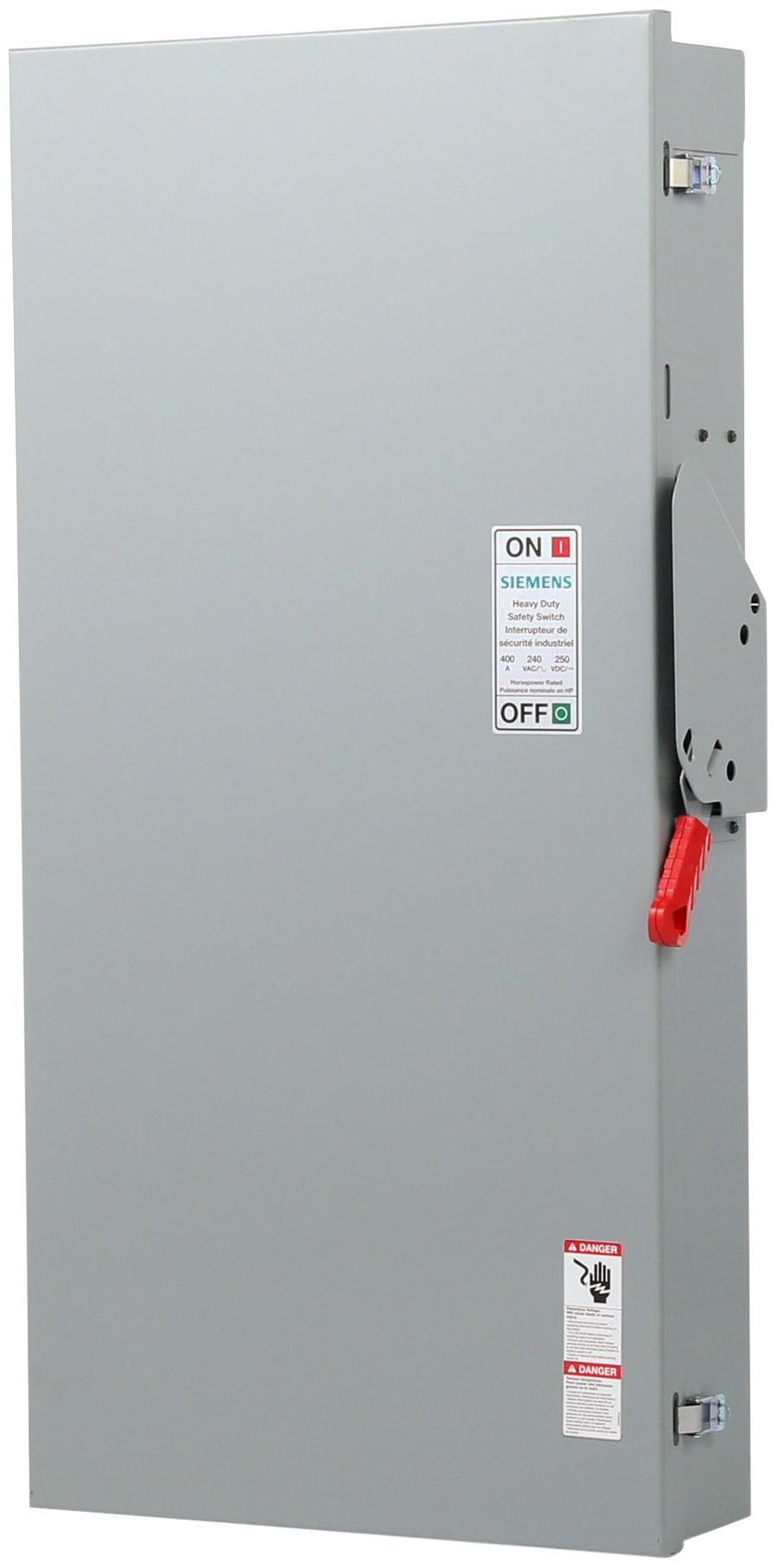

HF325NA is a Siemens Heavy Duty Fused Safety Switch designed for low voltage circuit protection and service entrance applications.

This 3-pole, 3-fuse safety switch features a solid neutral and is housed in a Type 1 indoor enclosure. It delivers quick-make and break switching action with visible blade design and highly visible ON/OFF indication. The modular construction allows quick replacement of parts, and the compact, one-piece lightweight design enables easier installation. The switch includes a defeatable dual cover interlock, spring-loaded heat sink fuse clips, lay-in lugs for easy wiring, and an extra ground lug on the neutral. It meets NEMA Standard KS-1 for enclosed switches and NEC wire bending space requirements.

• Amperage: 400A
• Voltage: 240 VAC
• Poles: 3-Pole
• Fuses: 3-Fuse with Solid Neutral
• Enclosure Type: Type 1, Indoor
• Mounting: Surface
• Interrupt Rating: 10,000 AIC (standard) or 200,000 AIC (with Class R, T, or J fuses)
• Operating Cycles: 6,000
• I2t Rating: 6,000,000 (Amps² x Seconds)
• Contact Type: TPST (Three Pole Single Throw)
• Horsepower: 50 hp at 240V 3-Phase
• Shipping Weight: 94.6 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HF325NA
• Manufacturer : Siemens
• Brand : Siemens
• Category : Switch
• Item Subcategory : Disconnect
• Section : Fusible Disconnect Switch
• Family : VBII Series
• Type : HF
• Voltage : 240 AC
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 200kA@240V
• Fuse Class : R,J
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 1
• Compatible Frames : NS

Product Data

• UPC : 887621872489
• GTIN : 00887621872489
• Country of Origin : Mexico
• Dimensions : 6.693 x 22.047 x 45.276 inch
• Weight : 138.977
• Certification : UL listed
