Product Info
- Manufacturer:Siemens
- Sub-Category:Disconnect
Description
HF325N

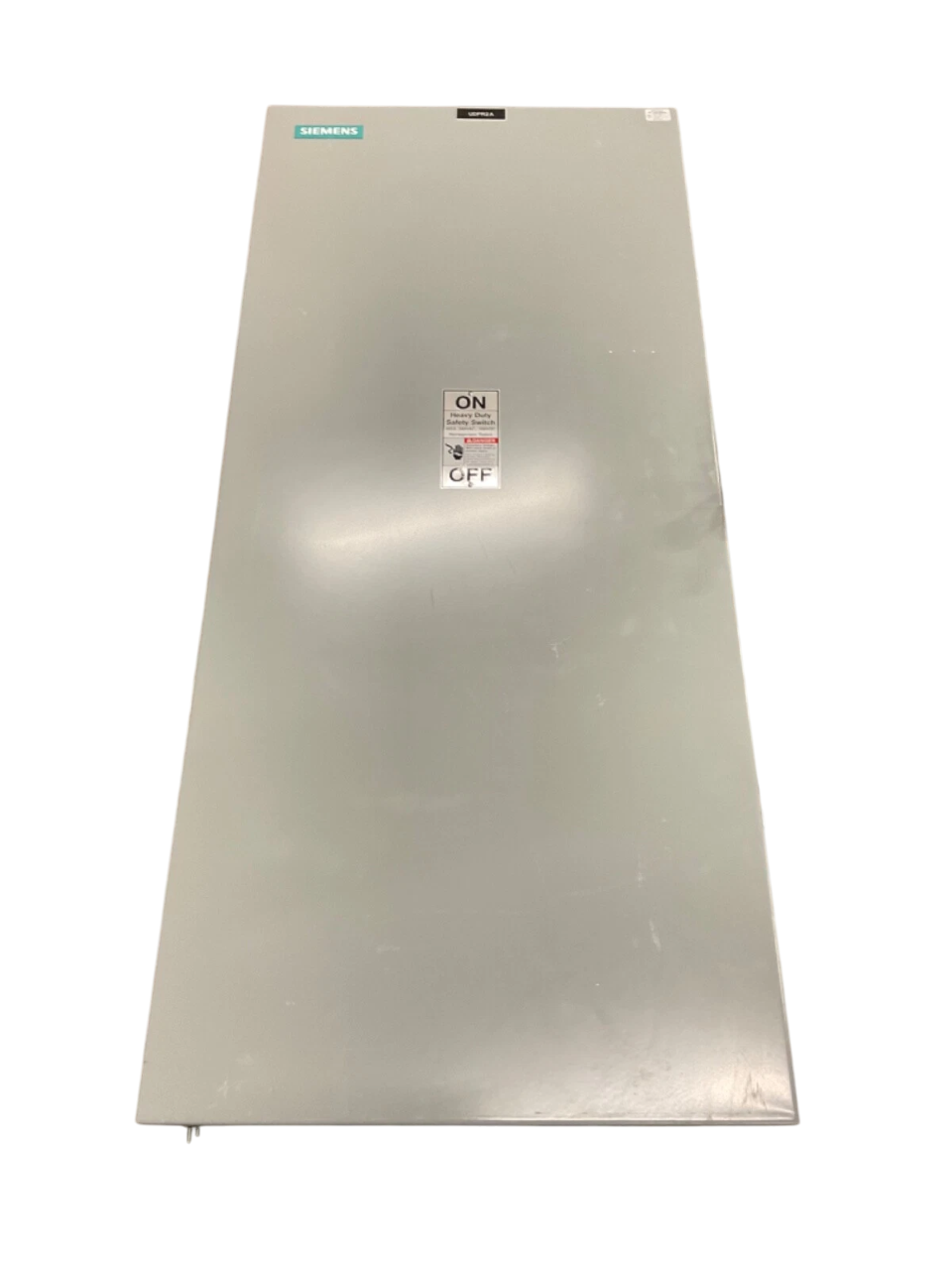

HF325N - Siemens Heavy Duty Safety Switch, fusible design with solid neutral for reliable power disconnection in industrial applications.This Siemens HF325N is a heavy duty safety switch rated at 400A, 240VAC/250VDC, featuring 3 poles, 4 wires, and NEMA 1 surface mount enclosure. It supports Class H/J/R/T time delay fuses and provides TPST action for secure operation in dry locations.
- Part Number: HF325N
- Manufacturer: Siemens
- Type: Heavy Duty Safety Switch
- Amperage: 400A
- Voltage: 240VAC / 250VDC
- Poles: 3
- Wires: 4
- Fuse Provision: Fusible (Class H/J/R/T, Time Delay)
- Neutral: Solid
- Enclosure: NEMA 1
- Mounting: Surface
- Series: HF
Specifications
- Part Number: HF325N
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Disconnect
- Section : Fusible Disconnect Switch
- Family : VBII Series
- Type : HF
- Voltage : 240 AC
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 200kA@240V
- Fuse Class : R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 1
- Compatible Frames : NS
Product Data
- UPC : 887621872502
- GTIN : 00783164133172
- Weight : 137.899
- Certification : UL listed
