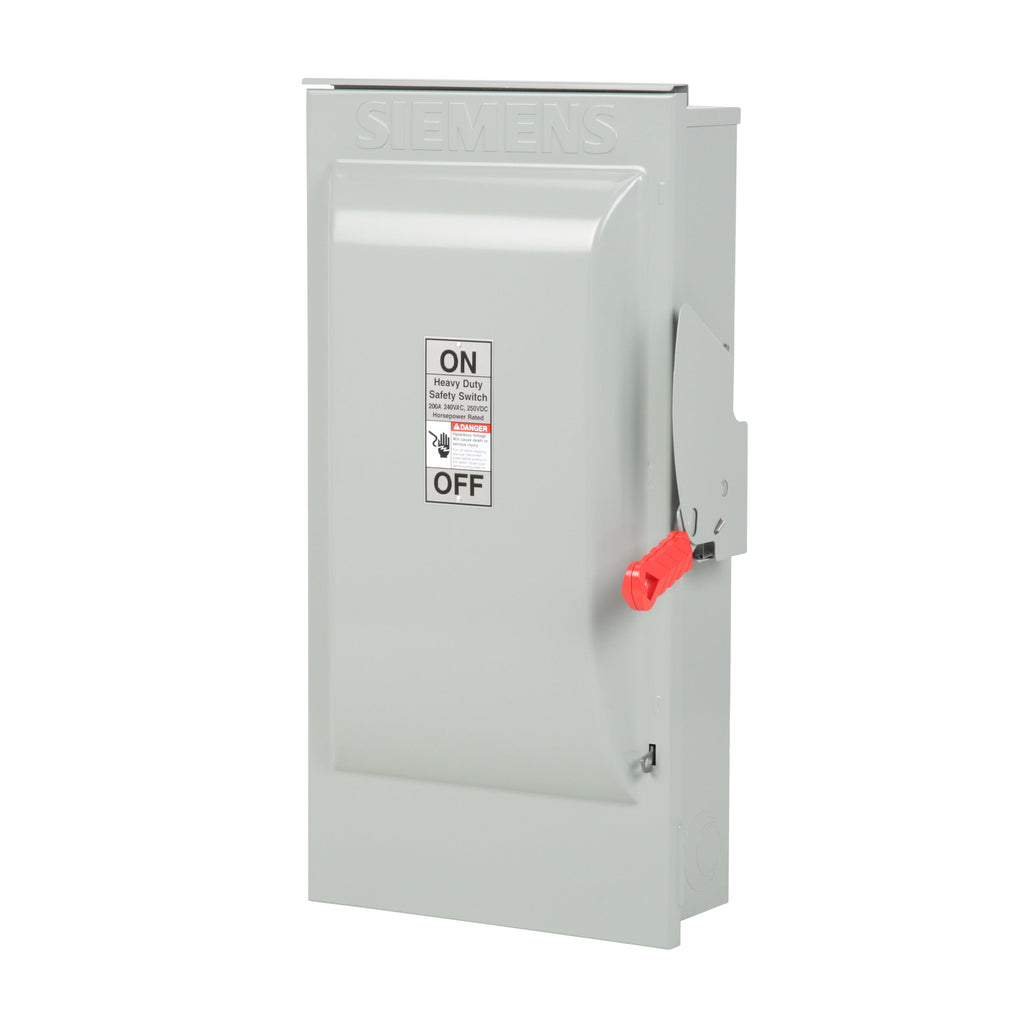

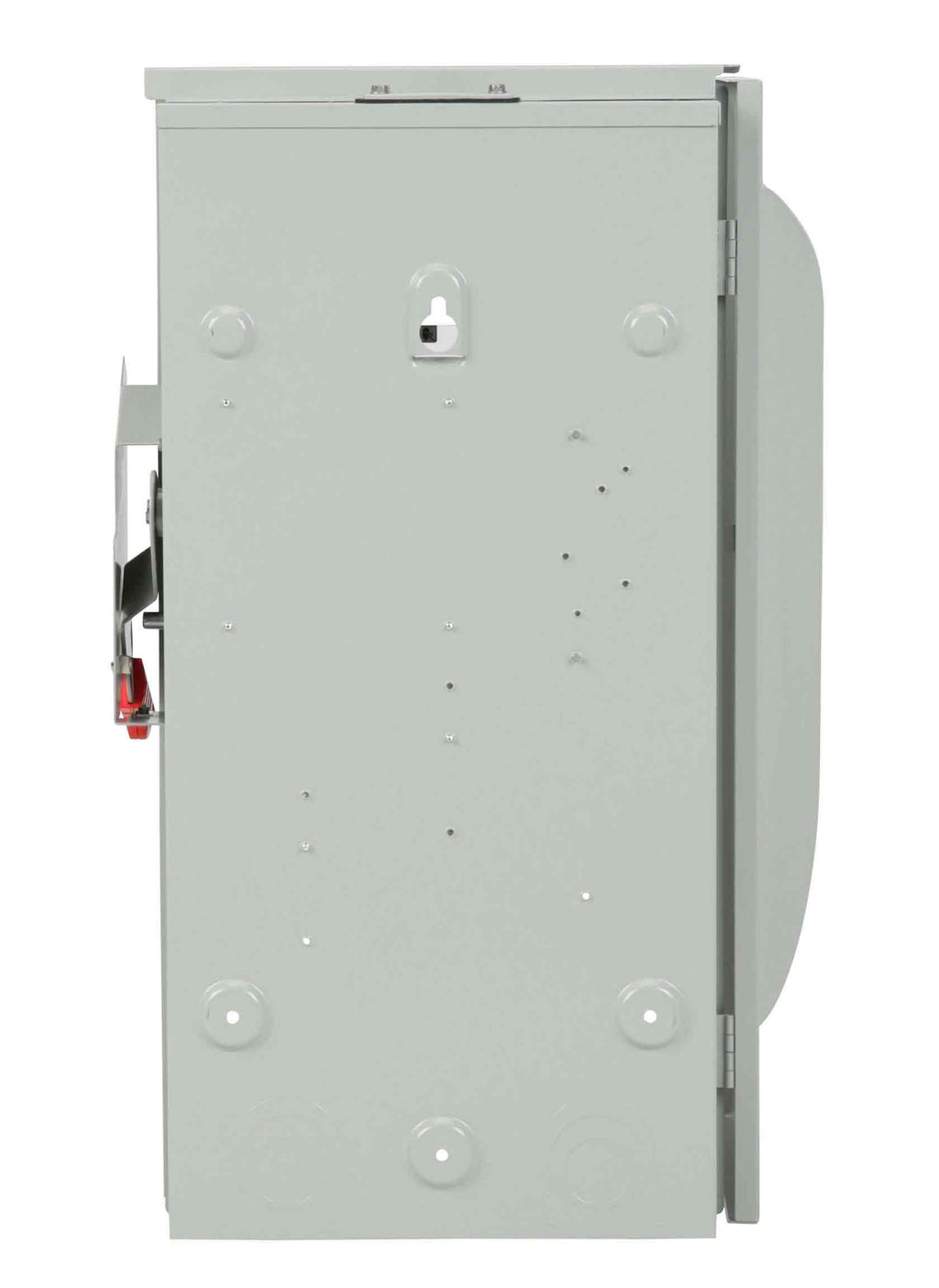

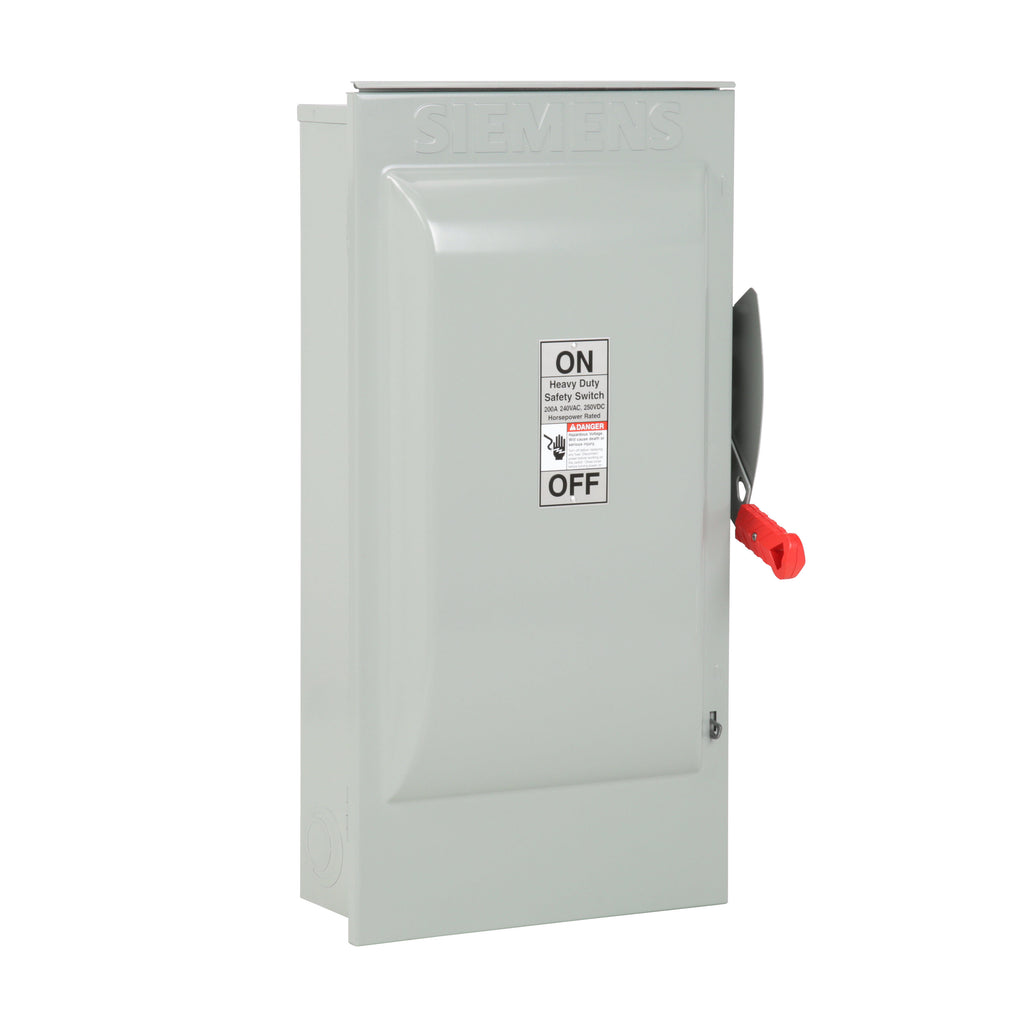

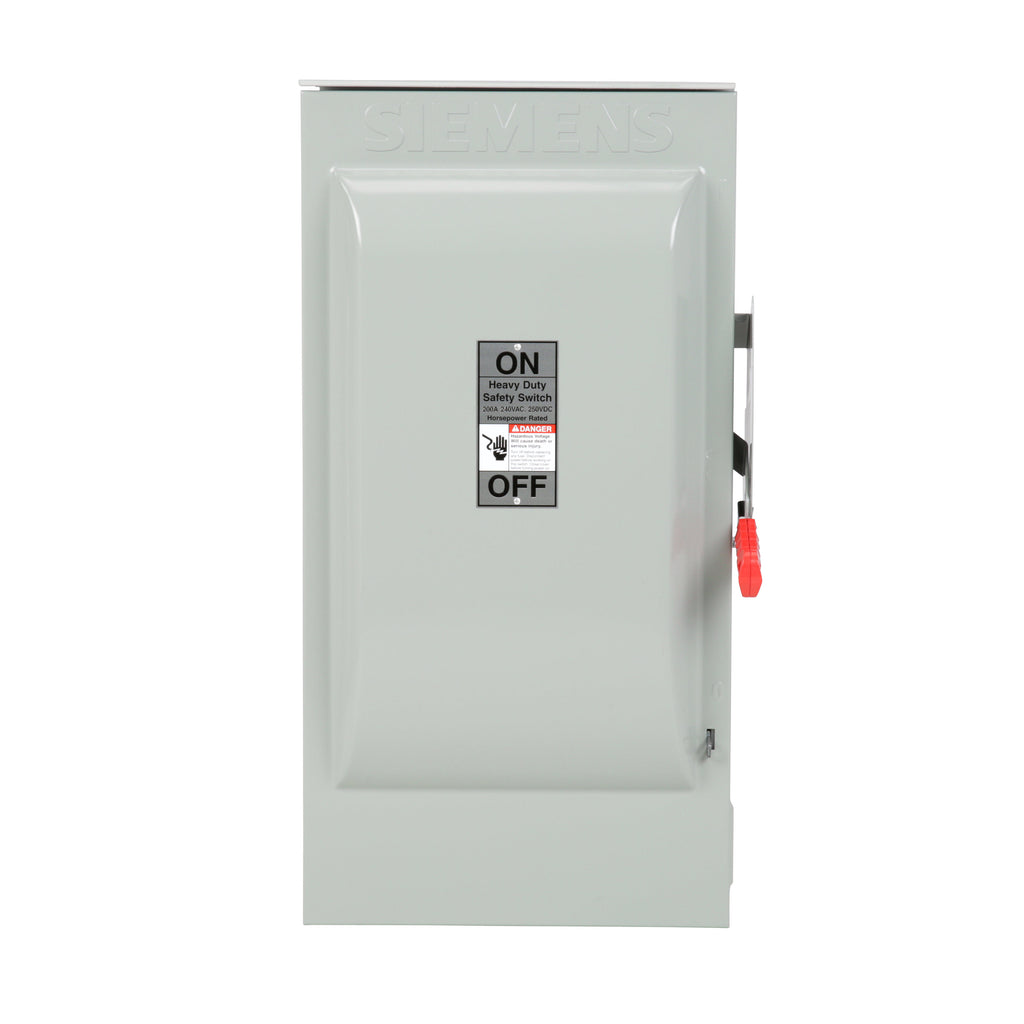

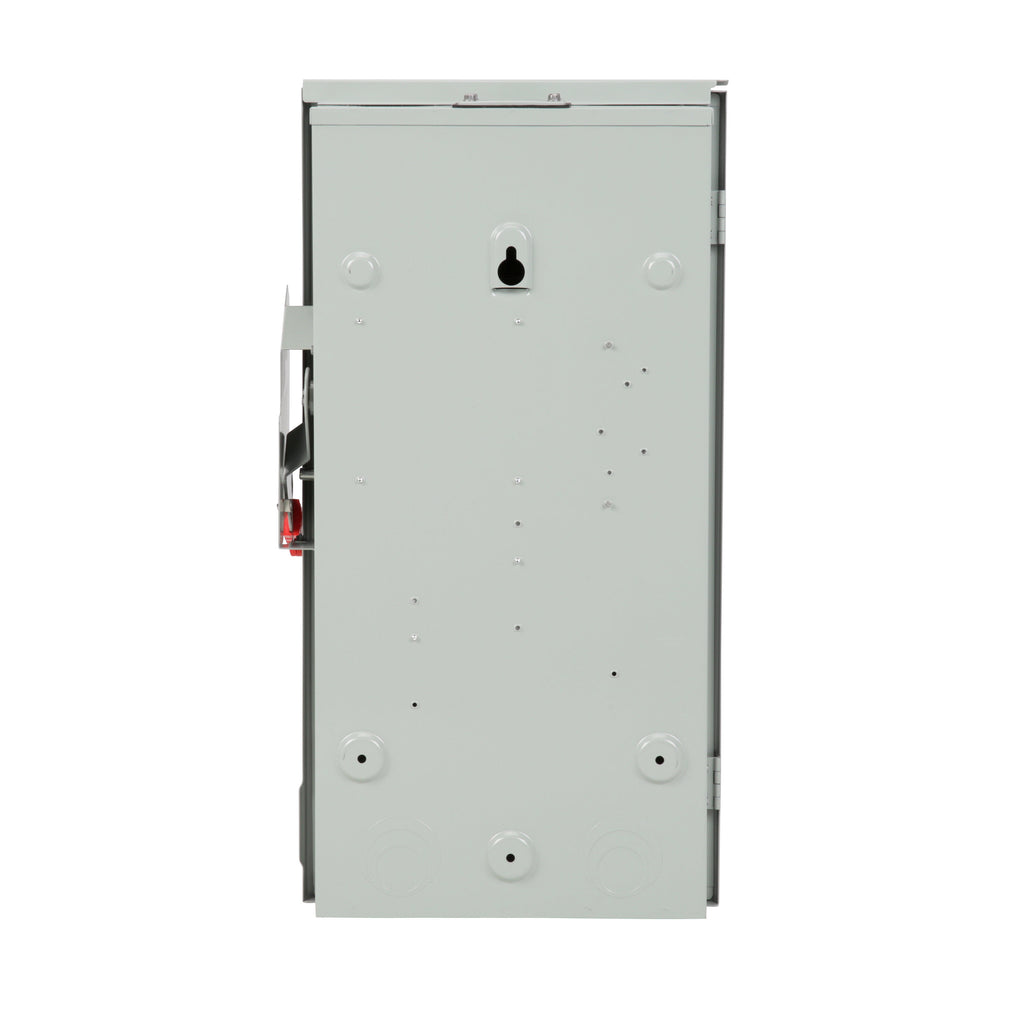

HF324NR - Siemens 200 Amp 240V 3-Pole 4-Wire Fusible Safety Switch, NEMA 3R, Heavy Duty, Outdoor/Indoor, Galvanized Steel Enclosure

HF324NR

HF324NR is a heavy duty fusible safety switch rated 200 amps at 240VAC/250VDC with 3-pole, 4-wire configuration in a NEMA 3R outdoor enclosure.

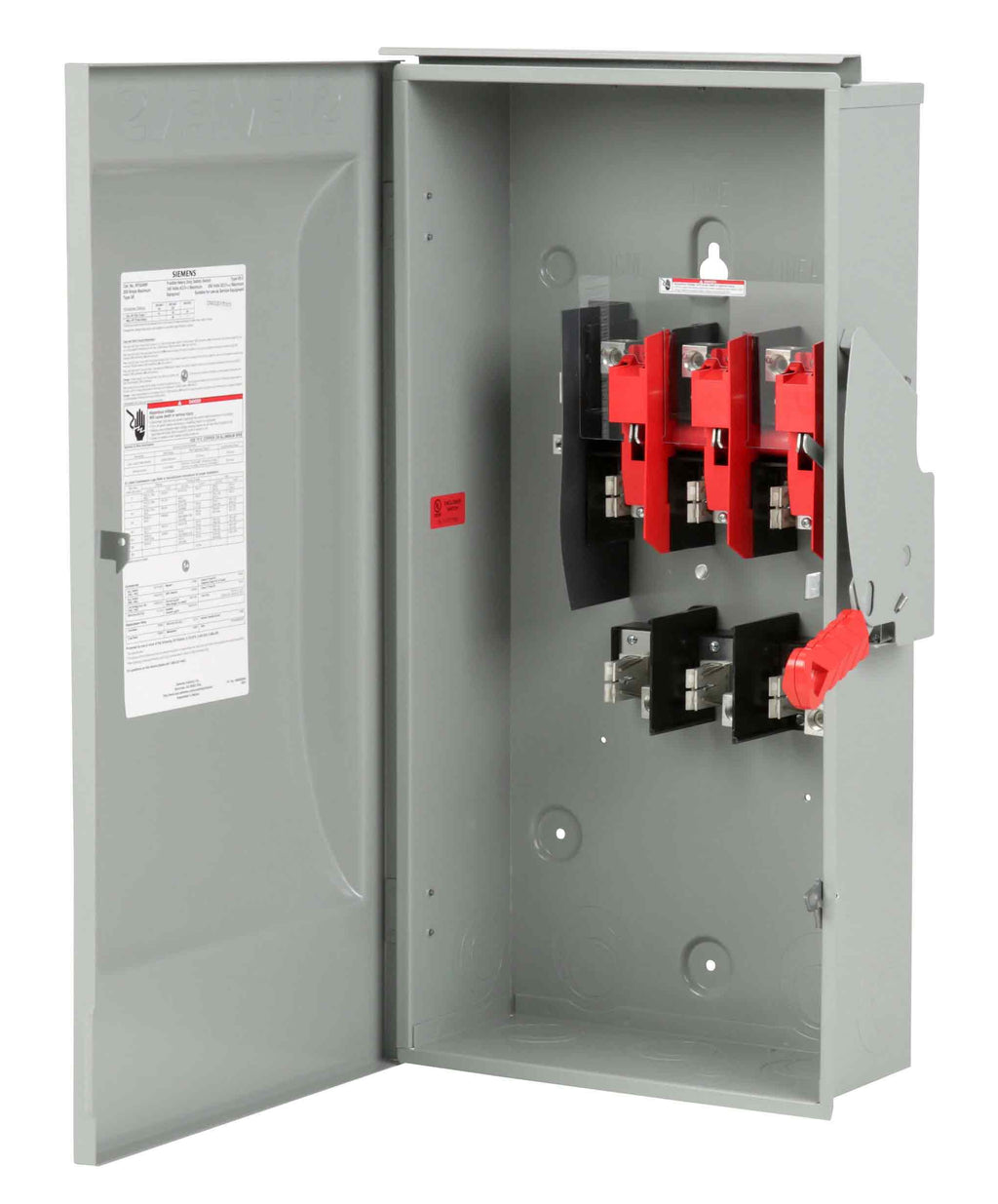

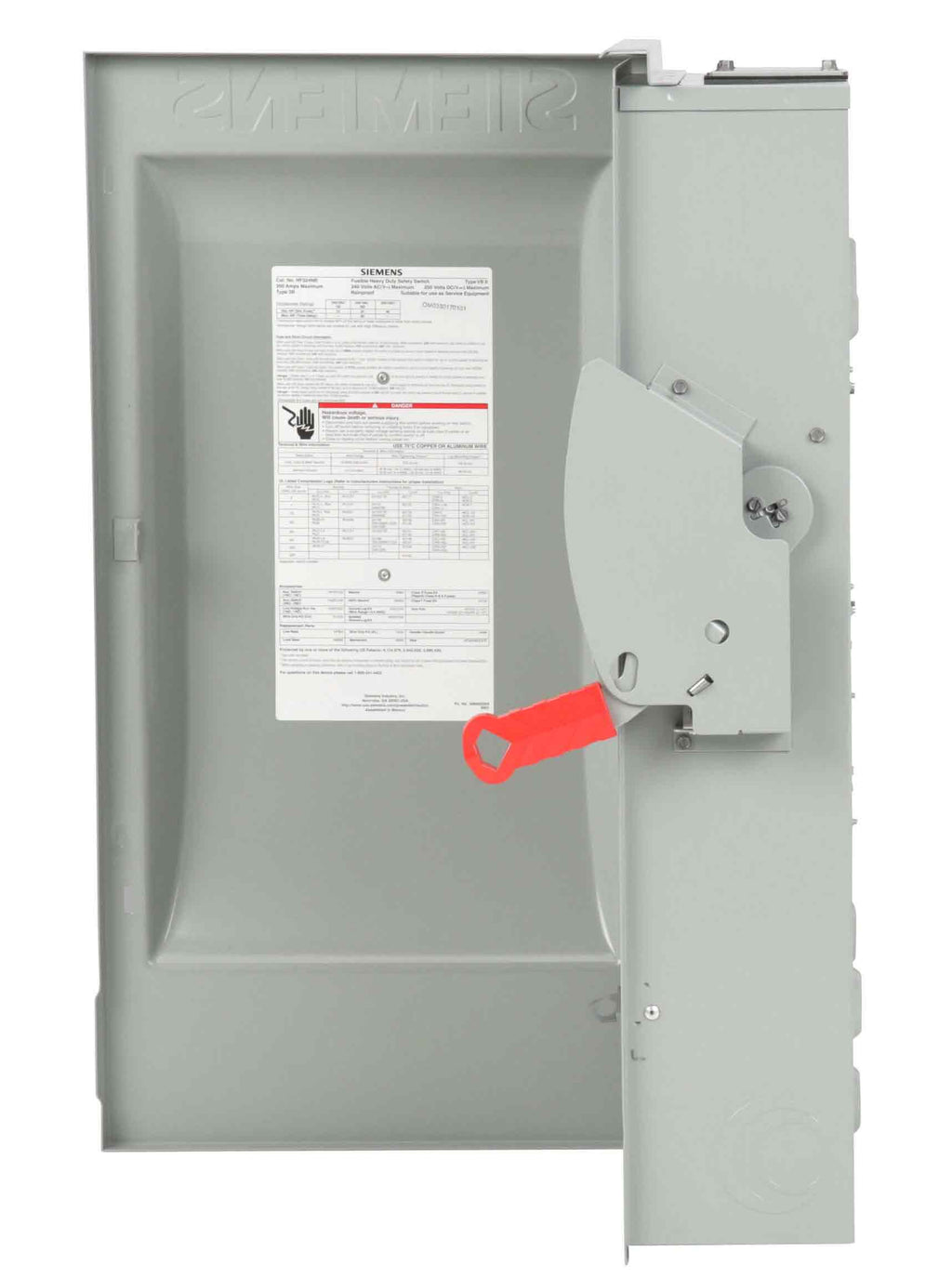

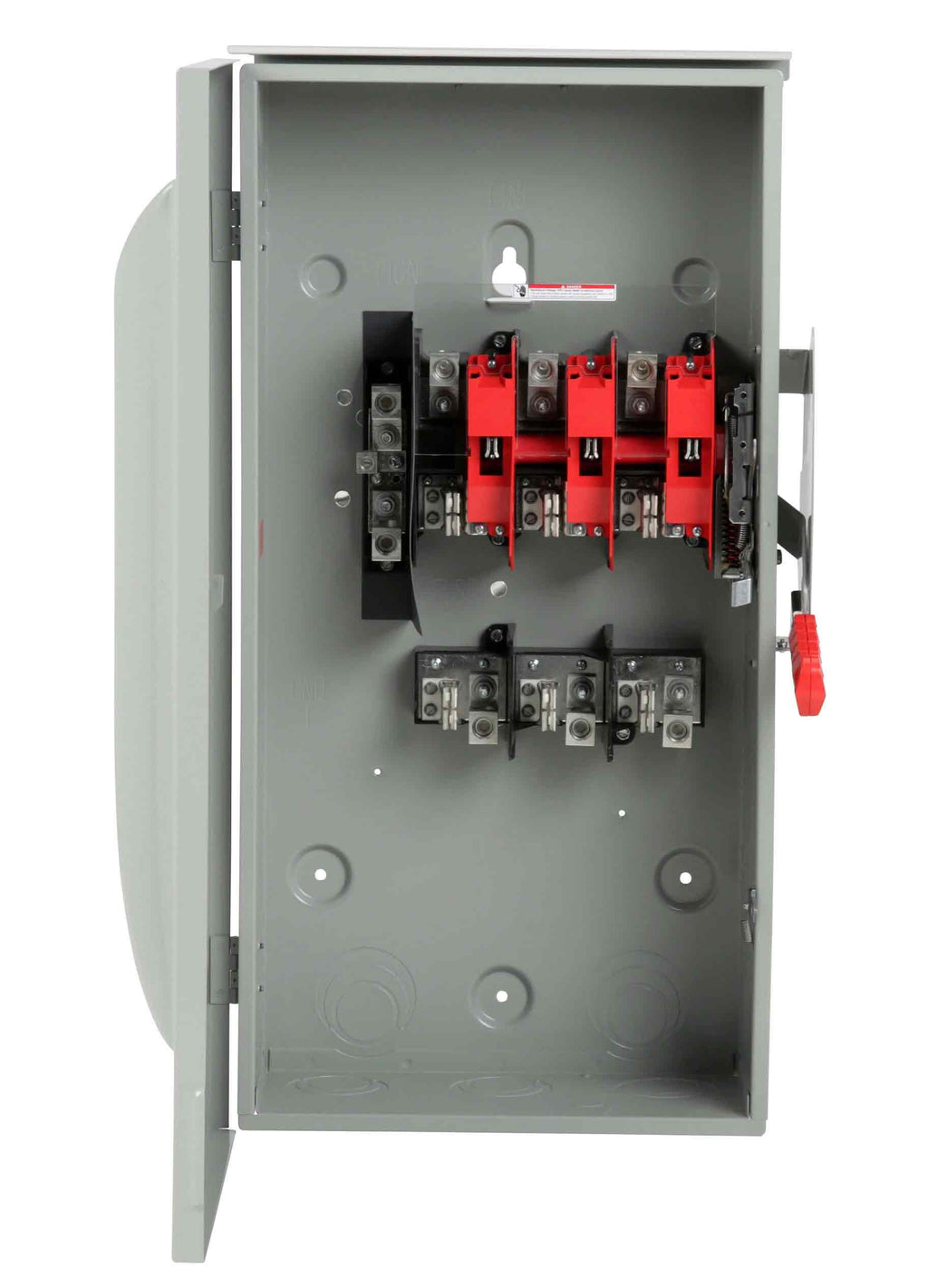

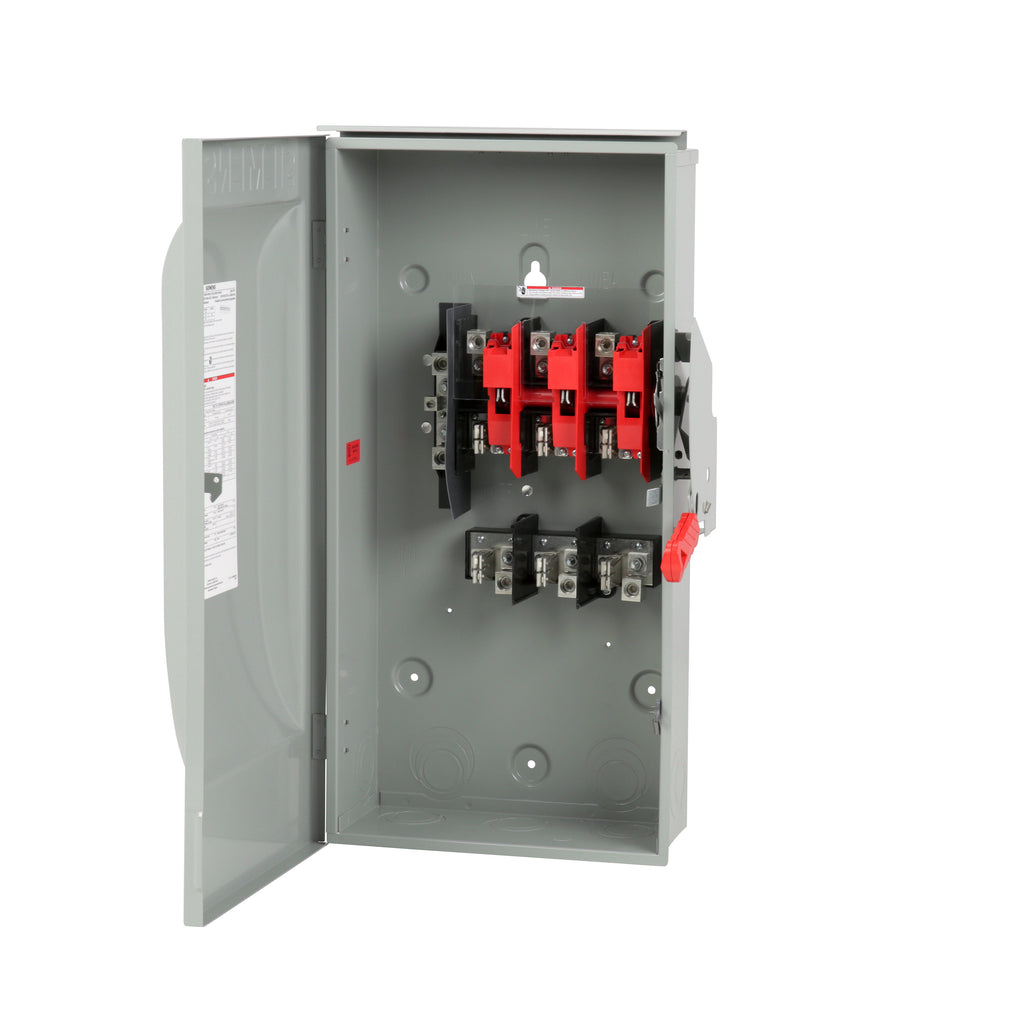

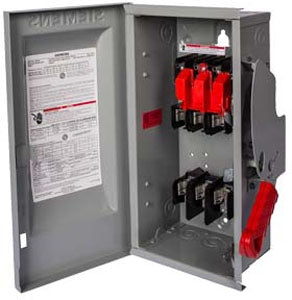

This Siemens safety switch features quick-make and break switching action with double break visible blade design and highly visible ON/OFF indication. The unit is suitable for use as service entrance equipment and includes internal shields meeting NEC 2020 230.62 line side barrier requirements. The modular design allows quick and easy replacement of parts, with front removable lugs convertible to copper body or compression type lugs. A defeatable dual cover interlock is included for added safety.

• Amperage: 200 Amps
• Voltage: 240VAC, 250VDC
• Poles: 3-Pole, 4-Wire
• Enclosure Type: NEMA 3R (Outdoor)
• Fuse Type: Class H, R, T, or J compatible
• Interrupt Rating: 10,000 AIC with Class H fuses; 200,000 AIC with Class R, T, J fuses
• Horsepower: 15 HP (1-Phase, 240V); 25 HP (3-Phase, 240V)
• UL Listed: File #E4776
• Standards: UL98, UL50, NEMA KS-1
• I2t Rating: 2,000,000
• Shipping Weight: 50 lbs.

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HF324NR
• Manufacturer : Siemens
• Brand : Siemens
• Category : Switch
• Item Subcategory : Disconnect
• Section : Fusible Disconnect Switch
• Family : VBII Series
• Type : HF
• Voltage : 240 AC
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 200kA@240V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 3R
• Compatible Frames : NS

Product Data

• UPC : 783643150713
• GTIN : 00783643150713
• Country of Origin : Mexico
• Dimensions : 33.858 x 18.898 x 9.843 inch
• Weight : 43.1
• Certification : UL listed
