Product Info
- Manufacturer:Siemens
- Sub-Category:Disconnect
Description
HF324N

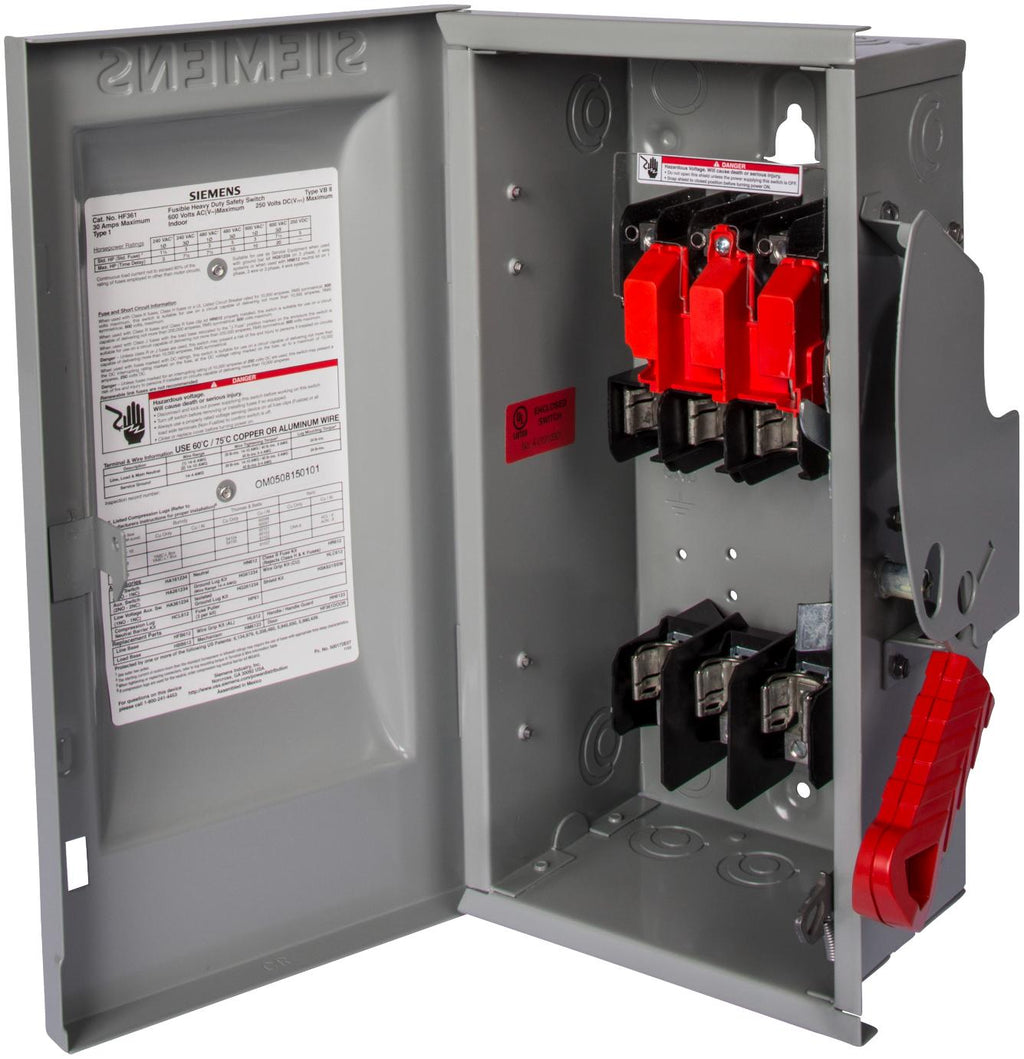

HF324N - Siemens Type VBII heavy duty fusible safety switch, 3-pole with solid neutral, rated for indoor use.This Siemens HF324N is a low voltage, single throw, enclosed fusible safety switch designed for heavy duty applications. It features 3 poles and 4 wires, with a NEMA 1 steel enclosure suitable for indoor installation. Rated at 200A and 240VAC, it includes TPST contacts and supports Class H fuses.
- Part Number: HF324N
- Manufacturer: Siemens
- Type: Heavy Duty Fusible Safety Switch
- Poles: 3
- Wires: 4
- Amperage: 200A
- Voltage: 240VAC / 250VDC
- Enclosure: NEMA 1 (Indoor), Steel
- Mounting: 2 or 3 Point Mounting Holes
- Contact Type: TPST, Single Throw
- Neutral: Solid Neutral
- Horsepower Rating: 25 HP @ 240V (3 Phase)
Specifications
- Part Number: HF324N
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Disconnect
- Section : Fusible Disconnect Switch
- Family : VBII Series
- Type : HF
- Voltage : 240 AC
- Amperage : 200
- Phase : 3
- Poles : 3
- AIC rating : 200kA@240V
- Fuse Class : R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 1
- Compatible Frames : NS
Product Data
- UPC : 783643150317
- GTIN : 00783643150317
- Country of Origin : Mexico
- Dimensions : 33.858 x 18.898 x 9.843 inch
- Weight : 42.086
- Certification : UL listed
