HF323NR - Siemens 3-Pole 100A 240V Fusible Heavy Duty Safety Switch, Type VBII, NEMA 3R Enclosure, Outdoor, UL98

HF323NR

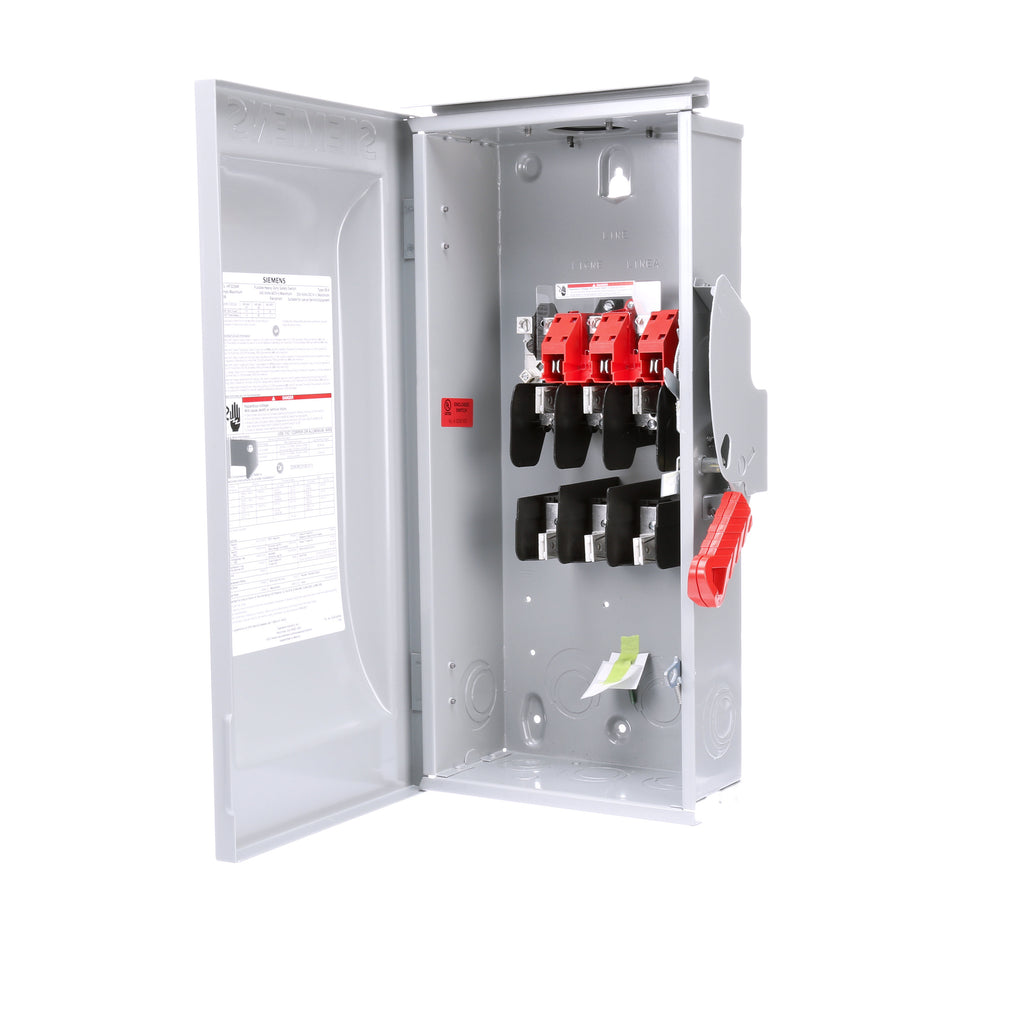

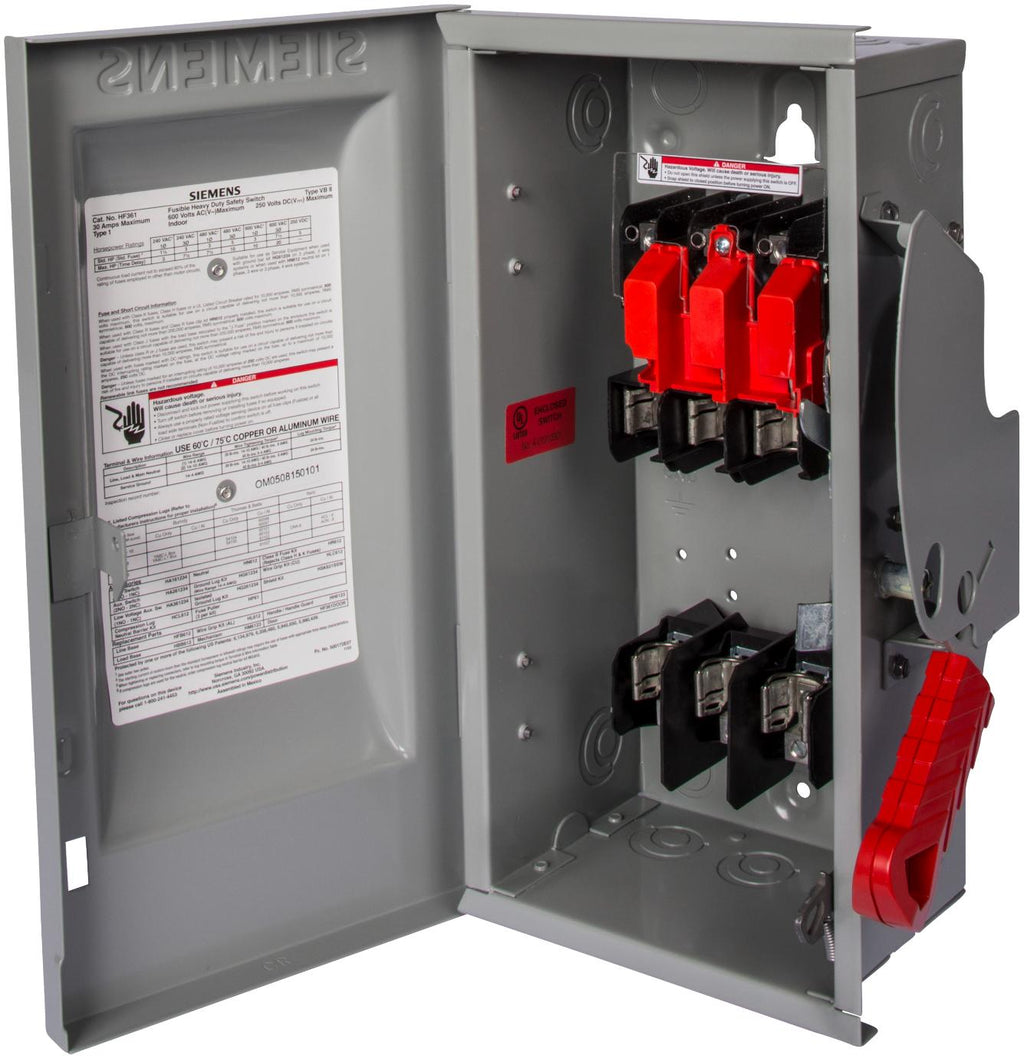

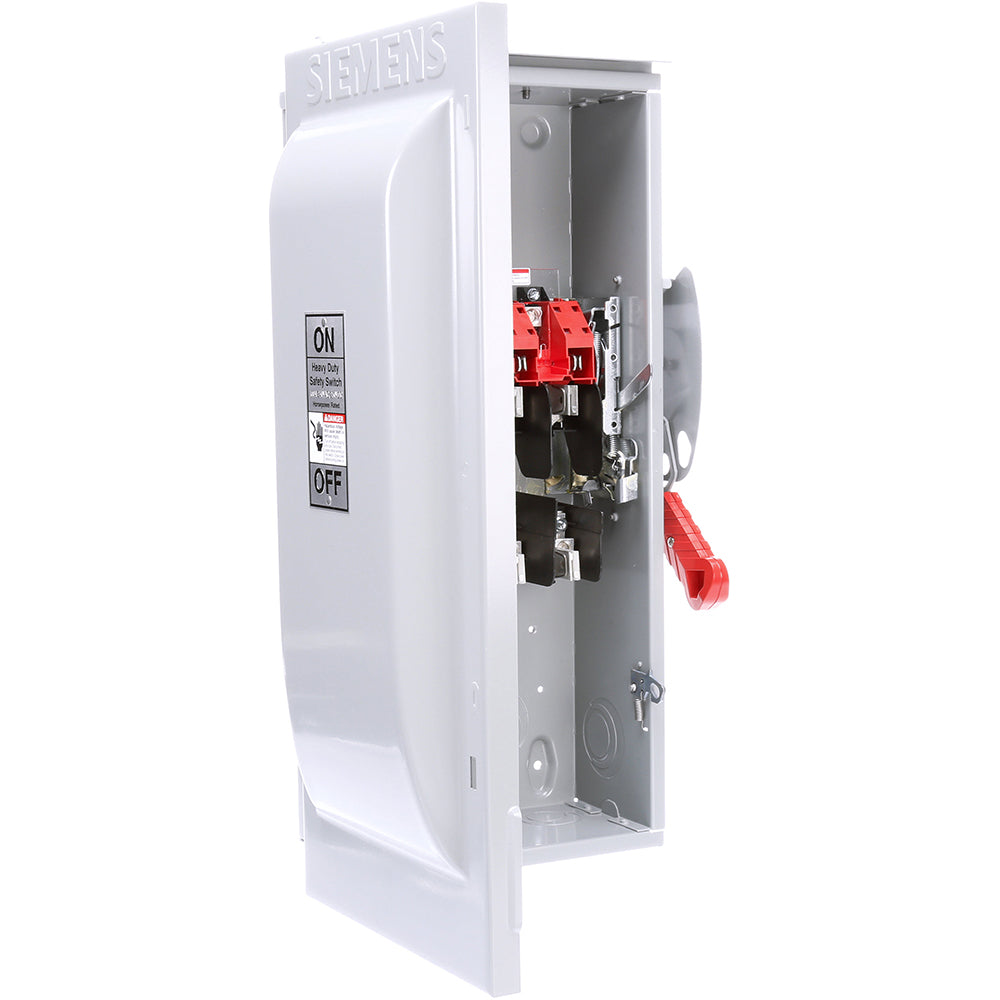

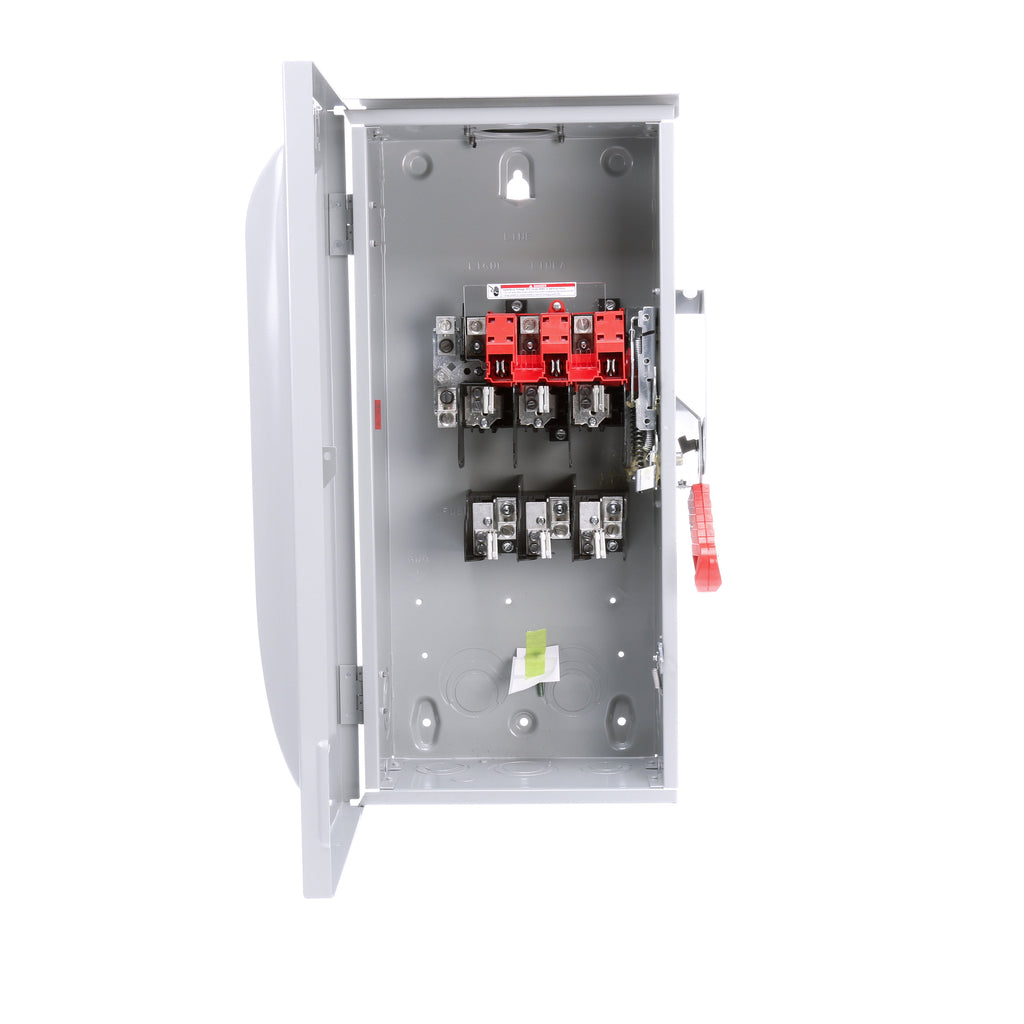

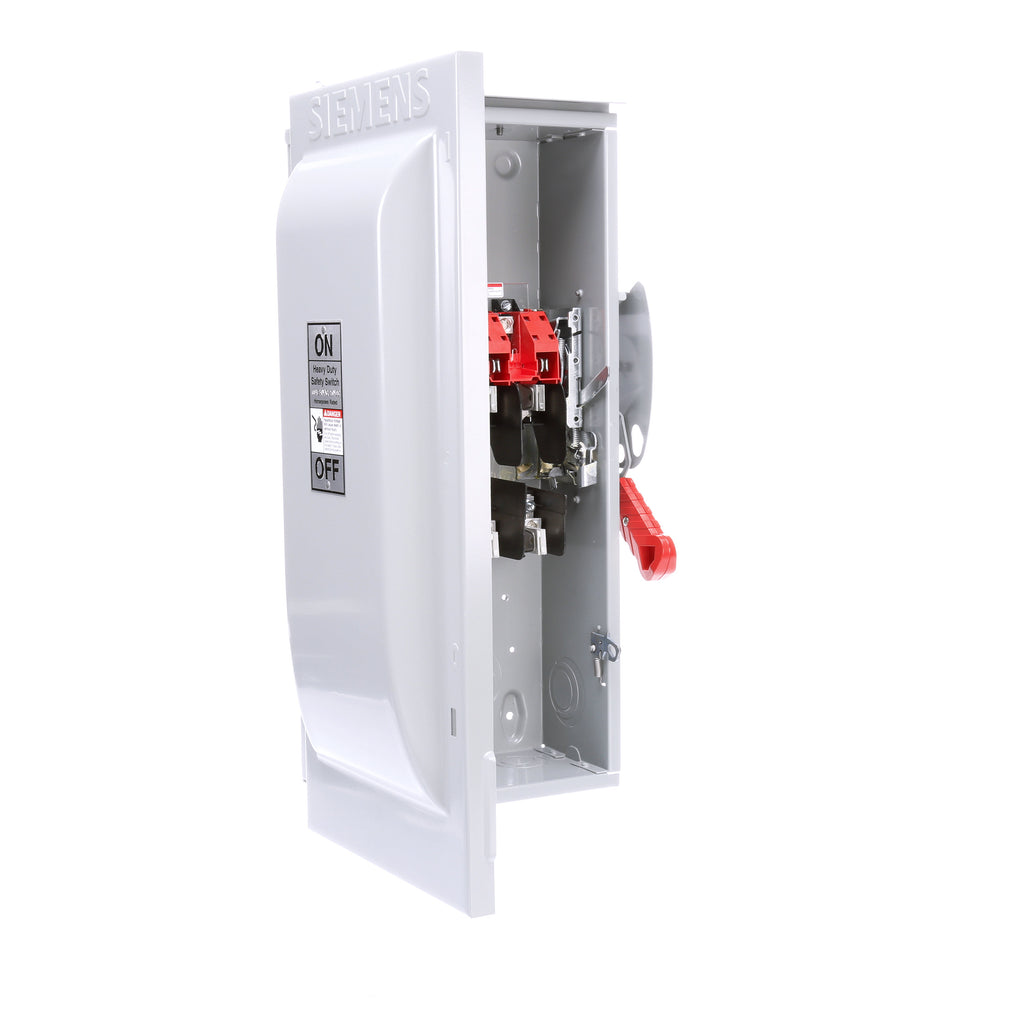

HF323NR is a heavy duty fusible safety switch rated for 240 VAC, 100 amperes, 3-pole configuration with neutral in a NEMA 3R outdoor enclosure. This Type VBII enclosed switch features quick-make and quick-break operation with visible blade, double break switching action and arc chutes for heat dissipation. The switch is surface mounted with lug terminals and includes a highly visible red handle grip designed for hook stick operation, defeatable dual cover interlock, and side hinged door that opens 180 degrees for easier wiring.

• Amperage: 100 A
• Voltage: 240 VAC / 250 VDC
• Poles: 3
• Wires: 4
• Enclosure Type: NEMA 3R
• Mounting: Surface
• Short Circuit Rating: 200 kA
• Horsepower: 15 hp at 240V
• Frequency: 60 Hz
• Operating Temperature: -29 to 85 degrees C
• Terminal Type: Lug
• Material: Steel

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HF323NR
• Manufacturer : Siemens
• Brand : Siemens
• Category : Switch
• Item Subcategory : Disconnect
• Section : Fusible Disconnect Switch
• Family : VBII Series
• Type : HF
• Voltage : 240 AC
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 200kA@240V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 3R
• Compatible Frames : NS

Product Data

• UPC : 783643150706
• GTIN : 00783643150706
• Country of Origin : Mexico
• Dimensions : 25.591 x 13.78 x 7.48 inch
• Weight : 22.046
• Certification : UL listed
