HF262S - Siemens 60 Amp 600 VAC 2-Pole Fusible Heavy Duty Safety Switch NEMA 4X

HF262S

HF262S is a Siemens fusible heavy duty safety switch designed for low voltage circuit protection in industrial and commercial applications.

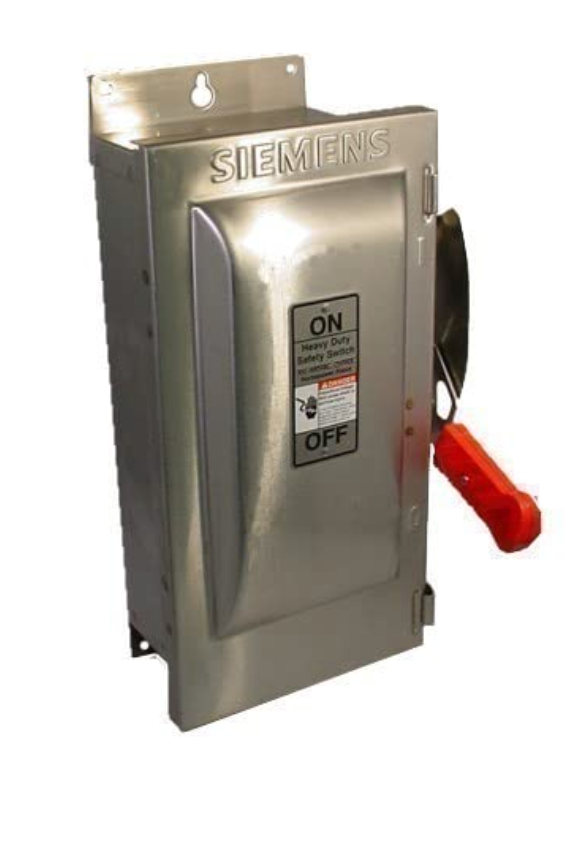

This 2-pole disconnect switch features a NEMA 4X stainless steel enclosure rated for 600 VAC at 60 amperes. The switch utilizes the proven Vacu-Break double-break switching action that breaks the arc in two places, reducing heat generation and extending component life. The enclosure includes a side-hinged door that opens past 180 degrees for easier wiring access, spring-reinforced fuse clips for reliable contact, and a secure door latch with padlock capability. Front removable mechanical lugs accommodate copper or aluminum conductors rated for 60 or 75 degrees Celsius.

• Amperage Rating: 60 Amps
• Voltage Rating: 600 VAC
• Number of Poles: 2
• Enclosure Type: NEMA 4X
• Enclosure Material: 304 Grade Stainless Steel
• Switch Type: Fusible Heavy Duty
• Contact Form: DPST
• Terminal Type: Lug
• Interrupting Rating: 200 kAIC at 600V
• Frequency: 60 Hz
• Operating Temperature: -29 to 85 degrees Celsius
• Mounting: Surface Mount

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HF262S
• Manufacturer : Siemens
• Brand : Siemens
• Category : Switch
• Item Subcategory : Disconnect
• Section : Fusible Disconnect Switch
• Family : VBII Series
• Type : HF
• Voltage : 600 AC AC
• Amperage : 60
• Phase : 1
• Poles : 2
• AIC rating : 200kA@600V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 4X
• Switch Type : Fusible
• Compatible Frames : MJP

Product Data

• UPC : 783643173965
• GTIN : 00783643173965
• Country of Origin : Mexico
• Dimensions : 13.78 x 7.874 x 21.654 inch
• Weight : 22.95 lb
• Certification : UL listed
