HF261 - Siemens 30 Amp 600 VAC 2-Pole Fusible Heavy Duty Safety Switch NEMA 1 Enclosure

HF261

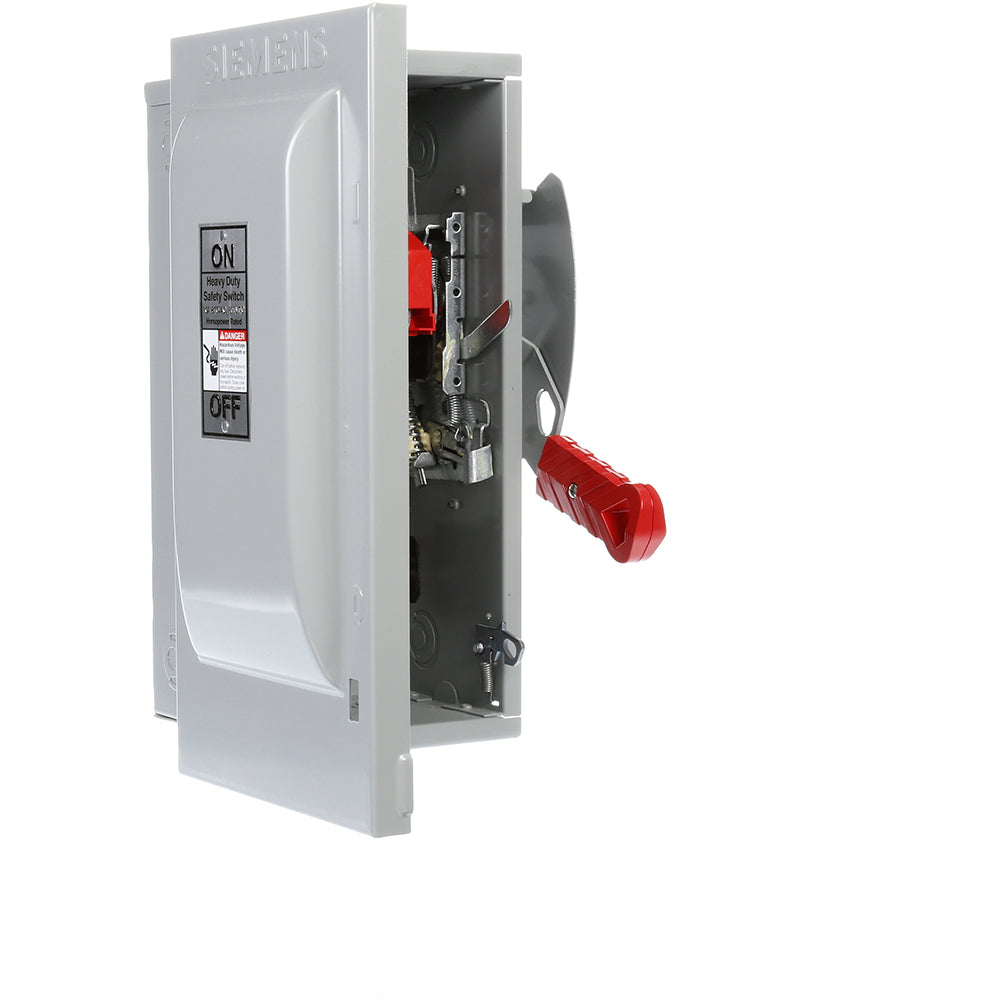

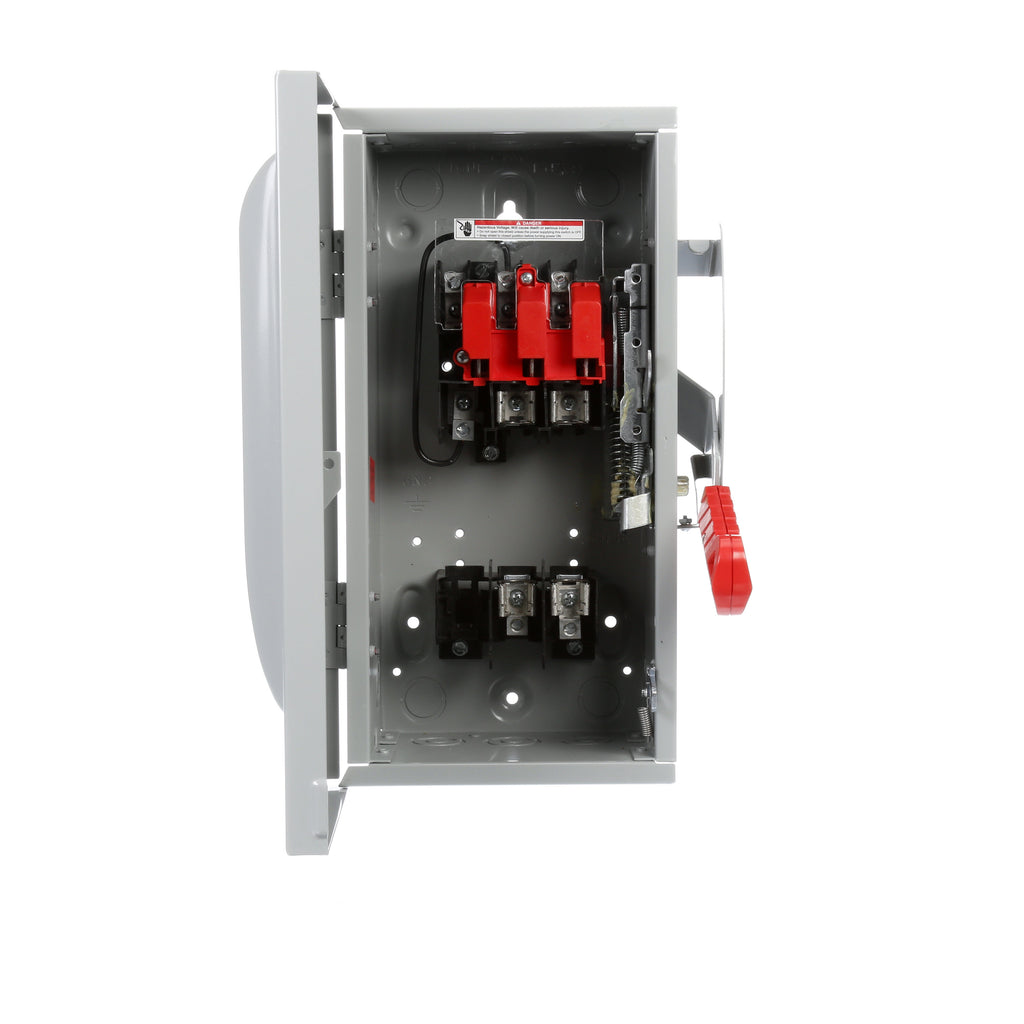

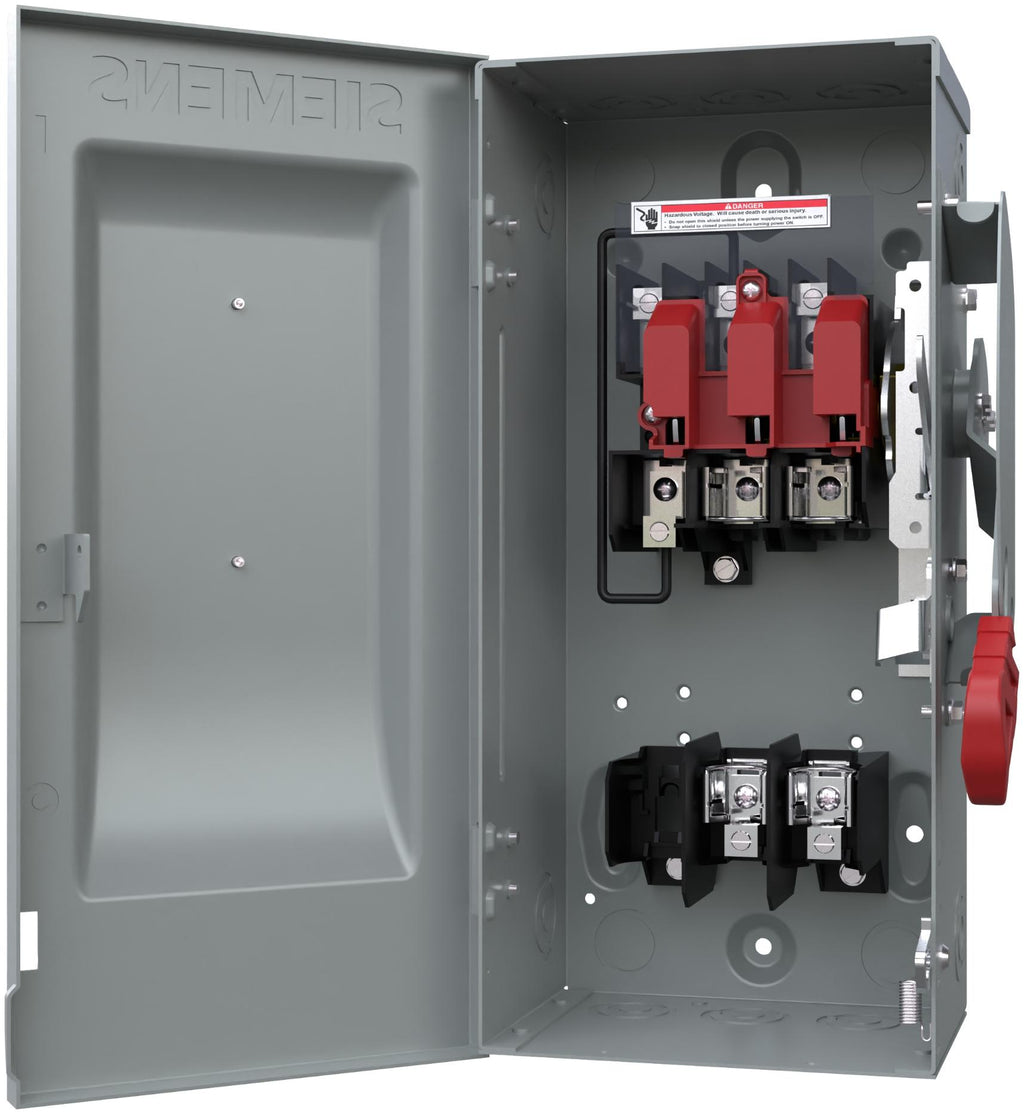

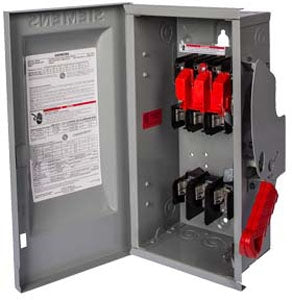

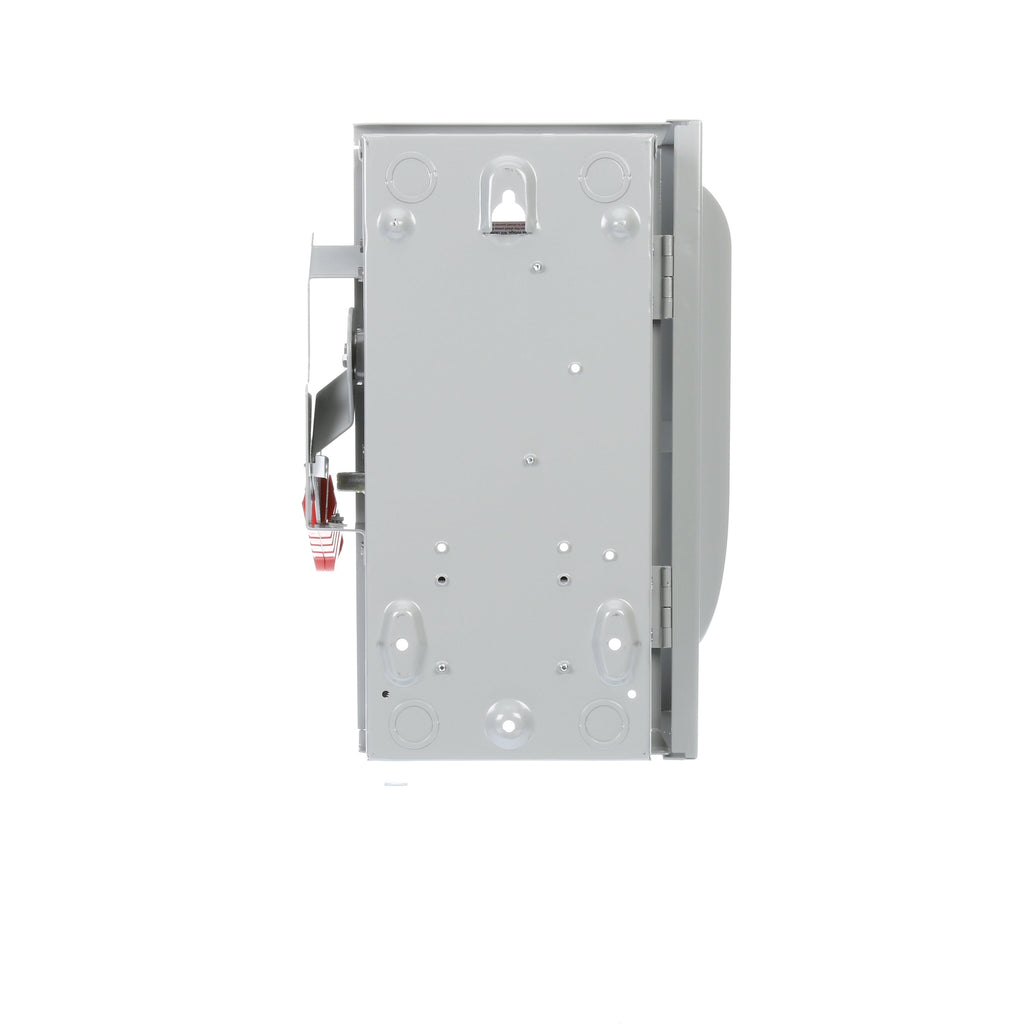

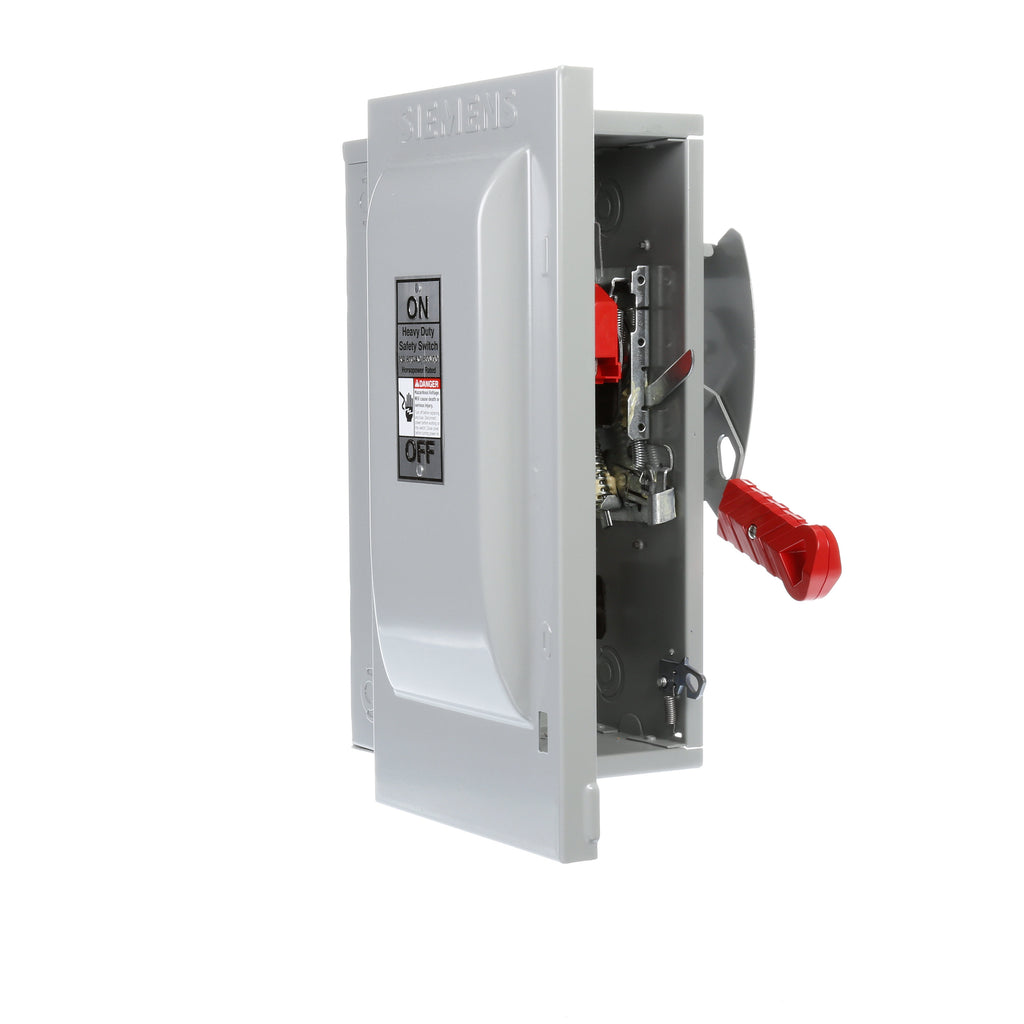

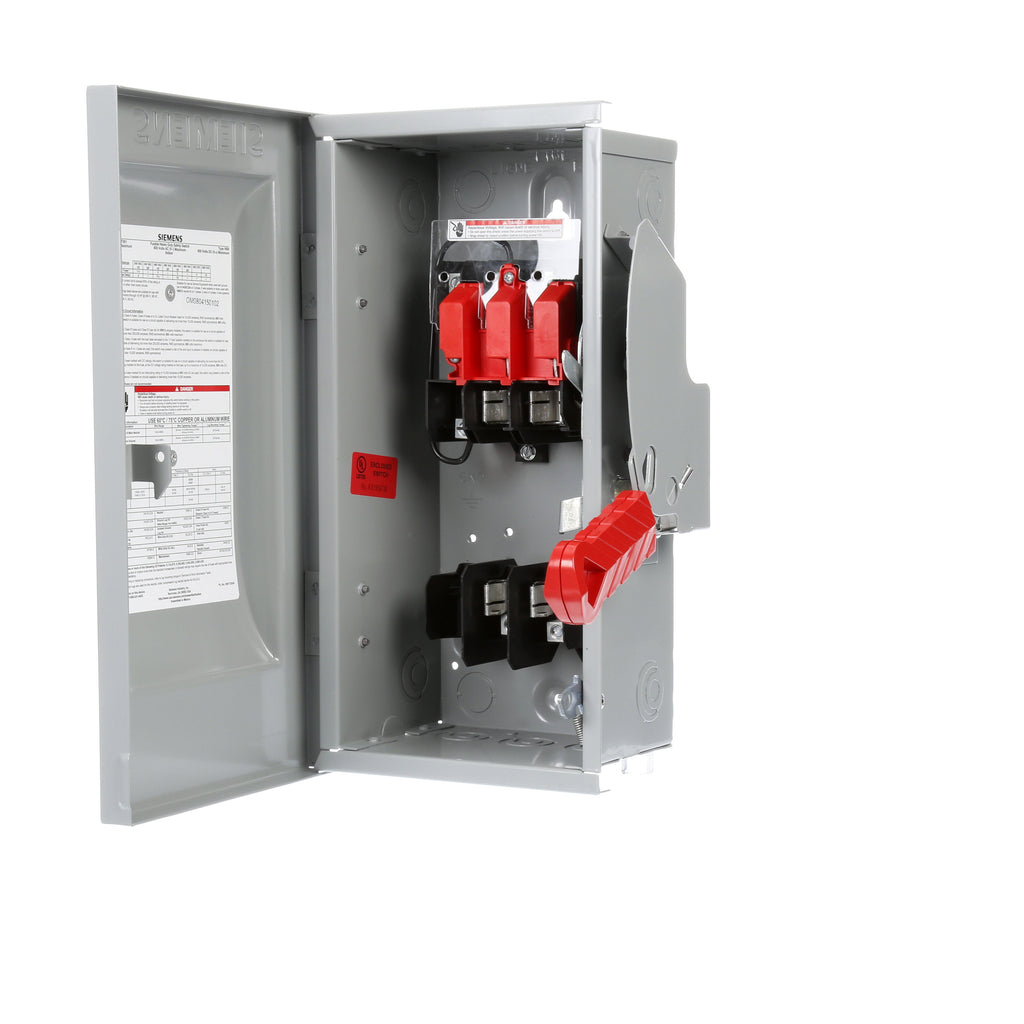

HF261 - Siemens Type VBII enclosed fusible heavy duty low voltage safety switch, 2-pole, rated for 30A at 600VAC/600VDC.This Siemens HF261 is a 2-pole, 2-wire fusible heavy duty safety switch in a NEMA 1 steel enclosure for indoor applications. It features quick-make quick-break operation, visible double break blades, arc chutes for heat dissipation, red handle grip for hook stick operation, and defeatable dual cover interlock. Surface mount design with lug terminals supports 60Hz single phase systems up to 3HP standard rating.

• Part Number: HF261
• Manufacturer: Siemens
• Amperage Rating: 30A
• Voltage Rating: 600VAC/600VDC
• Number of Poles: 2
• Number of Wires: 2
• Mounting Type: Surface
• Enclosure Type: NEMA 1
• Enclosure Material: Steel
• Short Circuit Rating: 200kA
• Fuse Type: Class H/J/K/R
• Series: HF
• Frequency: 60Hz
• Horsepower: 3HP at 600VAC 1-phase

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HF261
• Manufacturer : Siemens
• Brand : Siemens
• Category : Switch
• Item Subcategory : Disconnect
• Section : Fusible Disconnect Switch
• Family : VBII Series
• Type : HF
• Voltage : 600 AC AC
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 200kA@600V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 1
• Compatible Frames : MJP

Product Data

• UPC : 783643173880
• GTIN : 00783643173880
• Country of Origin : Mexico
• Dimensions : 14.6 x 7.75 x 8.89 inch
• Weight : 13.001
• Certification : UL listed
