Product Info
- Manufacturer:Siemens
- Sub-Category:Disconnect
Description
HF261S

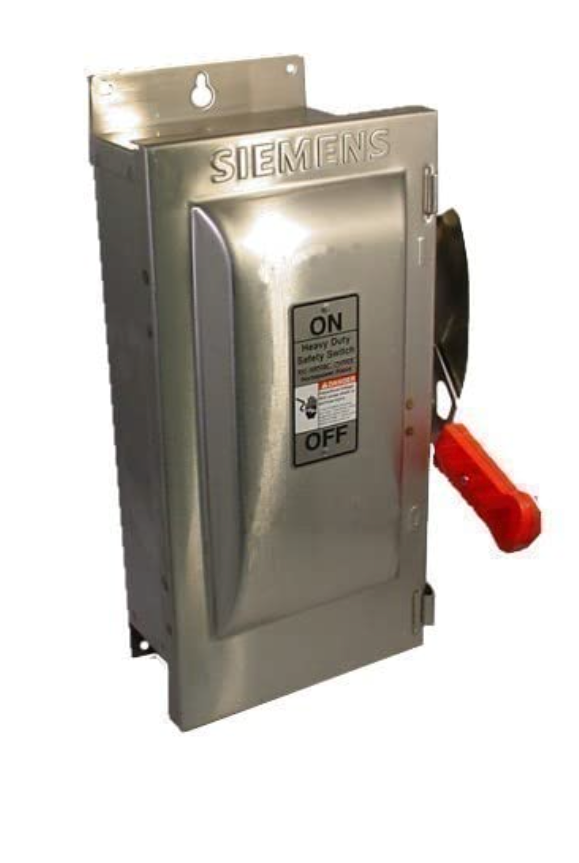

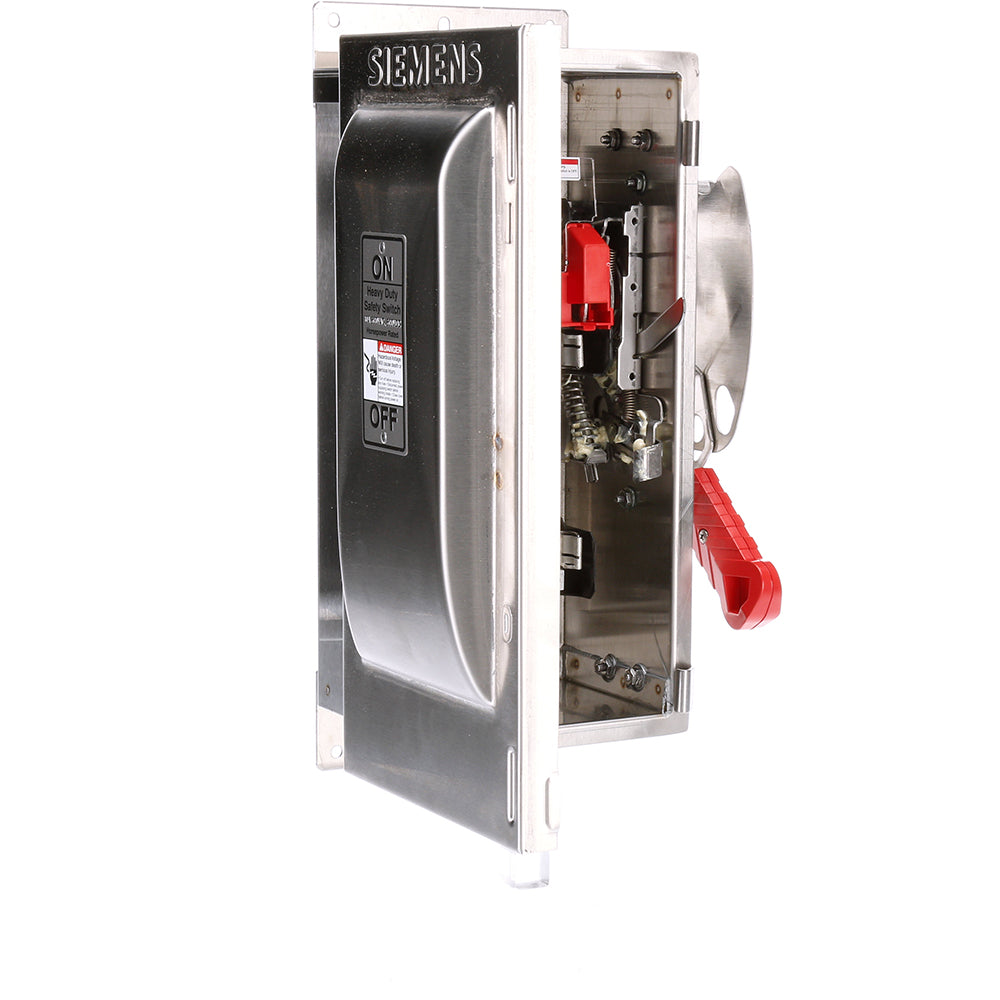

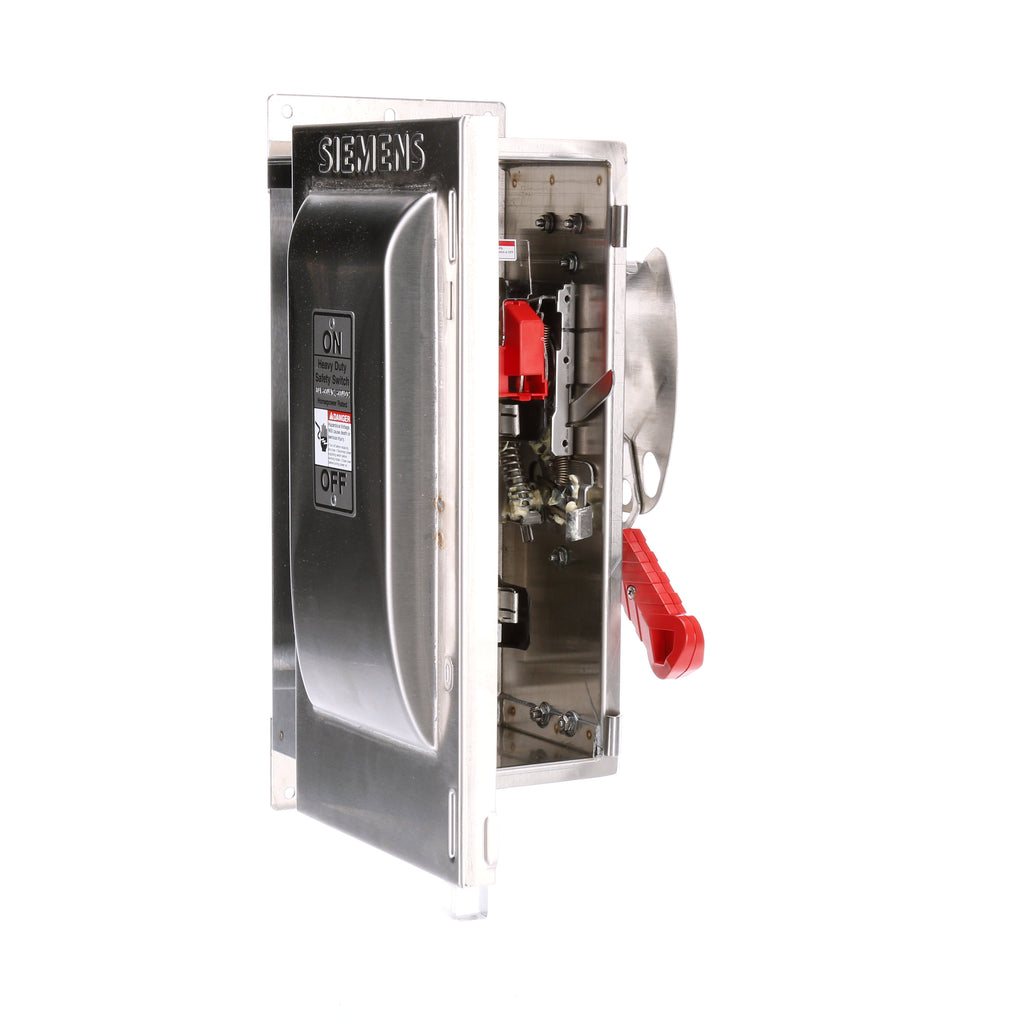

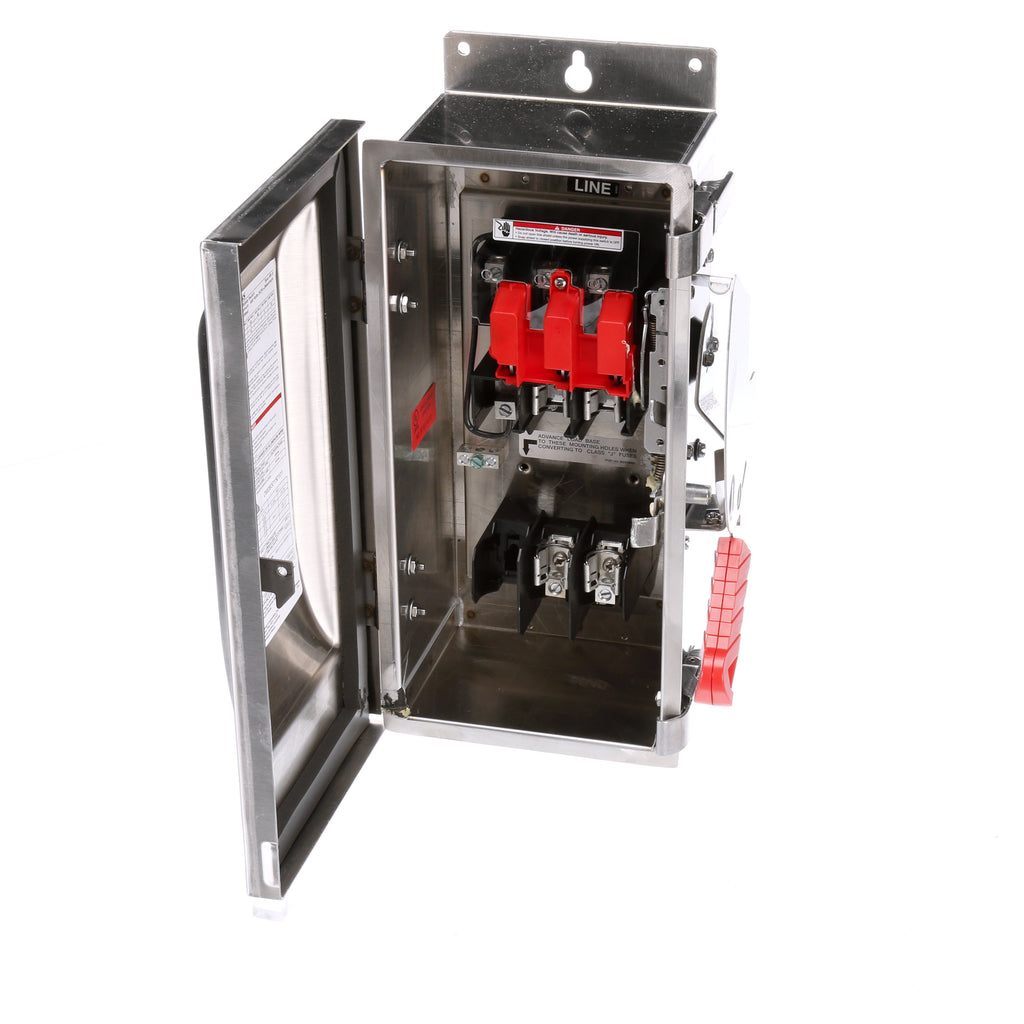

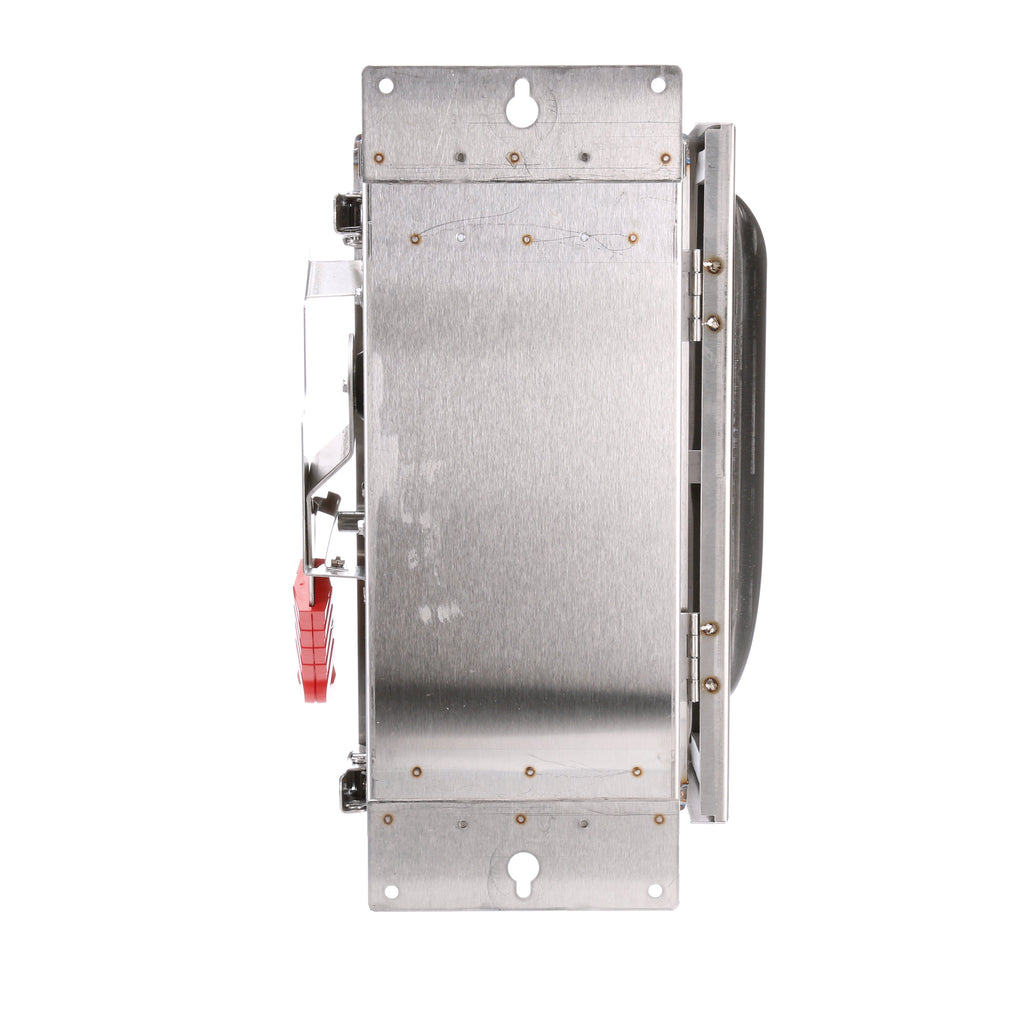

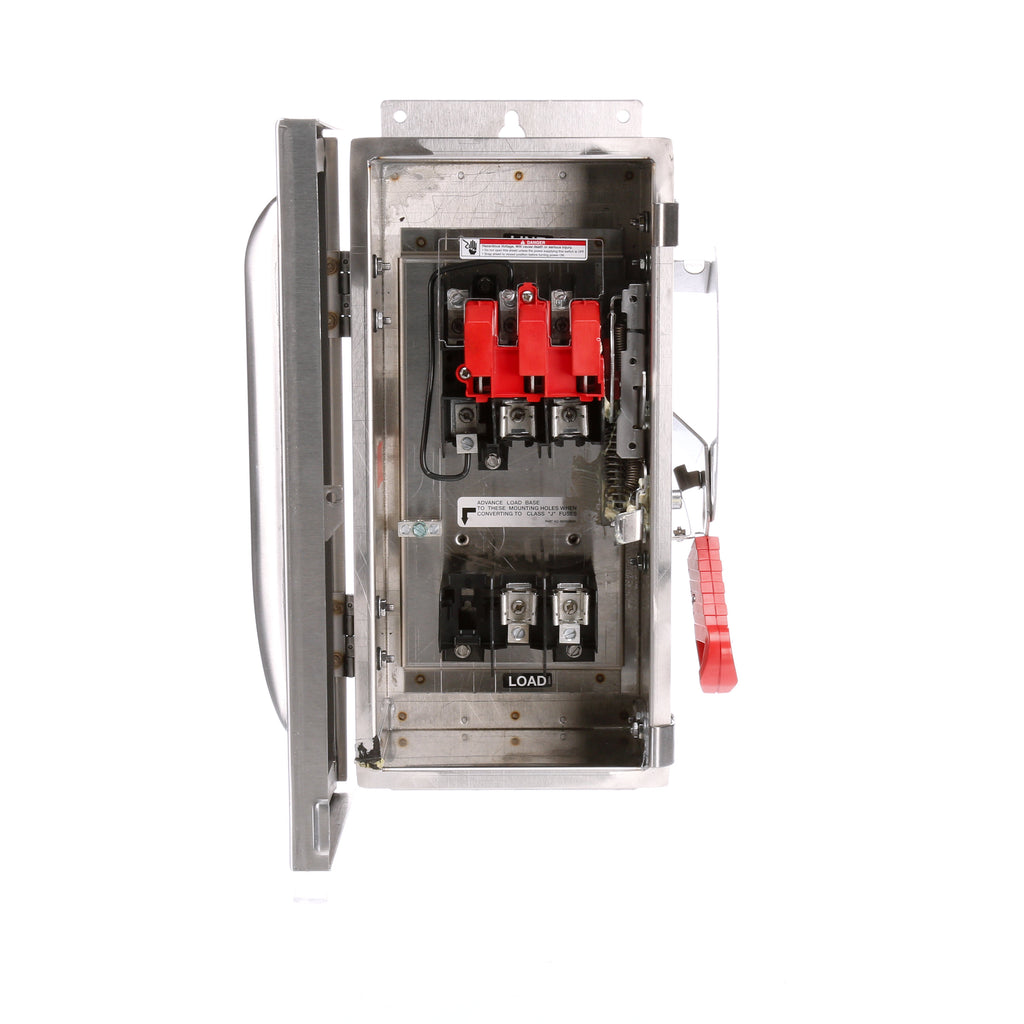

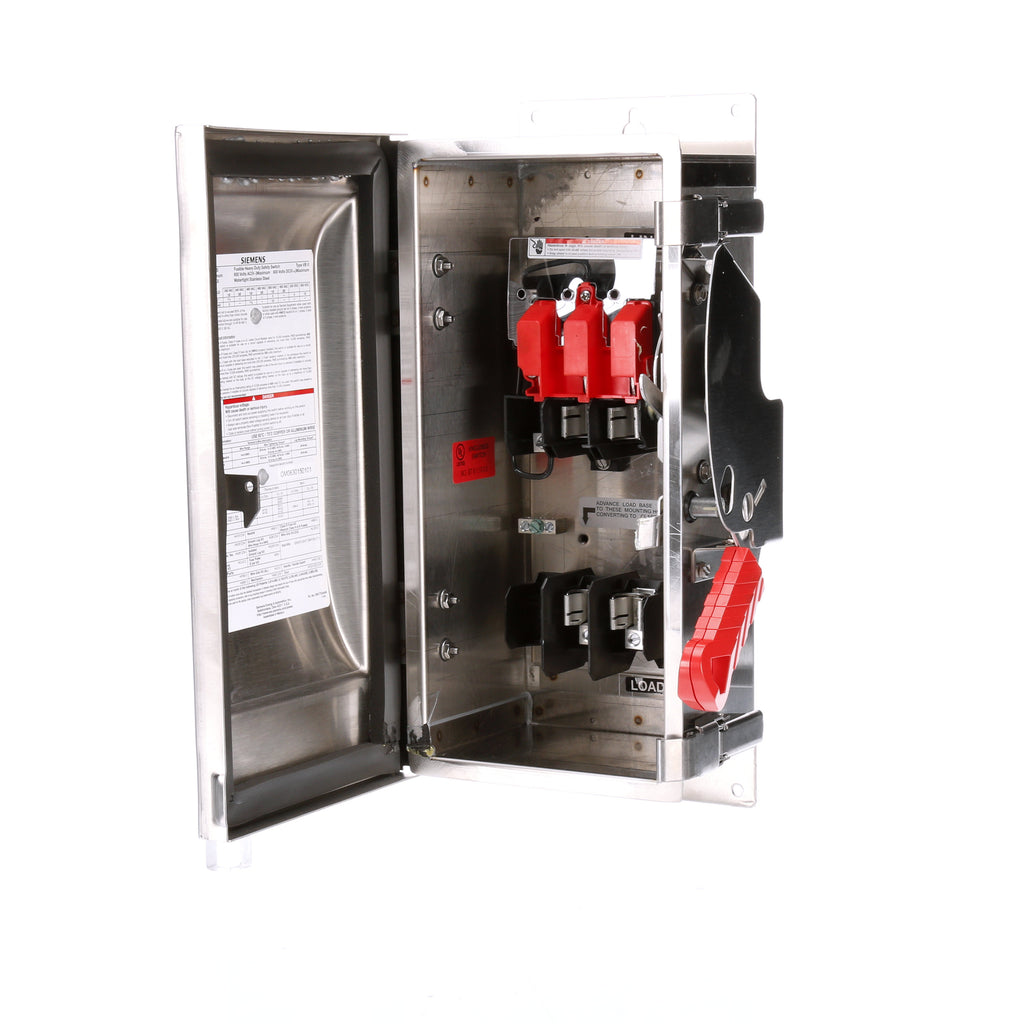

HF261S - Siemens Type VBII enclosed fusible heavy duty low voltage single throw safety switch rated at 30A, 600 VAC/VDC, 2 pole.This Siemens heavy duty safety switch features a NEMA 4X 304 stainless steel enclosure for corrosion resistance, surface mounting, and front removable mechanical lugs suitable for copper/aluminum 60/75 deg C conductors. It provides 200 kA short circuit current rating, DPST contact form, 60 Hz frequency, and visible ON/OFF indication with hinged clear line terminal shield.
- Amperage Rating: 30 A
- Voltage Rating: 600 VAC/VDC
- Number of Poles: 2
- Mounting Type: Surface
- Short Circuit Current Rating: 200 kA
- Enclosure Type: NEMA 4X
- Enclosure Material: 304 Stainless Steel
- Contact Form: DPST
- Frequency: 60 Hz
- Horsepower: 3 hp at 240V 1 Phase
- Terminal Type: Lug
- Temperature Range: -29 to 85 deg C
Specifications
- Part Number: HF261S
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Disconnect
- Section : Fusible Disconnect Switch
- Family : VBII Series
- Type : HF
- Voltage : 600 AC AC
- Amperage : 30
- Phase : 1
- Poles : 2
- AIC rating : 200kA@600V
- Fuse Class : R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 4X
- Switch Type : Fusible
- Compatible Frames : MJP
Product Data
- UPC : 783643173958
- GTIN : 00783643173958
- Country of Origin : Mexico
- Dimensions : 11.811 x 7.874 x 19.685 inch
- Weight : 17.328 lb
- Certification : UL listed
