Product Info
- Manufacturer:Siemens
- Sub-Category:Disconnect
Description
HF261J

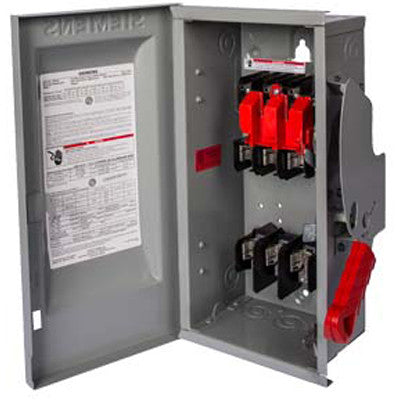

HF261J is a Siemens enclosed fusible heavy duty safety switch designed for industrial power distribution and circuit protection applications. This 2-pole disconnect switch provides reliable switching and isolation in NEMA 12 rated enclosures, making it suitable for harsh industrial environments requiring protection from dust and moisture.Key Specifications
- Manufacturer: Siemens
- Amperage Rating: 30 Amp
- Voltage Rating: 600 VAC / 600 VDC
- Number of Poles: 2-Pole
- Contact Form: DPST (Double Pole Single Throw)
- Enclosure Type: NEMA 12
- Switch Type: Fusible Heavy Duty Safety Switch
- Interrupting Rating: 200 kAIC at 600V
- Horsepower: 3 hp, 10 hp
- Operating Cycles: 10,000
- Enclosure Dimensions: 12 inches L x 8 inches W x 20 inches H
Specifications
- Part Number: HF261J
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Disconnect
- Section : Fusible Disconnect Switch
- Family : VBII Series
- Type : HF
- Voltage : 600 AC AC
- Amperage : 30
- Phase : 1
- Poles : 2
- AIC rating : 200kA@600V
- Fuse Class : R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 12
- Compatible Frames : MJP
Product Data
- UPC : 783643174009
- GTIN : 00783643174009
- Country of Origin : Mexico
- Dimensions : 11.811 x 7.874 x 19.685 inch
- Weight : 16.424 lb
- Certification : UL listed
