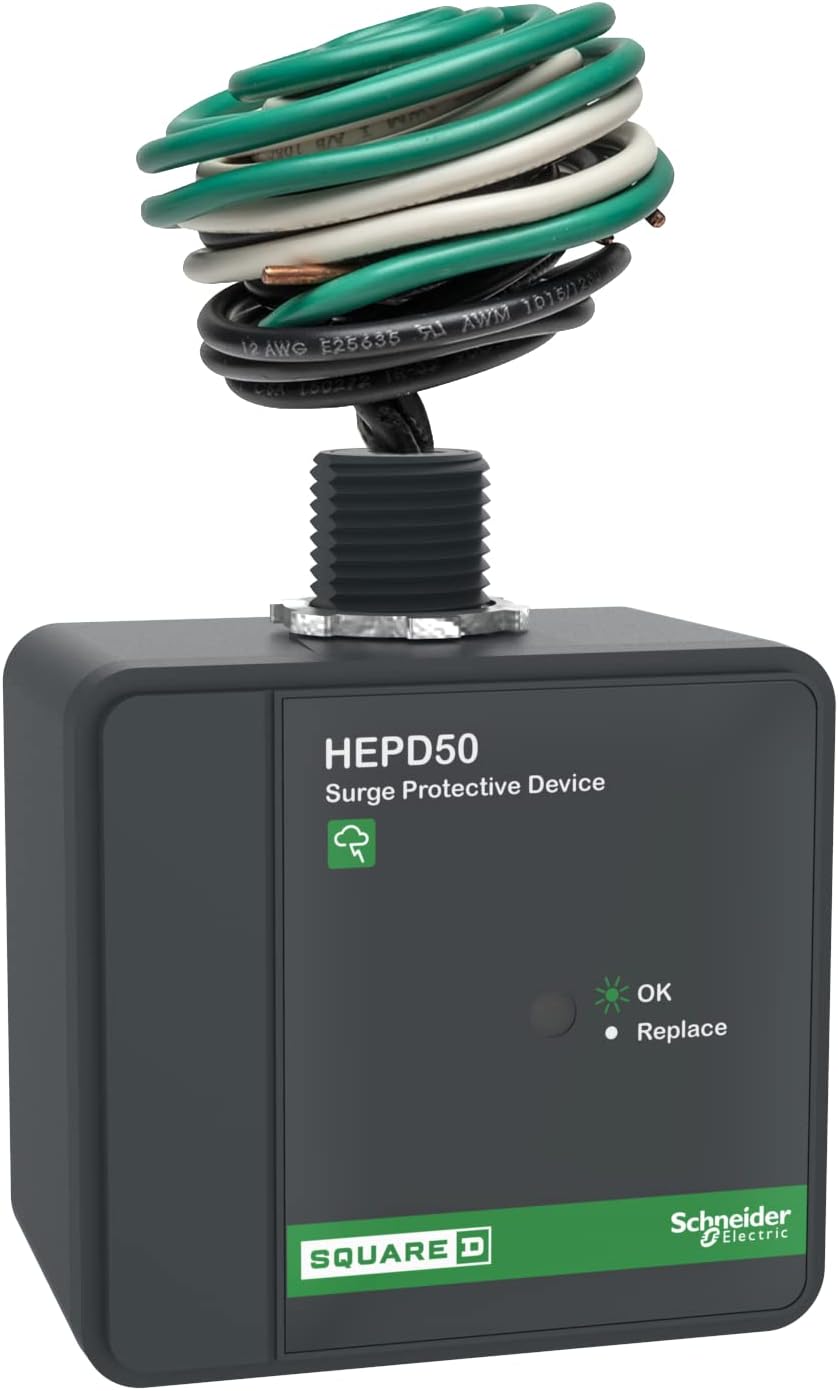

HEPD50 - Schneider Electric 50kA 120/240V 1-Phase 3-Wire Surge Protection Device Type 1 NEMA 4X

HEPD50

This device provides 50kA surge protection per phase and 25kA short circuit current rating, suitable for 120/240 V AC, 1 phase, 3 wire systems. It features a NEMA 4X rated enclosure for durability and is compliant with UL 1449 Type 1 standards. The device connects in parallel using 12 AWG solid wire and includes green LED status indicators for easy monitoring. Operating temperature ranges from -40°F to 149°F (-35°C to 65°C), making it suitable for various environments.

Key Specifications
• Surge Current Capacity: 50kA per phase
• Short Circuit Current Rating (SCCR): 25kA
• Voltage Rating: 120/240 V AC, 1 phase, 3 wire
• Maximum Continuous Operating Voltage (MCOV): 150 V L-N / L-G, 300 V N-G / L-L
• Voltage Protection Rating (VPR): 600 V L-N/L-G, 900 V N-G, 1000 V L-L
• Connection: Parallel, 12 AWG solid wire, 34 inch length
• Enclosure: NEMA 4X
• Standards: UL 1449 4th Edition Type 1
• Operating Temperature: -40°F to 149°F (-35°C to 65°C)
• Phase: Single phase
• Mounting Type: Panel mount
• LED Status Indicator: Green LED for operational status

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Specifications

• Part Number: HEPD50
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Parts & Accessories
• Section : Surge Protection
• Type : HEPD
• Voltage : 120/240 AC



Product Data

• UPC : 785901006626
• GTIN : 00785901006626
• Country of Origin : Mexico
• Dimensions : 3.23 in (82.04 mm) x 3.72 in (94.49 mm) x 2.10 in (53.34 mm) (Height x Width x Depth)
• Weight : 0.9 lb
• Standards : UL 1449, CUL, UL 1449:ed. 4: type II
• Certification : UL 1449 || cUL || UL 1449:ed. 4: type II
