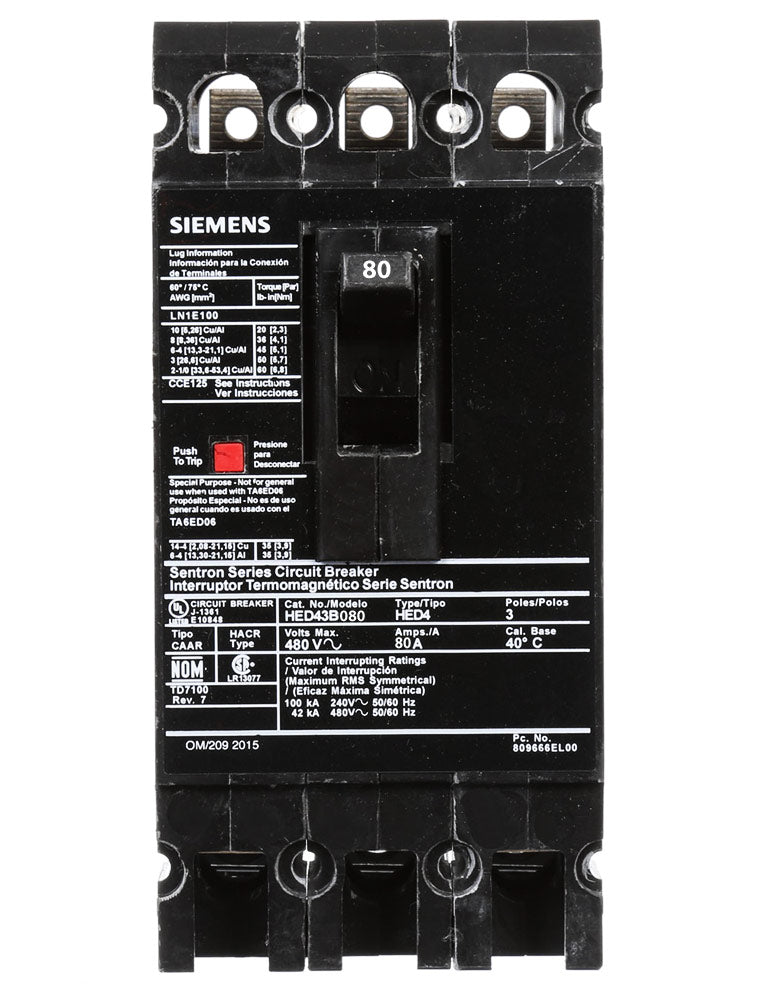

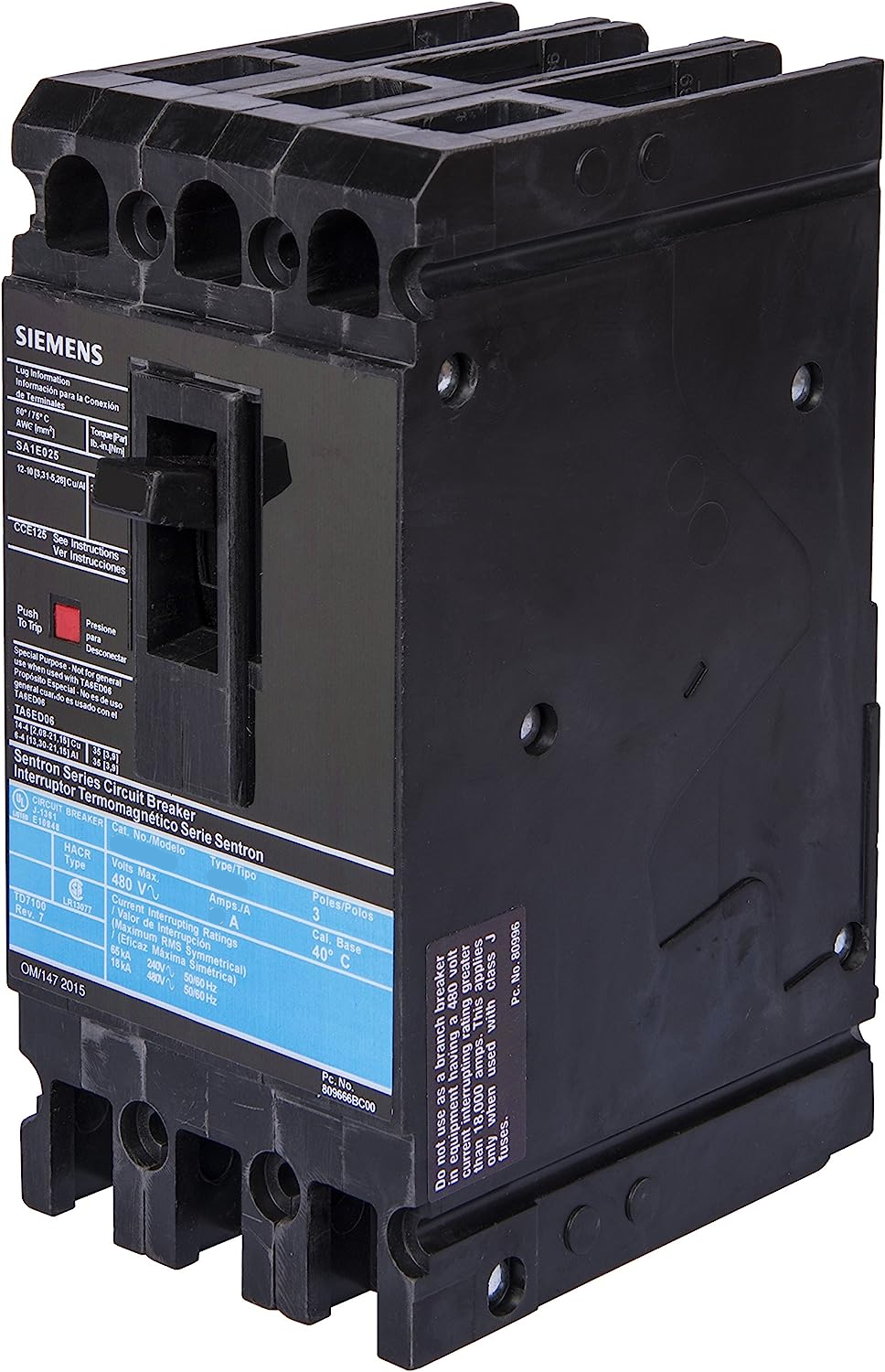

HED43B080L - Siemens 80A 480V 3-Pole Thermal Magnetic Molded Case Circuit Breaker ED Frame

HED43B080L

HED43B080L is a Siemens 3-pole, 80 amp, 480 volt thermal magnetic molded case circuit breaker from the ED series frame.This circuit breaker features a 42 kA interrupting rating at 480 VAC and 100 kA at 240 VAC, designed for reliable protection in industrial and commercial power distribution applications. It includes lug-type terminals and is suitable for mounting in standard panelboards or switchboards.

• Amperage: 80 Amps
• Voltage Rating: 480 VAC
• Poles: 3
• Interrupting Rating: 42 kA at 480 VAC, 100 kA at 240 VAC
• Trip Unit: Thermal Magnetic
• Series/Frame: ED
• Mounting Type: Lug
• Frequency: 50/60 Hz
• Dimensions: Approximately 6.35" x 3" x 4.56"
• Weight: Approx. 3.7 lbs
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HED43B080L
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HED
• Voltage : 480
• Amperage : 80
• Phase : 3
• Poles : 3
• AIC rating : 42kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Frame Size : ED Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643236493
• GTIN : 00783643236493
• Country of Origin : Mexico
• Weight : 3.616
• Certification : Ul Listed
• Wire Size : AWG 10 to AWG 1/0, Cu/Al
