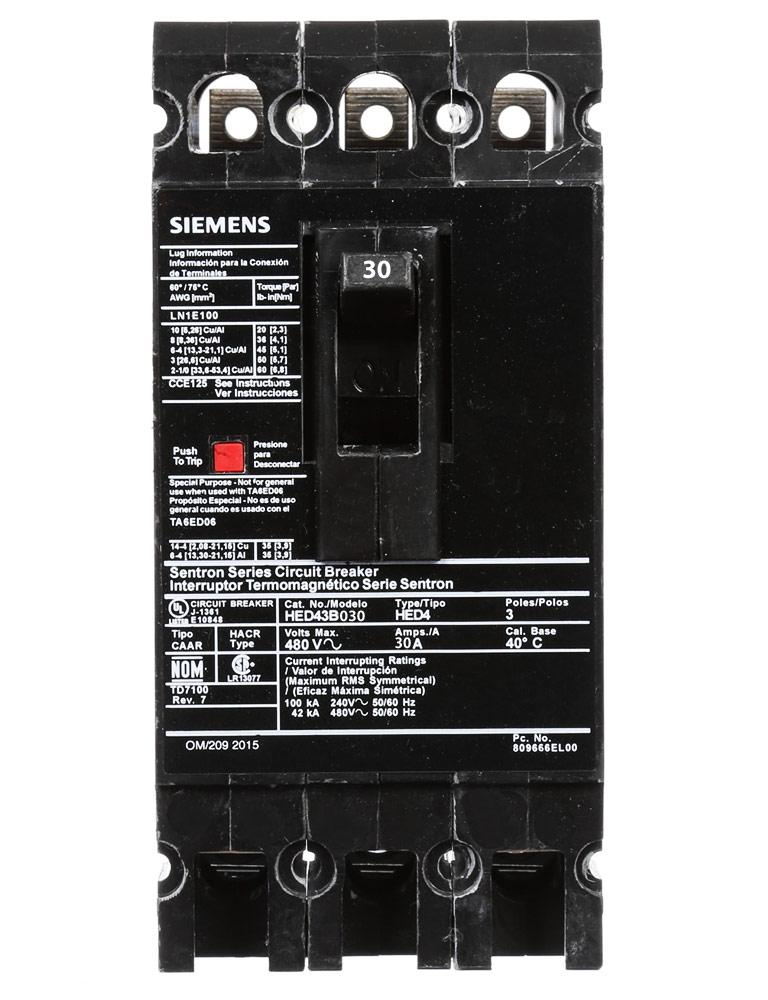

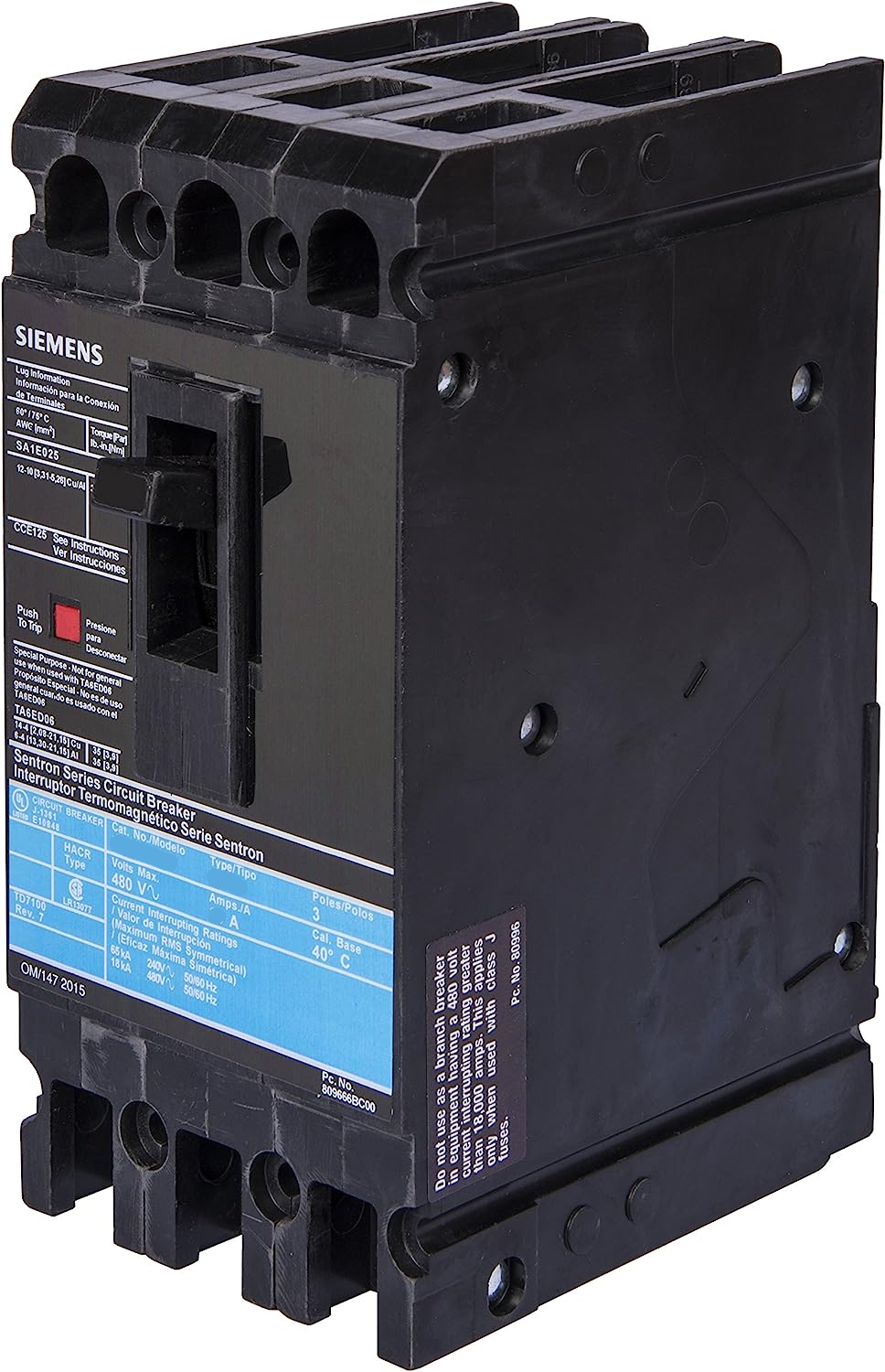

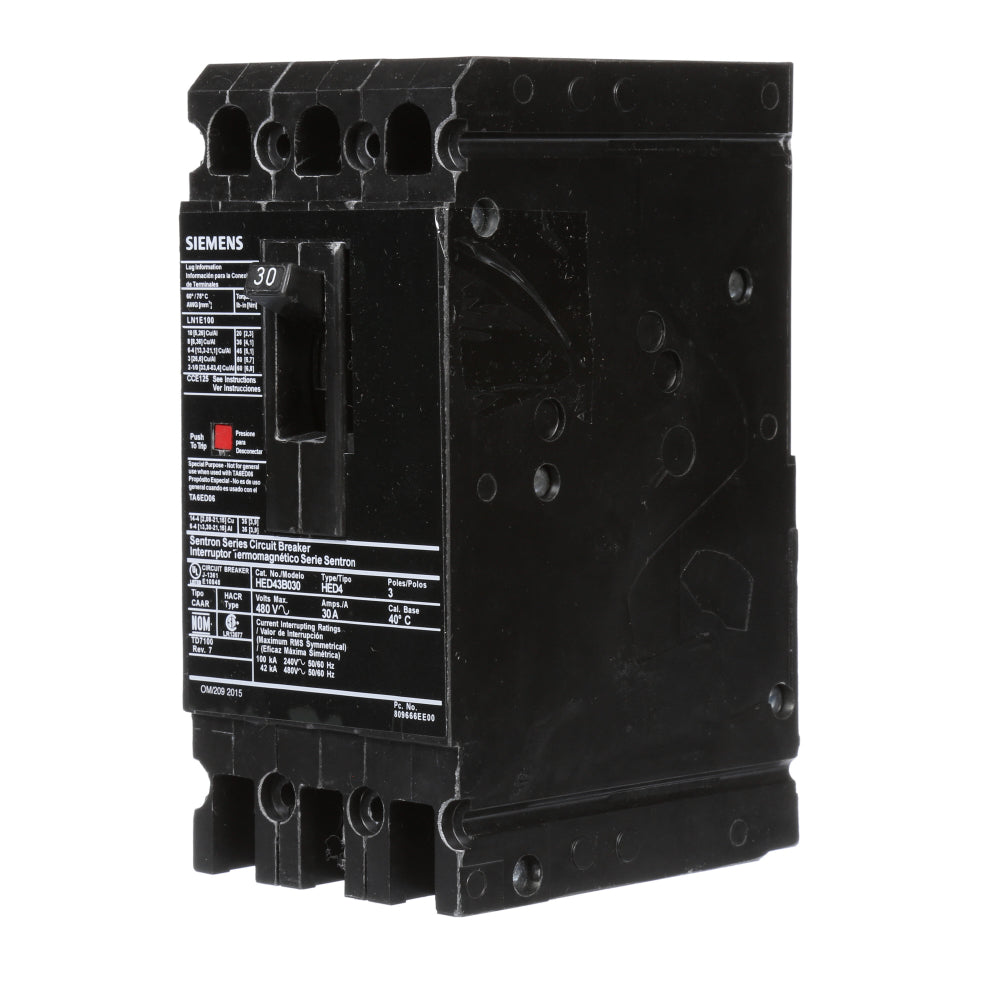

HED43B030 - Siemens 30A 480V 3 Pole Molded Case Circuit Breaker, Bolt-On, 42kAIC, Sentron Series

HED43B030

HED43B030 is a Siemens Sentron Series 30A 480V 3 pole molded case circuit breaker with high interrupting capacity and bolt-on mounting for reliable electrical protection. This Siemens HED43B030 circuit breaker features a 42kAIC interrupt rating at 480V, thermal magnetic trip unit, and is designed for use in industrial and commercial power distribution systems. The breaker is UL 489 and CSA 22.2 listed, and includes load lug terminals for secure wire connections.

• Part Number: HED43B030
• Manufacturer: Siemens
• Series/Frame: Sentron, HED
• Amperage: 30A
• Voltage: 480V
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 42kAIC at 480V
• Protection Type: Thermal Magnetic
• Standards: UL 489, CSA 22.2
• Wire Range: 10 to 1/0 AWG (CU/AL)
• Special Features: Load Lugs Only

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HED43B030
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HED
• Voltage : 480
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 42kA@480V
• Connection : Lug In Panelboard
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
• Breaker Type : High Interrupting Capacity
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 783643210127
• GTIN : 00783643210127
• Country of Origin : Mexico
• Dimensions : 3 in x 6.34 in
• Weight : 3.657
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
• Certification : HACR Rated, UL Listed
• Wire Size : AWG 10 to AWG 1/0, Cu/Al
