Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HED43B035

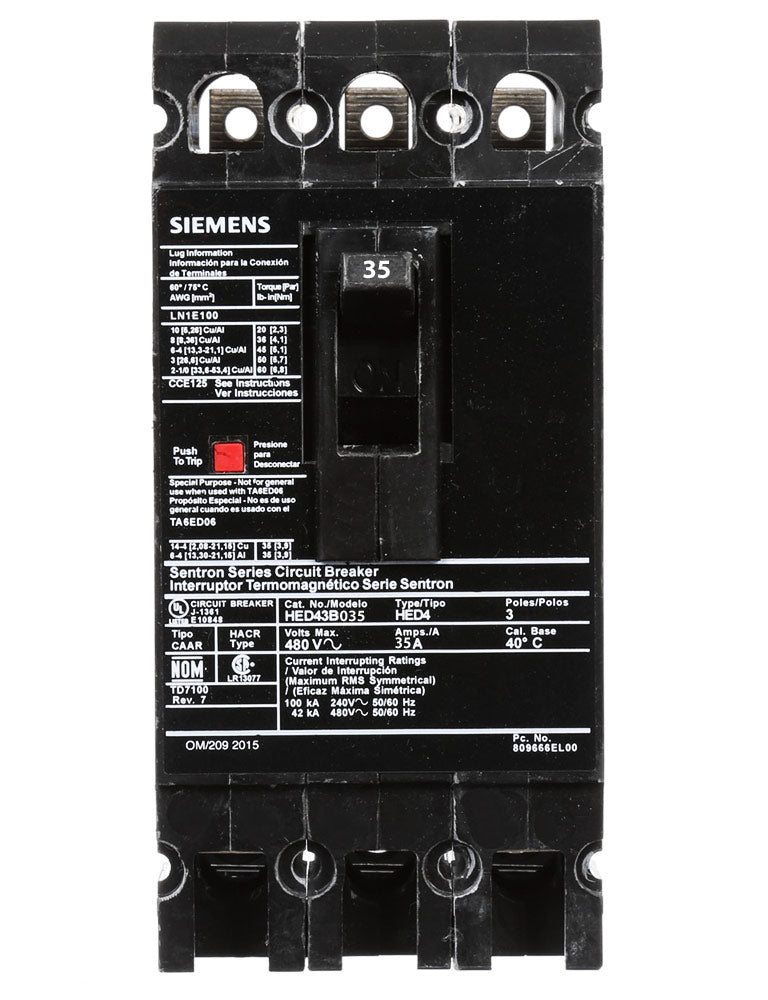

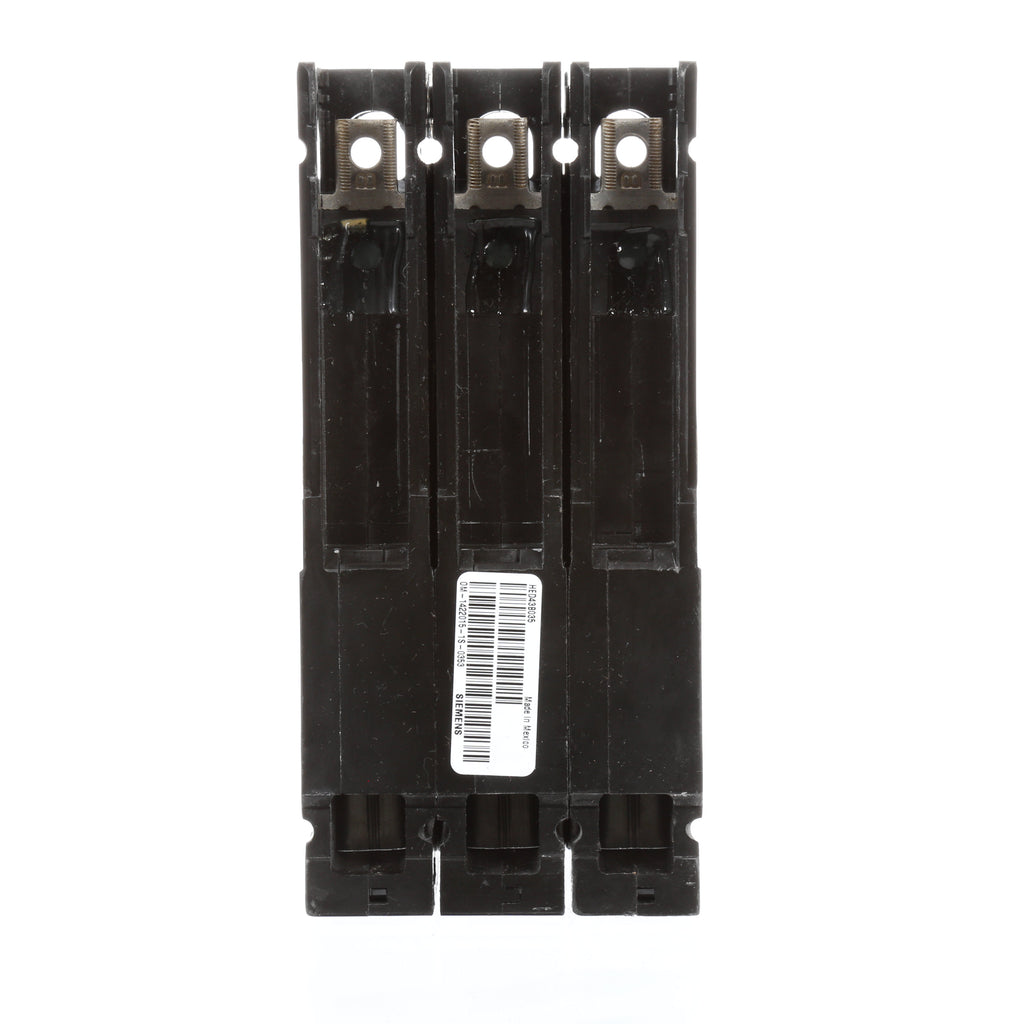

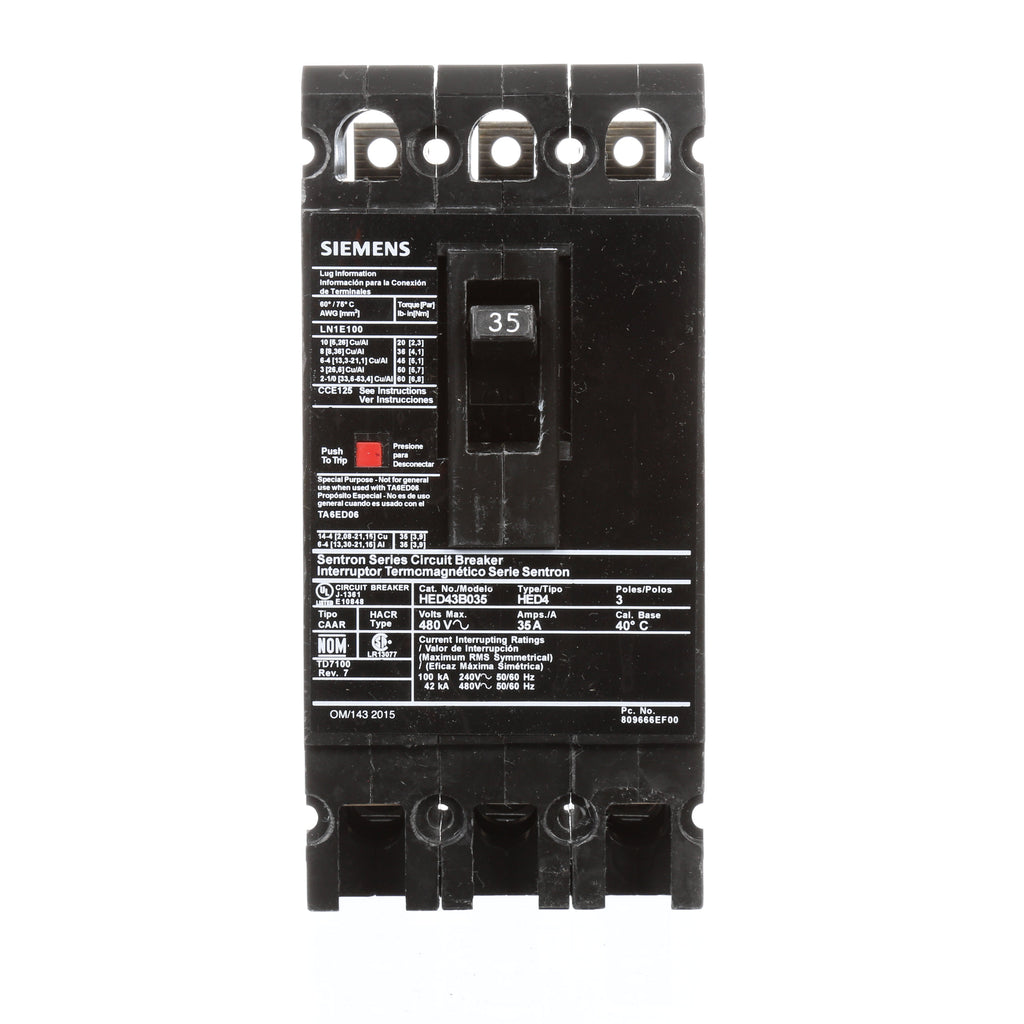

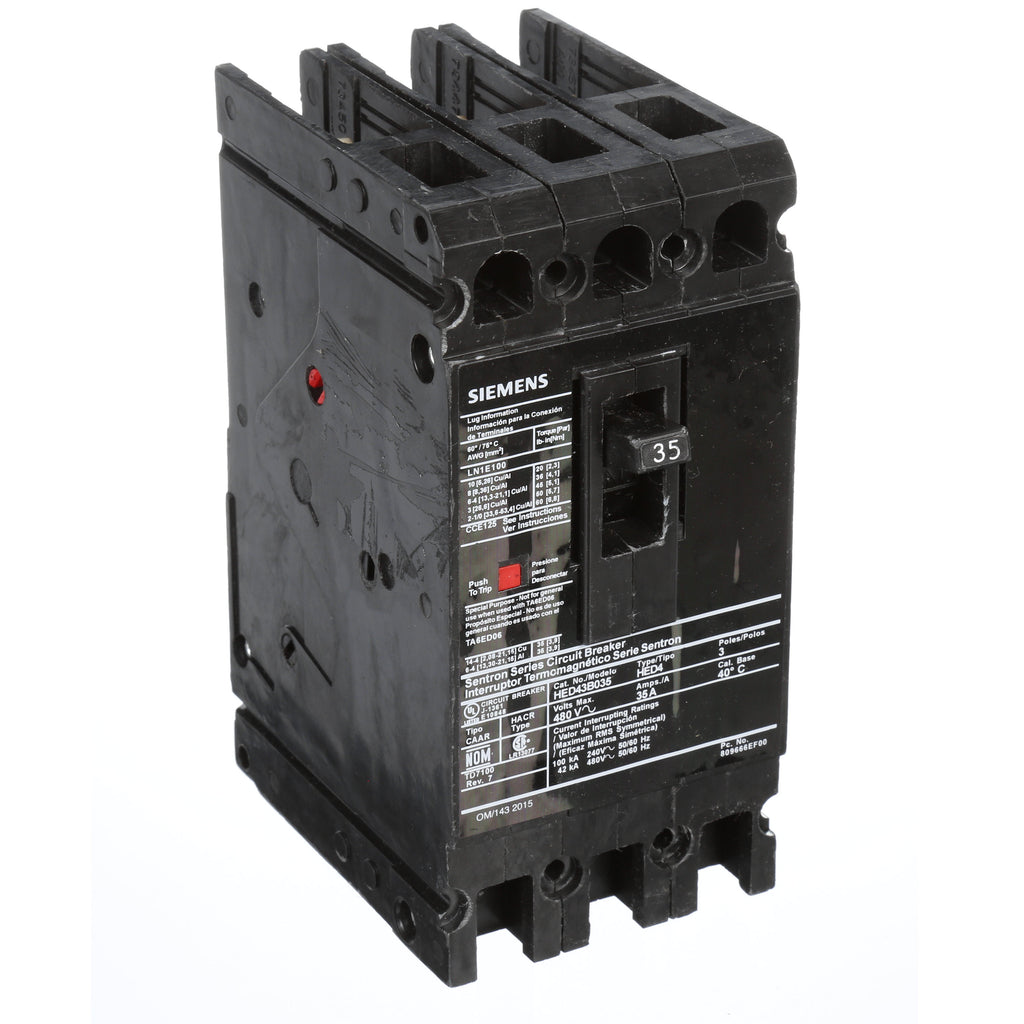

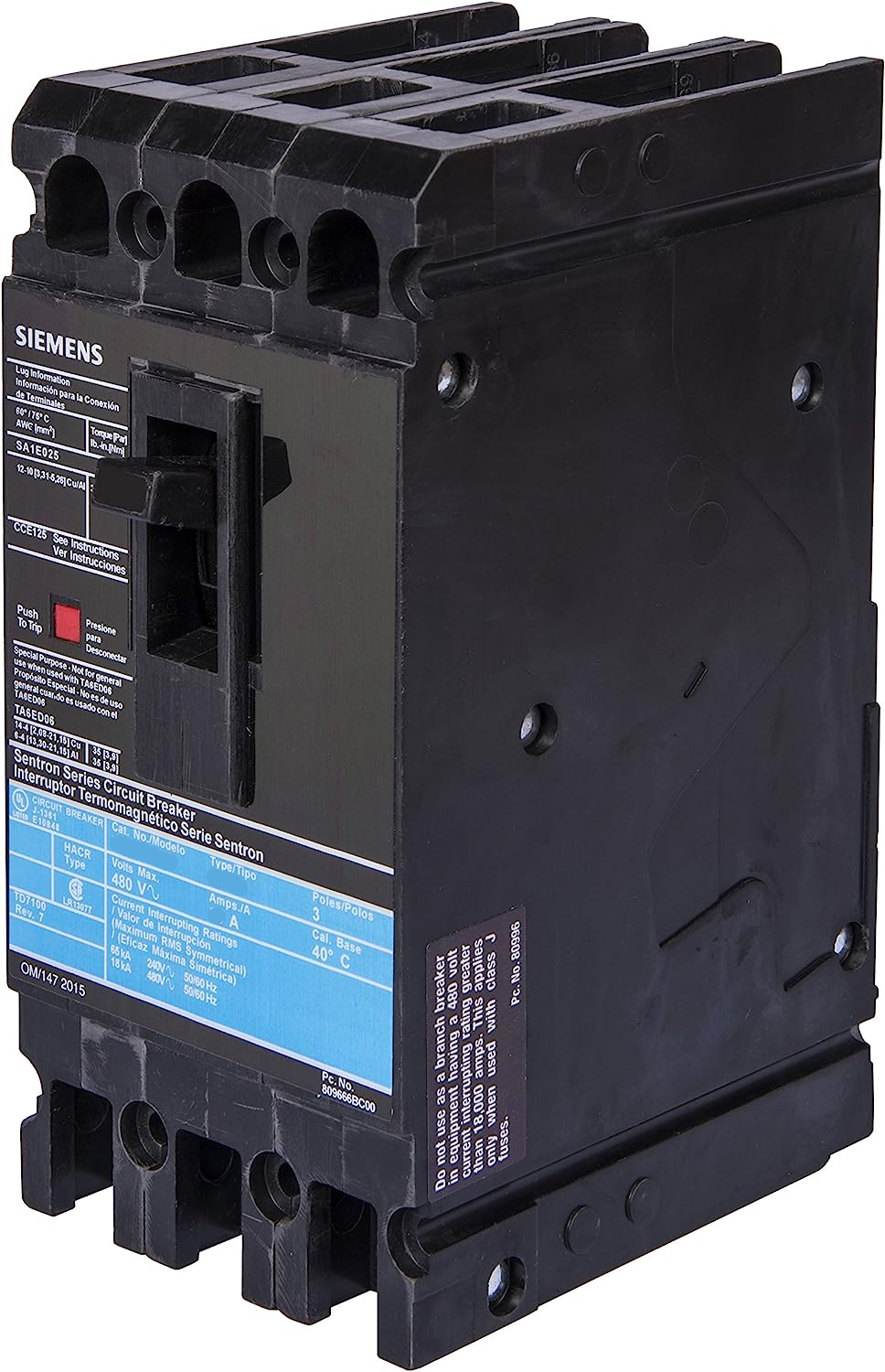

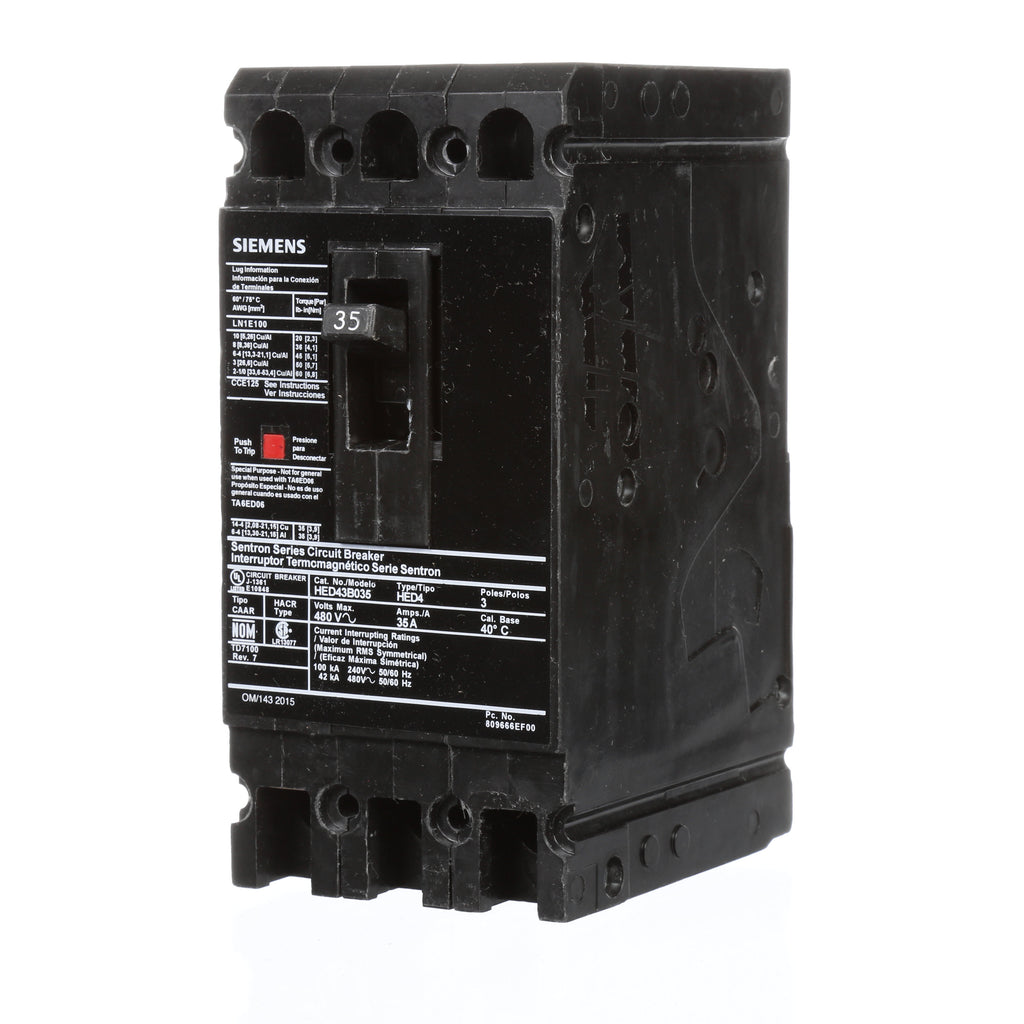

HED43B035 is a Siemens 3-pole molded case circuit breaker designed for reliable protection in commercial and industrial power distribution systems. This breaker features a 35A current rating, 480VAC voltage rating, and a high interrupting capacity of 42kAIC at 480V, making it suitable for demanding applications. The HED frame provides robust performance and durability, while the bolt-on mounting ensures secure installation. It meets UL 489 and IEC 60947-2 standards for safety and reliability. This Siemens HED43B035 circuit breaker is a thermal magnetic type, offering dependable overcurrent protection. Its compact design and high breaking capacity make it ideal for use in panelboards and switchgear. The breaker is designed for easy installation and maintenance, with a focus on long-term reliability in critical environments.
- Part Number: HED43B035
- Manufacturer: Siemens
- Amperage: 35A
- Voltage: 480VAC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 42kAIC at 480V
- Series/Frame: HED
- Trip Unit: Thermal Magnetic
- Certifications: UL 489, IEC 60947-2
- Application: Commercial, Industrial
- Standards: UL 489, IEC 60947-2
Specifications
- Part Number: HED43B035
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : HED
- Voltage : 480
- Amperage : 45
- Phase : 3
- Poles : 3
- AIC rating : 42kA@480V
- Connection : Lug In Panelboard
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Load Side Lug
- Frame Size : 125A/ED
- Temp Rating : -13–158 °F (-25–70 °C)
- MCM Size : Min. Wire Size 1/0 AWG (Al), 3 AWG (Cu) Max. Wire Size 2 AWG (Al), 3 AWG (Cu)
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : ABC
Product Data
- UPC : 783643210134
- GTIN : 00783643210134
- Country of Origin : Mexico
- Dimensions : 3 in x 6.34 in
- Weight : 3.671
- Panel Type : SB Switchboards, Sentron Panelboards
- Standards : HACR Rated, UL Listed
- Certification : HACR Rated, UL Listed
- Wire Size : AWG 10 to AWG 1/0, Cu/Al
