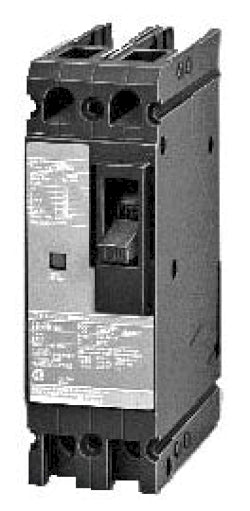

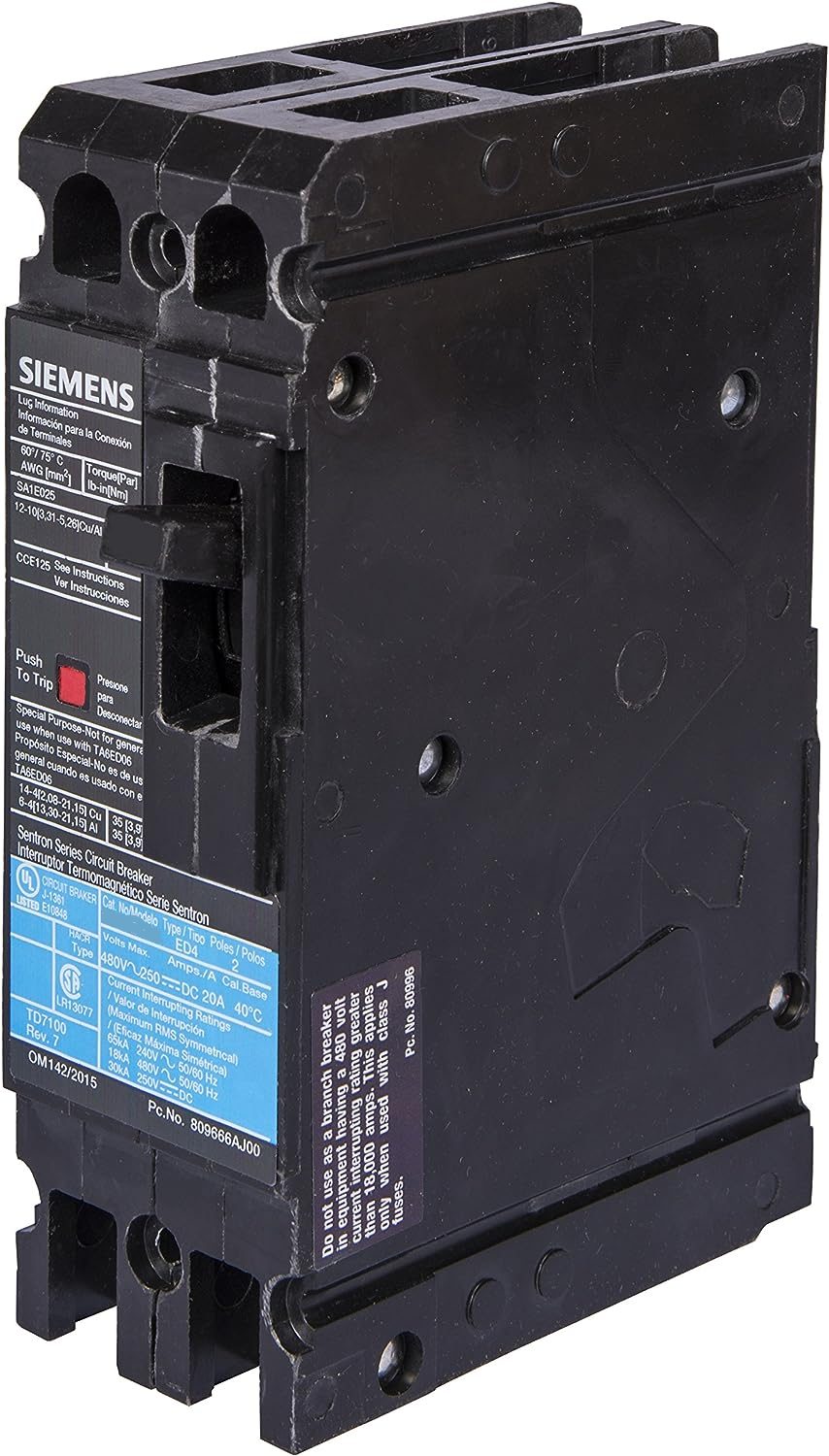

HED42B110 - Siemens 110A 480V 2 Pole Bolt-On Circuit Breaker Thermal Magnetic

HED42B110

HED42B110 is a Siemens 110 Amp, 480 Volt, 2 Pole bolt-on circuit breaker designed for reliable circuit protection.This Siemens HED42B110 circuit breaker features thermal magnetic trip units, a bolt-on mounting style, and is part of the Sentron HED series. It supports a maximum interrupting rating of 42,000 A at 480V AC and 100,000 A at 240V AC. The breaker accommodates wire sizes from #10 AWG to 1/0 AWG using the LN1E100 lug kit and is UL listed and HACR rated for safety and compliance.

Key Specifications
• Amperage: 110A
• Voltage Rating: 480V AC, 250V DC
• Poles: 2 Pole
• Mounting Type: Bolt-On
• Interrupting Rating: 42kA at 480V AC, 100kA at 240V AC
• Series/Frame: HED Sentron Series
• Trip Unit: Thermal Magnetic
• Wire Size Range: #10 AWG to 1/0 AWG (with lug kit)
• Dimensions: 2" W x 6.35" H x 3.92" D
• Certifications: UL Listed, HACR Rated
• Weight: 2.5 lbs
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HED42B110
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HED
• Voltage : 480
• Amperage : 110
• Phase : 1
• Poles : 2
• AIC rating : 42kA@480V
• Connection : Lug In Panelboard
• Functions : Long Time and Instantaneous Trip Functions
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• MCM Size : Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC



Product Data

• UPC : 783643210073
• GTIN : 00783643210073
• Country of Origin : Mexico
• Weight : 2.8
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
• Wire Size : 3 AWG (Cu), 1/0 AWG (Al) Min, 3 AWG (Cu), 2 AWG (Al) Max
