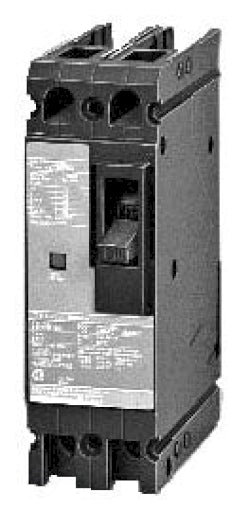

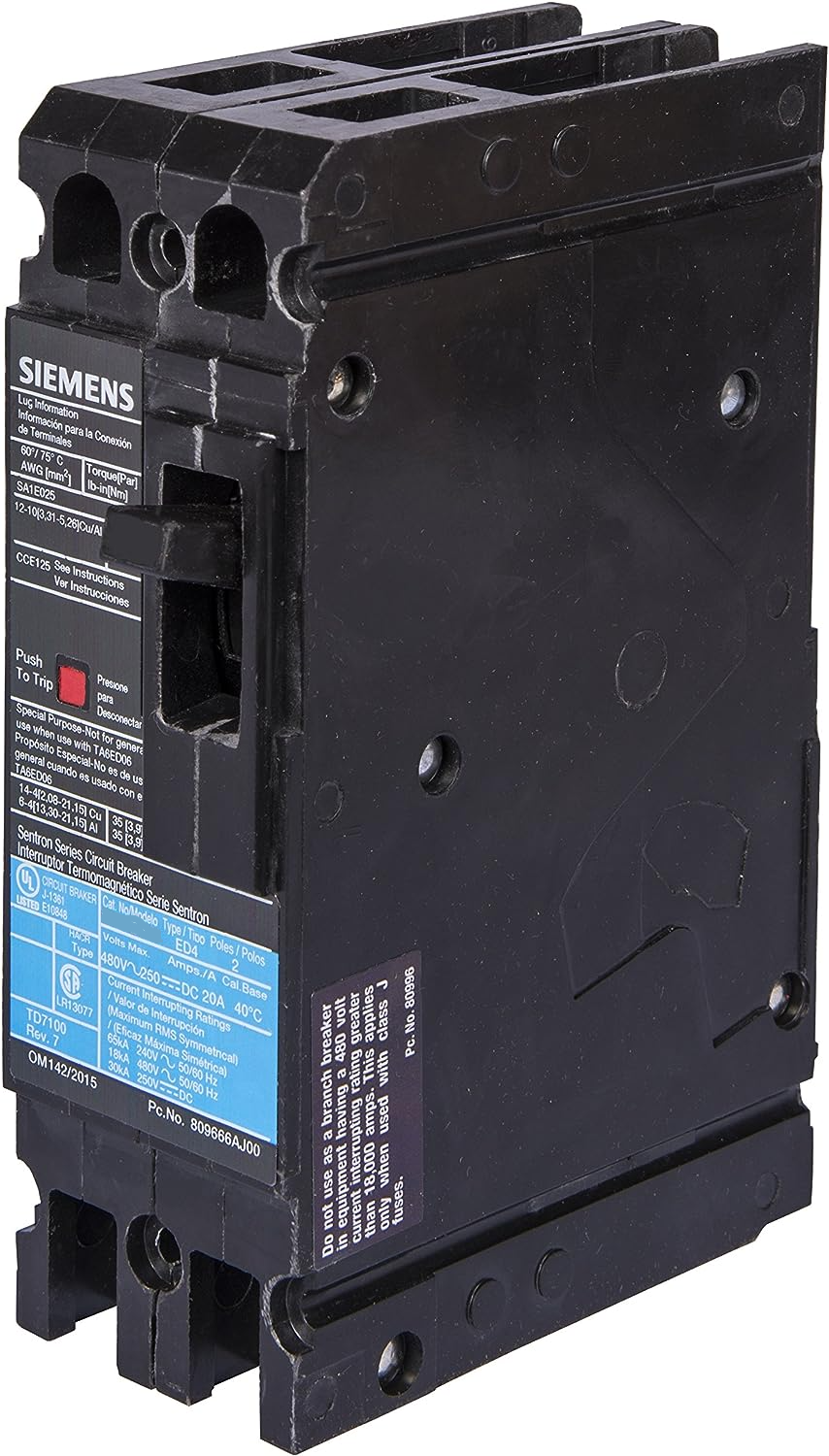

HED42B015 - Siemens 15 Amp 480VAC 2 Pole Thermal Magnetic Circuit Breaker Bolt-On

HED42B015

HED42B015 is a Siemens 2 Pole thermal magnetic molded case circuit breaker rated for 15 Amps and 480VAC voltage.This Siemens Sentron series breaker features a bolt-on mounting type with a 42kA interrupting rating at 480V. It provides reliable overload and short circuit protection with long-time and instantaneous trip functions. The breaker is designed for 1-phase systems and includes load side lug terminal connections, suitable for industrial and commercial electrical distribution.

• Brand: Siemens
• Series: Sentron
• Amperage: 15 Amps
• Voltage: 480VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupting Rating: 42kA at 480V
• Frame Type: HED
• Protection: Thermal Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Terminal Connection: Load Side Lug
• Temperature Rating: 40 °C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HED42B015
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HED
• Voltage : 480
• Amperage : 15
• Phase : 1
• Poles : 2
• AIC rating : 42kA@480V
• Connection : Lug In Panelboard
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
• Breaker Type : High Interrupting Capacity
• Protection : Thermal Magnetic
• Phase Connection : Any

Product Data

• UPC : 783643209947
• GTIN : 00783643209947
• Country of Origin : Mexico
• Dimensions : 2 in x 6.35 in
• Weight : 2.5
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : IEC 60947-2, UL 489
• Certification : IEC 60947-2, UL 489
