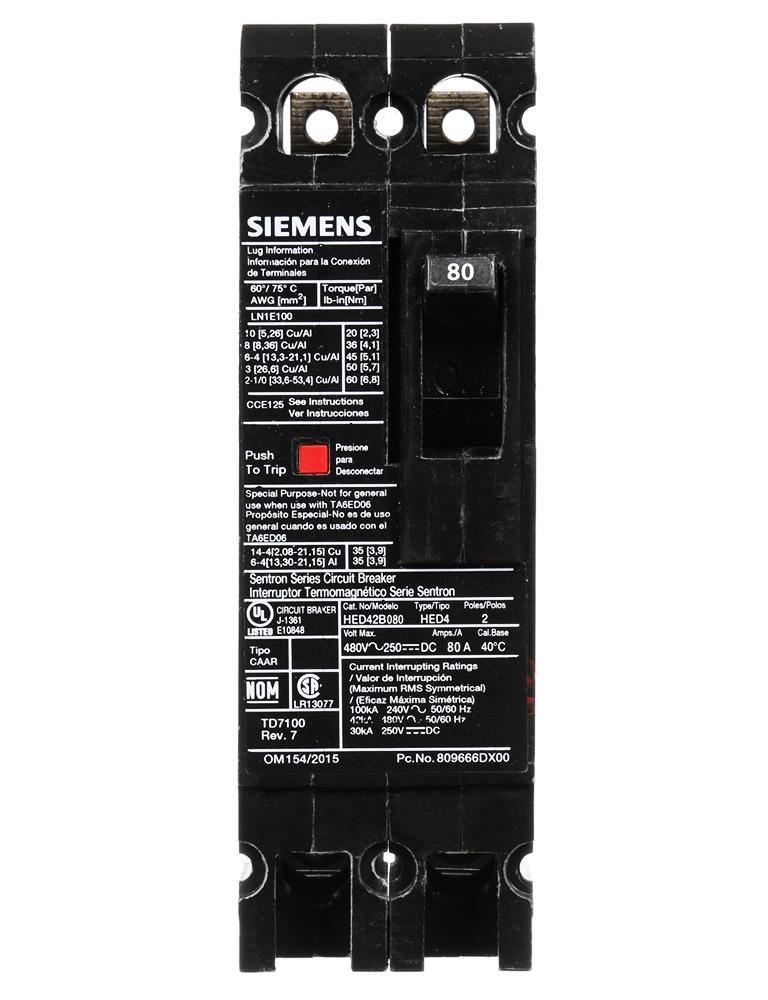

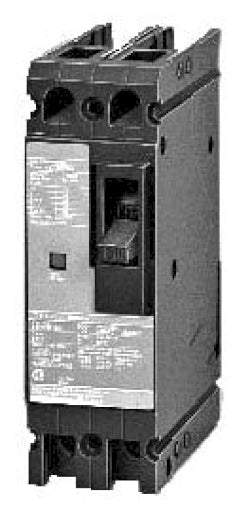

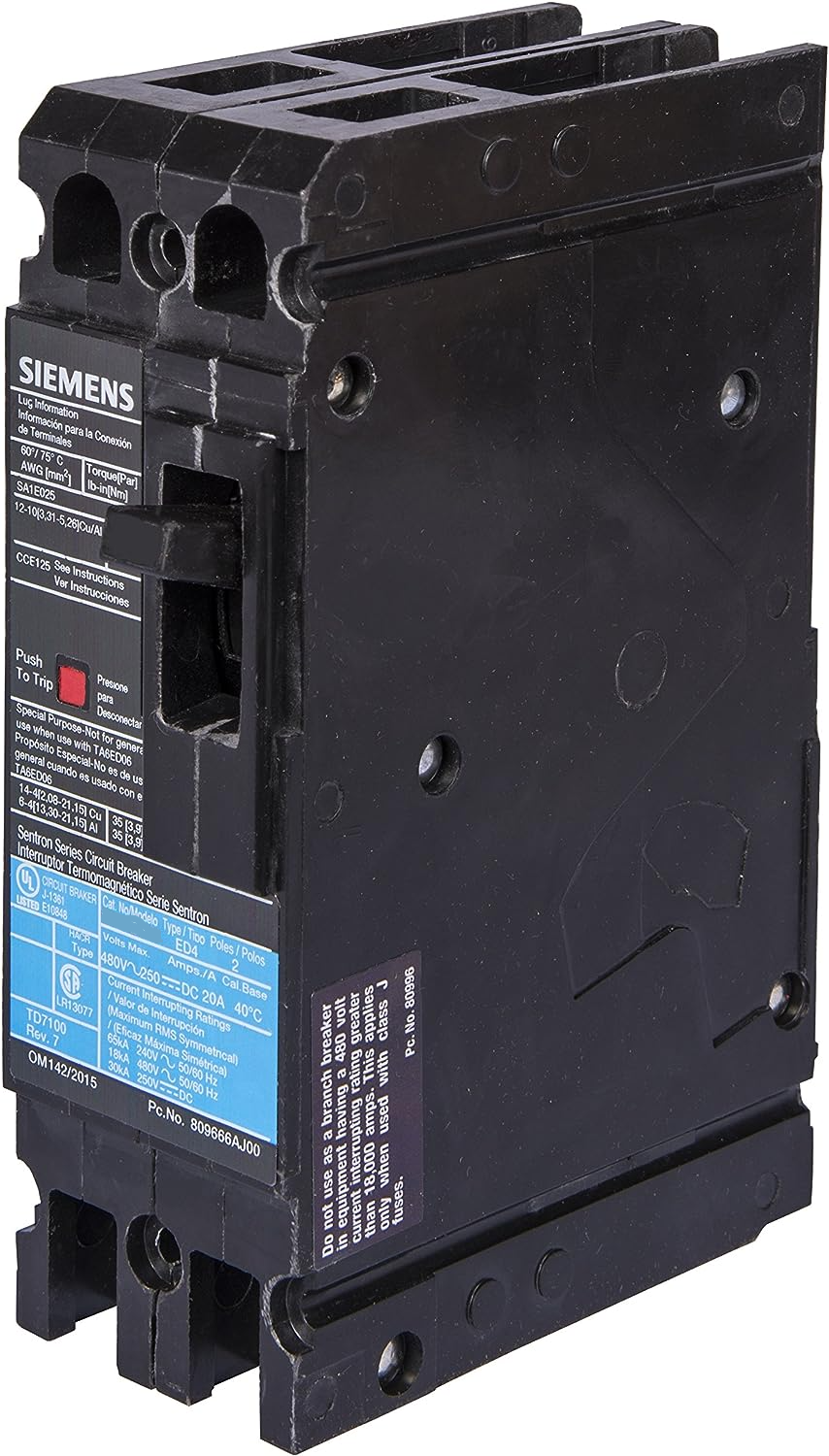

HED42B080 - Siemens 80 Amp 480 Volt 2 Pole Molded Case Circuit Breaker Sentron Series

HED42B080

HED42B080 is an 80 amp, 480 volt, 2 pole molded case circuit breaker from Siemens Sentron Series designed for reliable circuit protection.HED42B080 features thermal magnetic trip unit protection and a bolt-on mounting type for easy installation. It has a 42kA interrupting rating at 480 volts and a 125A frame size (ED). Certified to IEC 60947-2 and UL 489 standards, this breaker supports lug-in panelboard connections with load side lugs and allows phase connection in any position.

• Manufacturer: Siemens
• Series: Sentron
• Type: HED Molded Case Circuit Breaker
• Amperage: 80 Amps
• Voltage Rating: 480 Volts AC
• Poles: 2
• Interrupt Rating: 42kA at 480V
• Frame Size: 125A/ED
• Trip Unit: Thermal Magnetic
• Mounting Type: Bolt-On
• Connection: Lug In Panelboard, Load Side Lug
• Certifications: IEC 60947-2, UL 489

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HED42B080
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HED
• Voltage : 480
• Amperage : 80
• Phase : 1
• Poles : 2
• AIC rating : 42kA@480V
• Connection : Lug In Panelboard
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
• Breaker Type : High Interrupting Capacity
• Protection : Thermal Magnetic
• Phase Connection : Any

Product Data

• UPC : 783643210042
• GTIN : 00783643210042
• Country of Origin : Mexico
• Dimensions : 2 in x 6.35 in
• Weight : 2.8
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : IEC 60947-2, UL 489
• Certification : IEC 60947-2, UL 489
