HED42B060 - Siemens 60 Amp 480 Volt 2-Pole Thermal Magnetic Molded Case Circuit Breaker

HED42B060

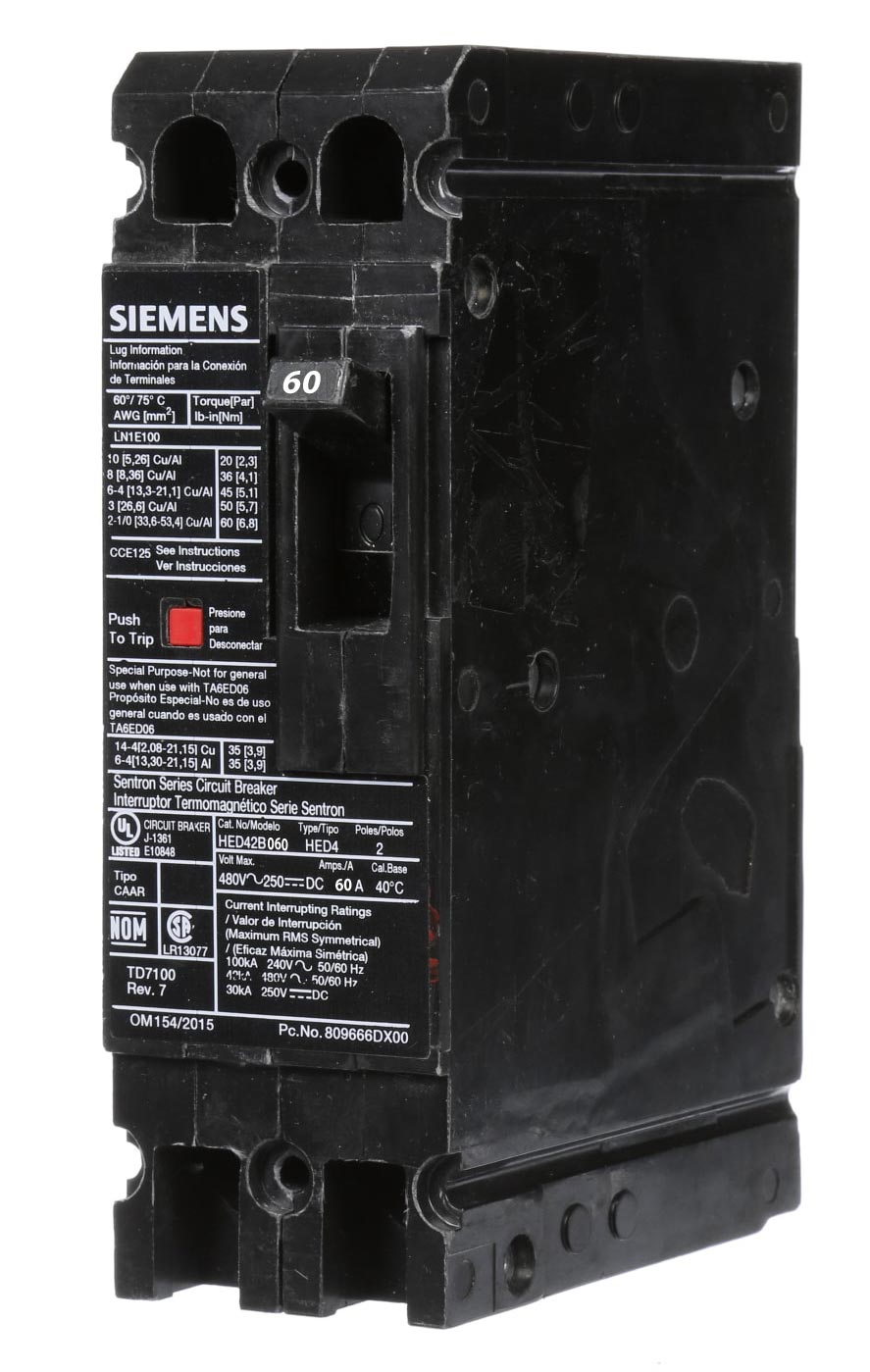

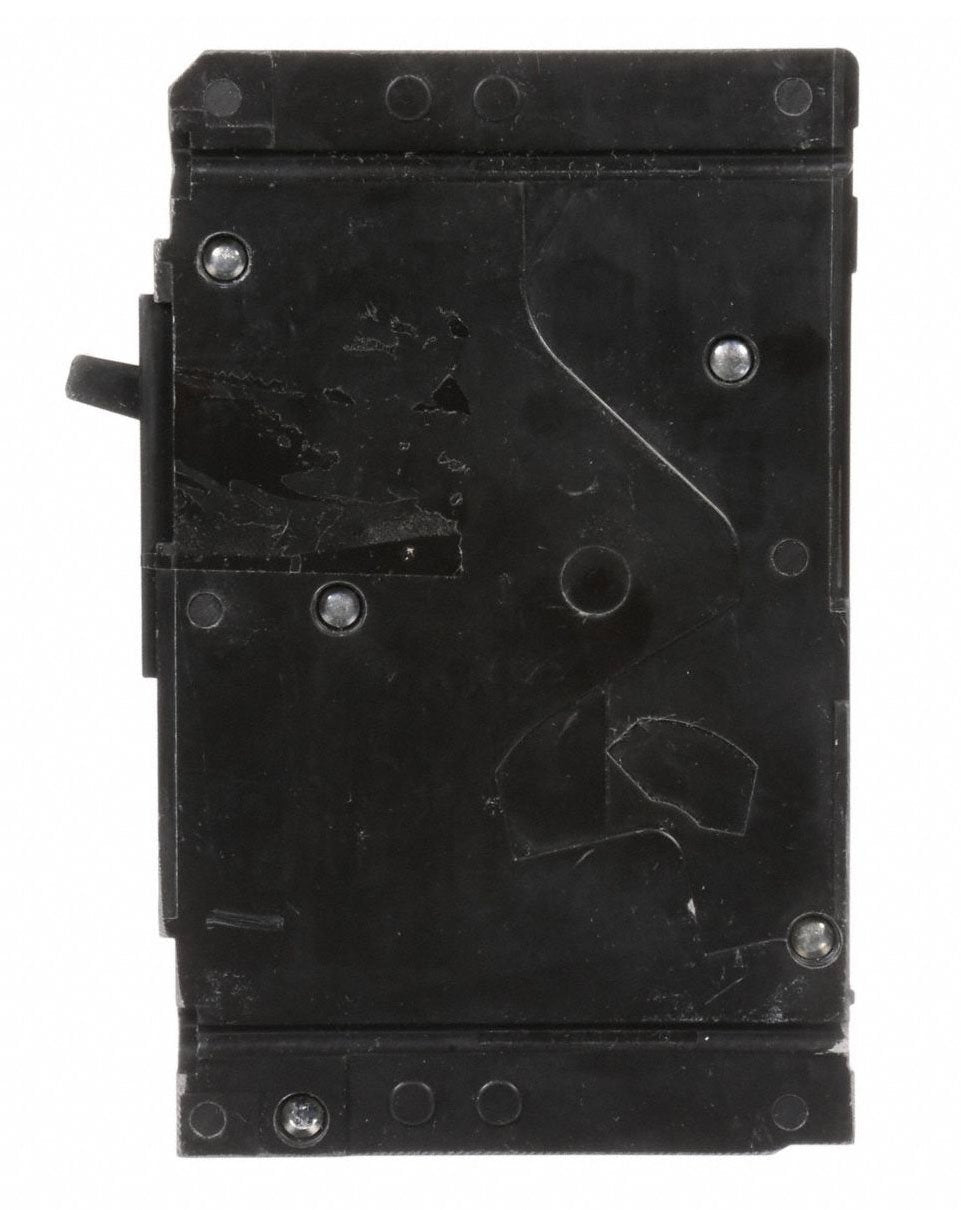

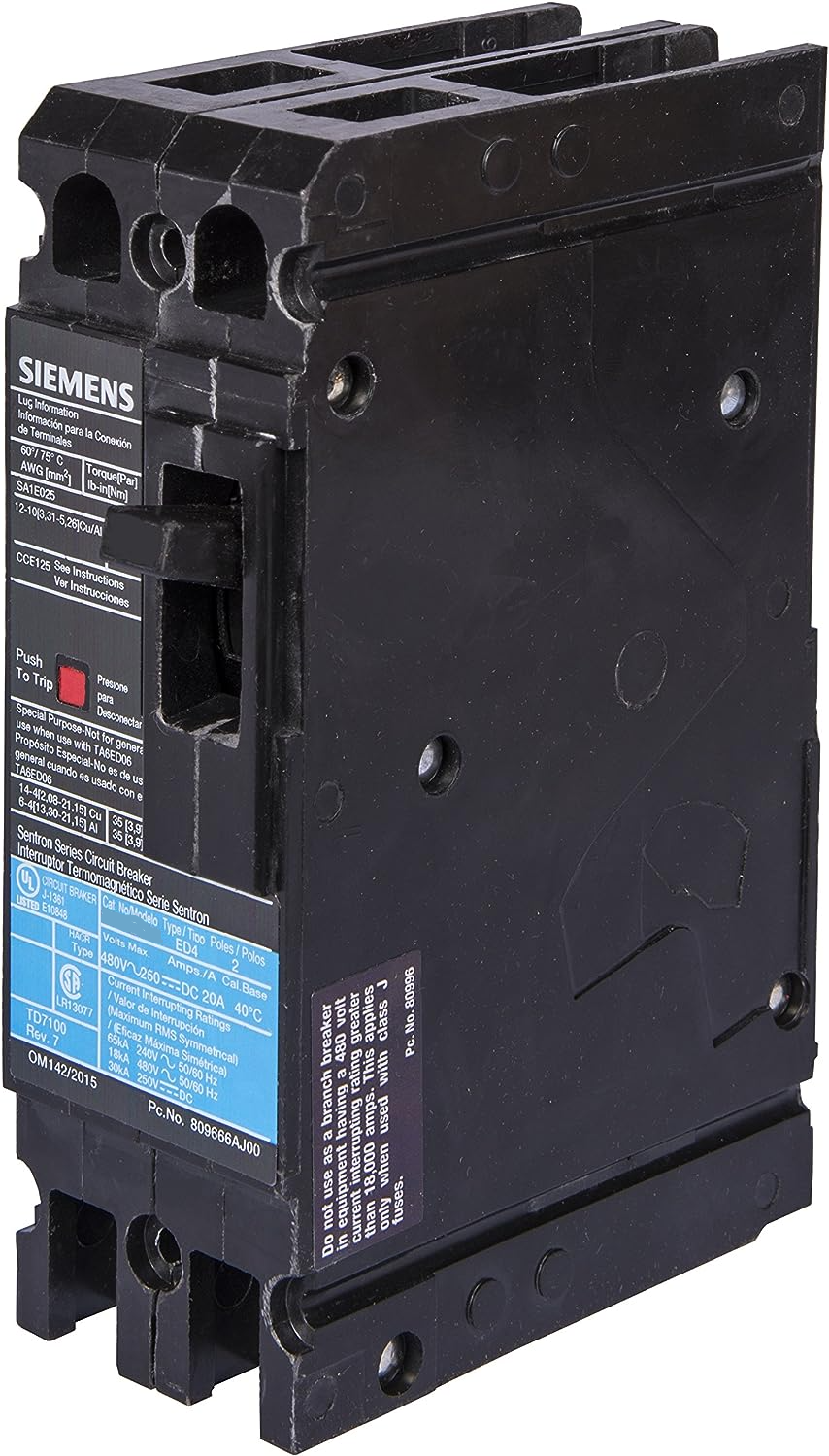

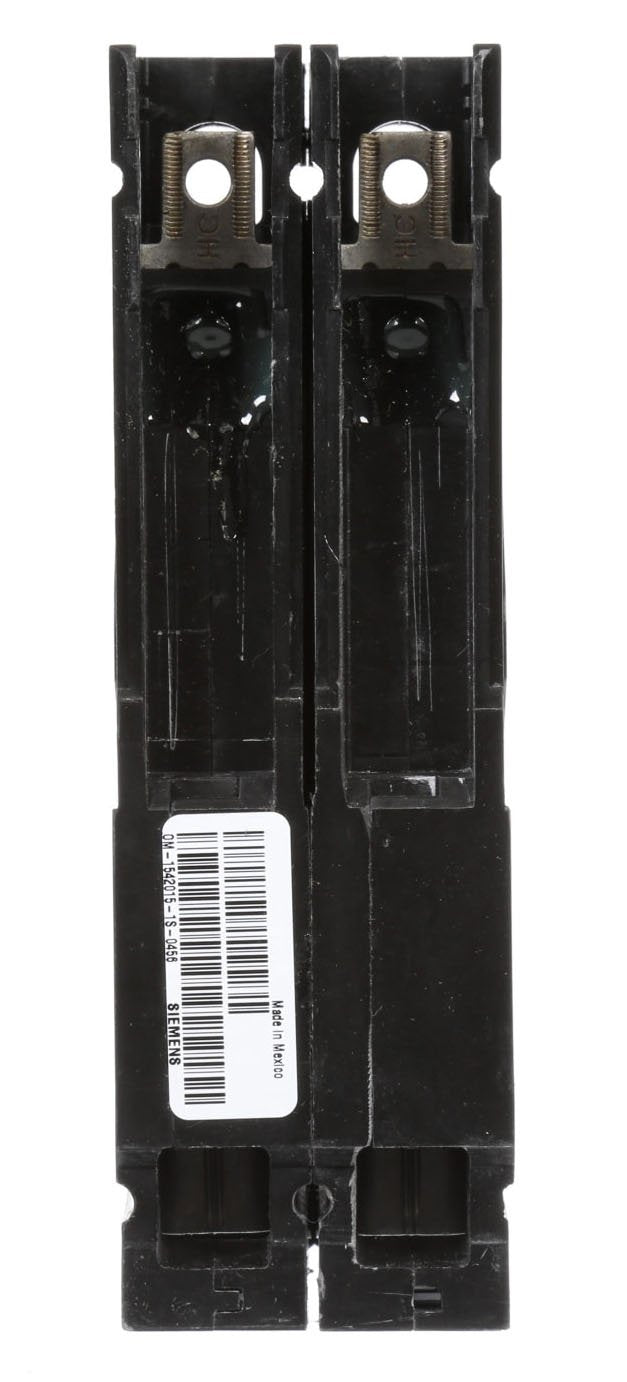

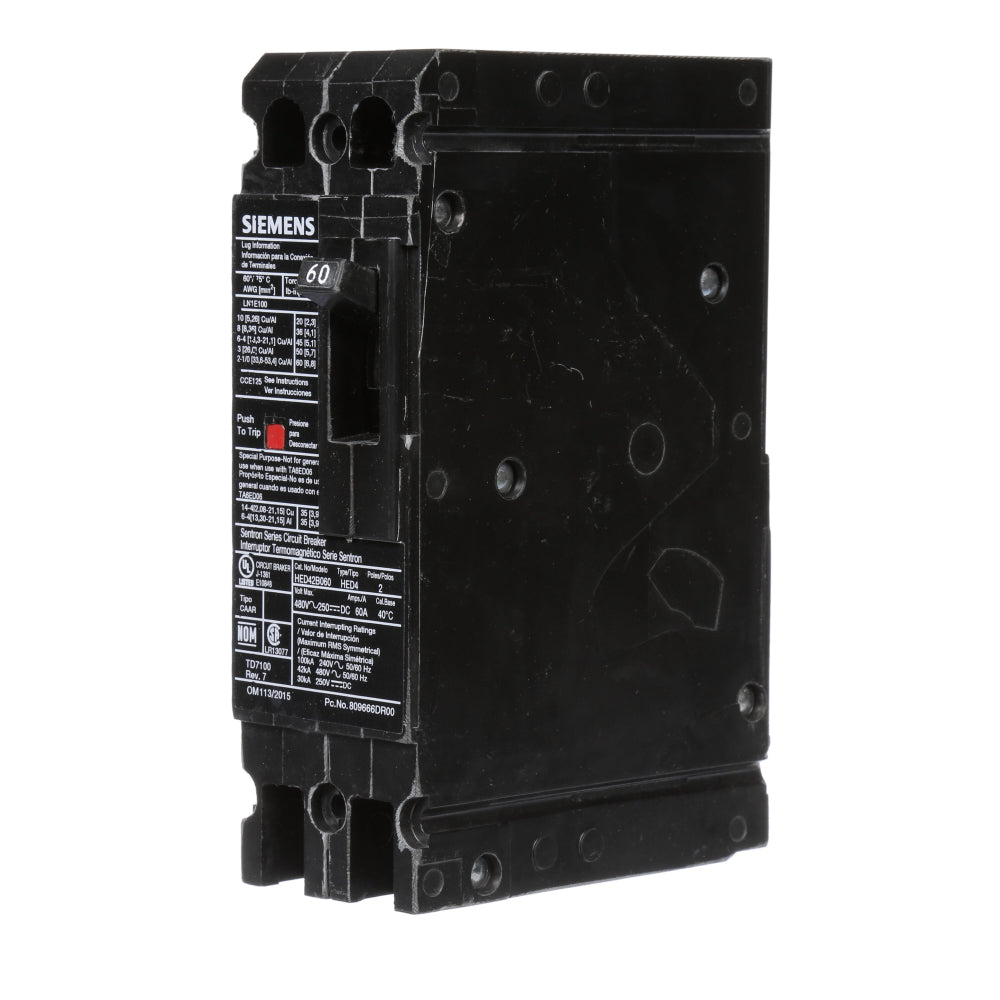

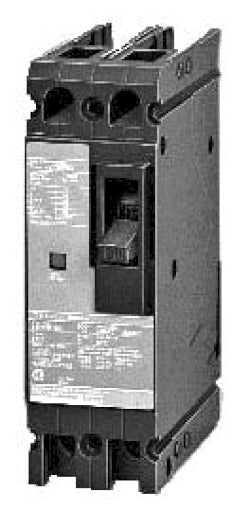

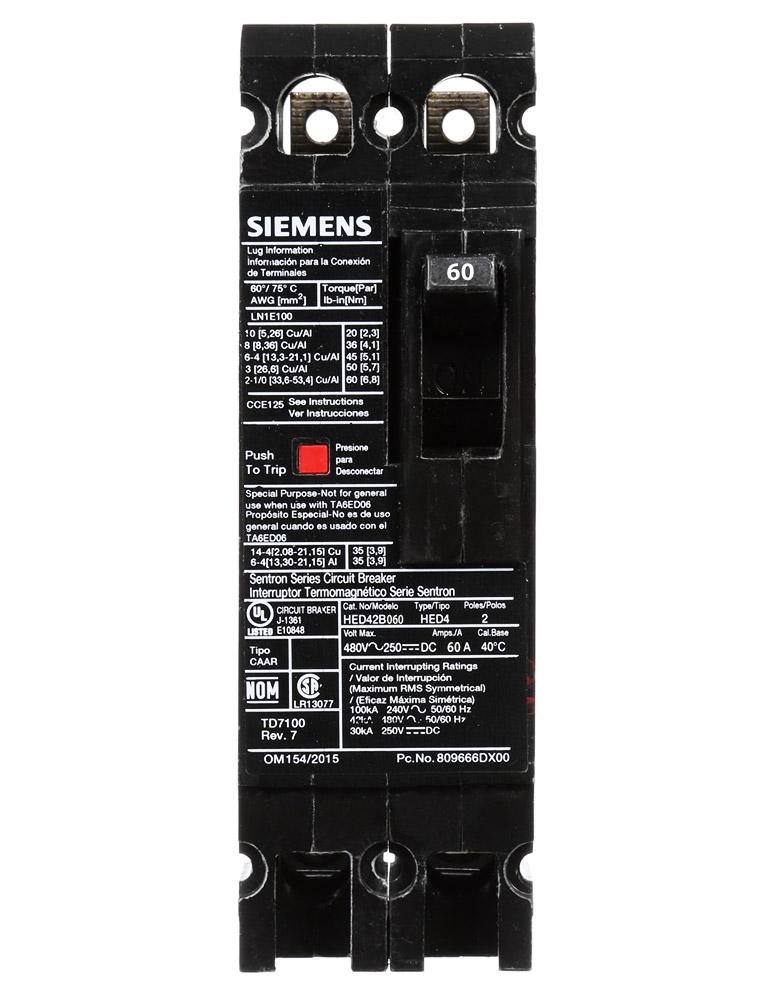

HED42B060 is a Siemens 60 Amp 2-Pole thermal magnetic molded case circuit breaker designed for reliable power distribution and protection.This Siemens HED42B060 circuit breaker features a 480 Volt rating with a 42 kA interrupting capacity at 480 VAC and 100 kA at 240 VAC. It is part of the HED4 series with a standard ED frame, suitable for flush mounting in NEMA Type 1 enclosures. The breaker has a non-interchangeable trip unit and is rated for operation at 40 degrees Celsius.

Key Specifications
• Amperage: 60 Amps
• Voltage: 480 VAC
• Poles: 2
• Interrupting Rating: 42 kA at 480 VAC, 100 kA at 240 VAC
• Trip Unit: Thermal Magnetic, Non-Interchangeable
• Series/Frame: HED4, ED Frame
• Mounting Type: Flush Mount, NEMA Type 1 Enclosure
• Operating Temperature: 40°C
• Manufacturer: Siemens
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HED42B060
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HED
• Voltage : 480
• Amperage : 60
• Phase : 1
• Poles : 2
• AIC rating : 42kA@480V
• Connection : Lug In Panelboard
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
• Breaker Type : High Interrupting Capacity
• Protection : Thermal Magnetic
• Phase Connection : Any



Product Data

• UPC : 783643210028
• GTIN : 00783643210028
• Country of Origin : Mexico
• Dimensions : 2 in x 6.34 in
• Weight : 2.8
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
• Certification : HACR Rated, UL Listed
